Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

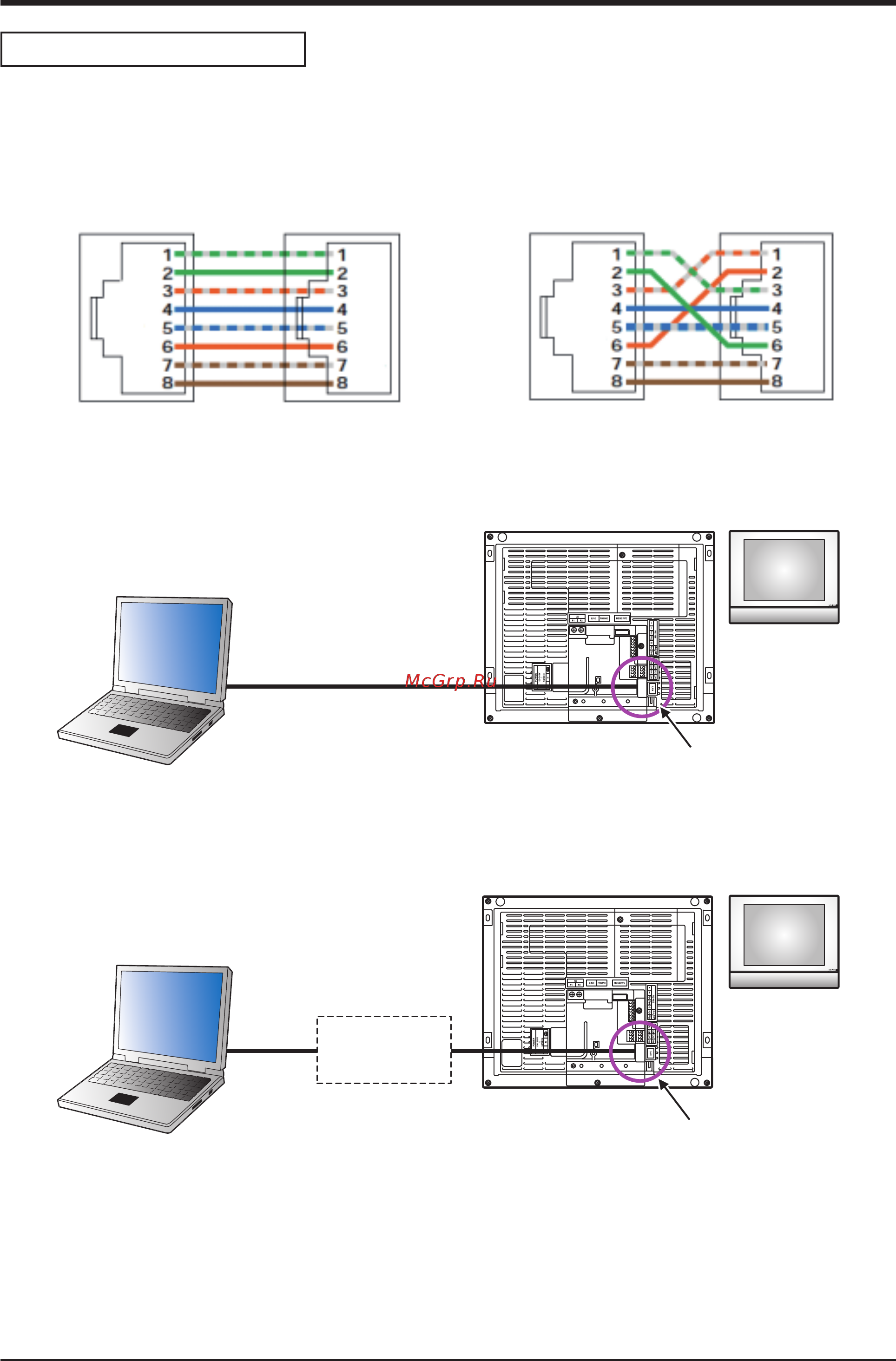

Connecting the PC and iTM

Connect the PC and iTM unit into a network using an Ethernet cable.

Ethernet cables use for connecting networks come in two types: straight and cross. Connect the PC

and iTM unit by referring to the connection diagrams below.

Straight cable connection diagram Cross cable connection diagram

When connecting the PC and iTM directly:

Use a 100Base-TX or higher Ethernet cross cable.

Ethernet (Cross cable)

iTM

ETHERNET

100BASE-TX

When connecting the PC and iTM via a hub:

Use a 100Base-TX or higher Ethernet straight cable.

Ethernet

(Straight cable)

iTM

Hub

ETHERNET

100BASE-TX
