Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
33
Registering management points using a CSV le
1. Outputting a CSV le
The current settings data can be output to a CSV file for editing the management point data
using a computer software or the Pre-engineering tool. The CSV file can be edited using
“Microsoft Excel” and the like.
Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7).

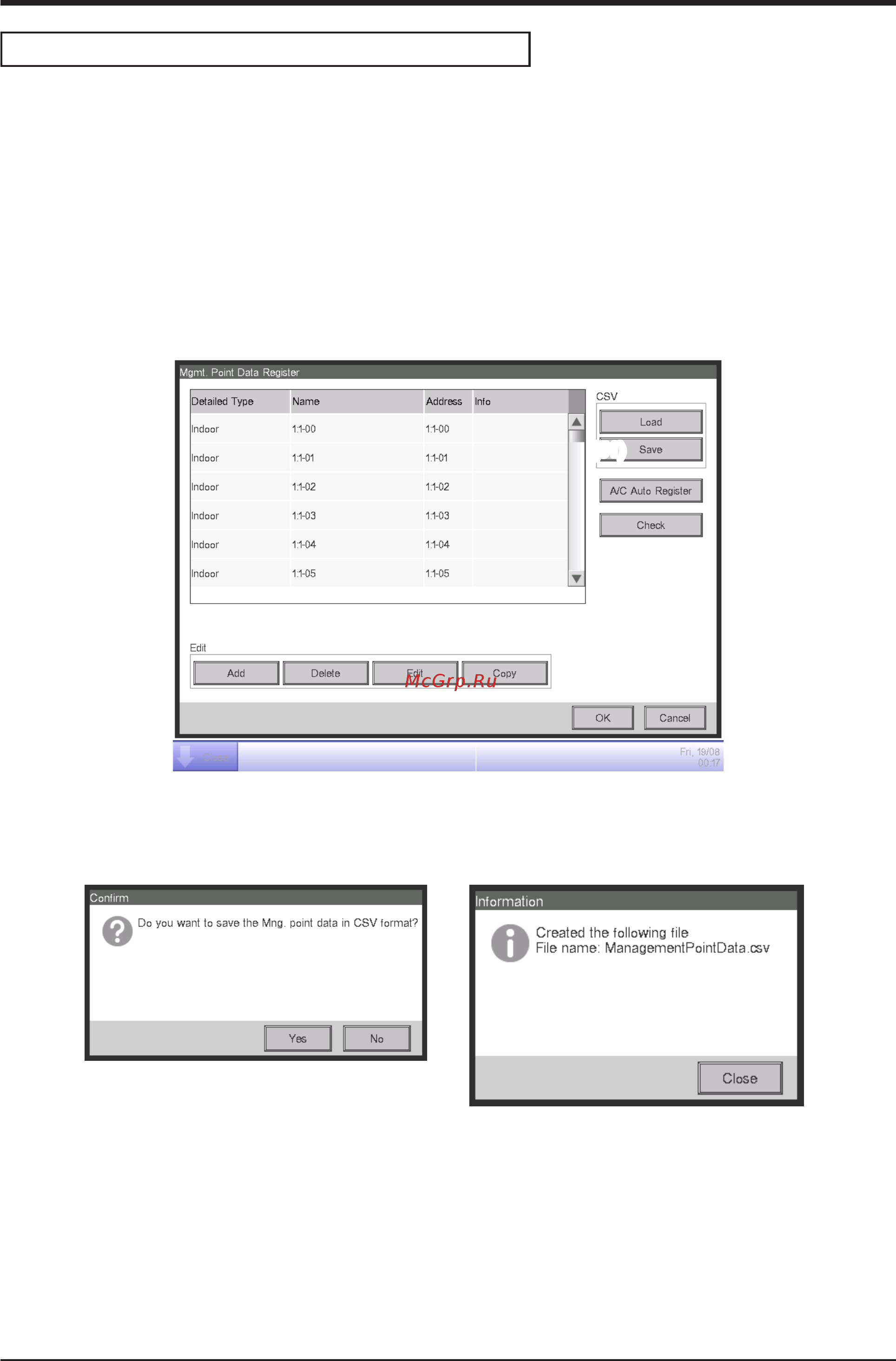

Touch the Mgmt. Point Data Register button on the Service Settings tab to display the main
Mgmt. Point Data Register screen.
(51)
Connect a USB memory to the iTM unit and touch the Save button (51).
Touch the Yes button on the Conrm dialog that appears. Saving to the USB memory starts.
Saving is complete when a save completion dialog appears. Touch the Close button to return to
the main Mgmt. Point Data Register screen.
