Daikin RXY32MY1 [73/125] Running leakage check by schedule control

Daikin RXYQ8P7Y1K [73/125] Running leakage check by schedule control

Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

4. (3) is the Registered Indoor Unit list.

(4) is the Unregistered Indoor Unit list. Select the indoor unit you want to register and touch the

Add button to register. To unregister, select the indoor unit from (3) and touch the Remove button

to move it to (4). The indoor unit becomes unregistered.

Touch the OK button to commit the indoor unit registration and close the screen.

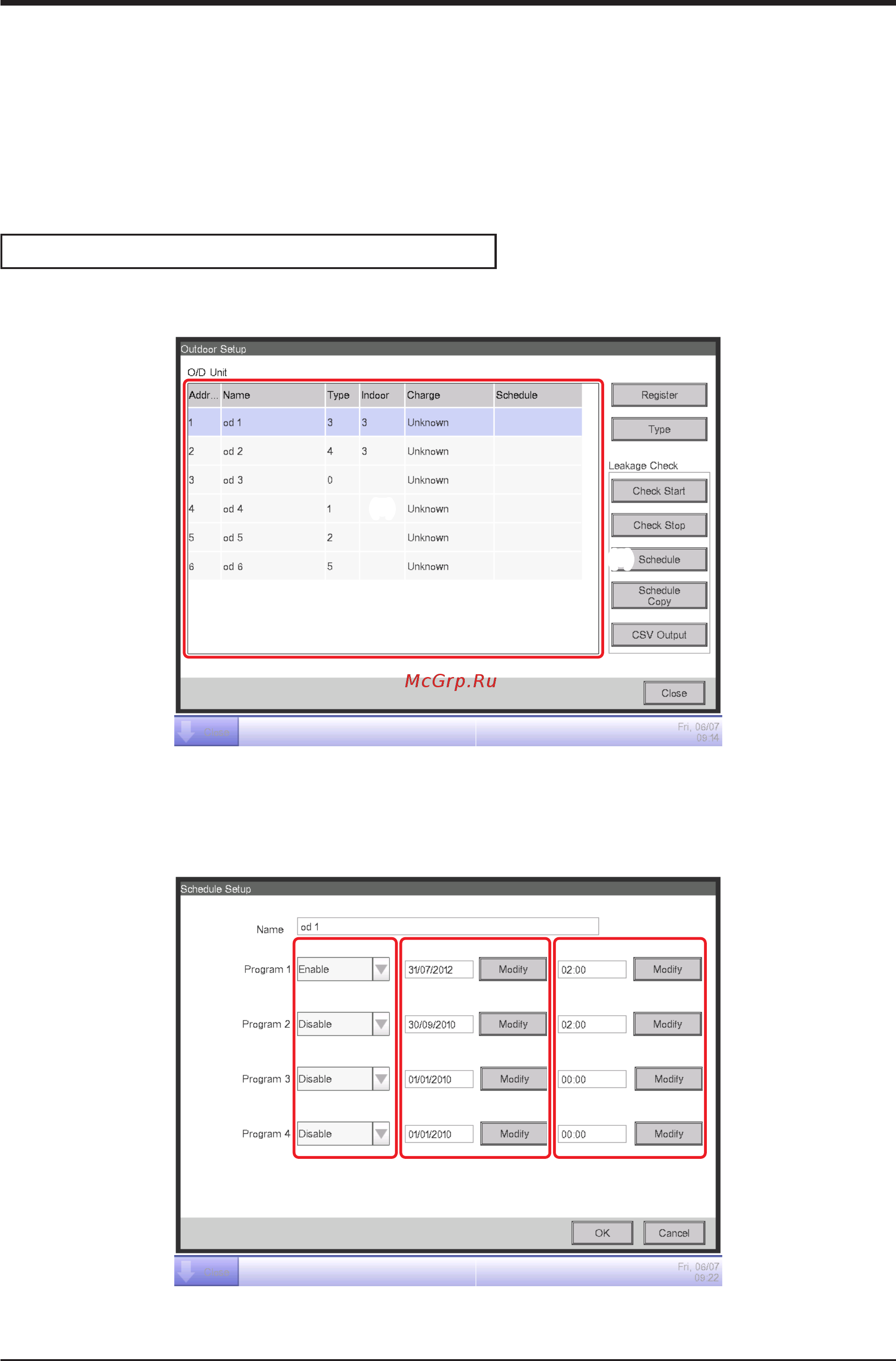

Running Leakage Check by Schedule Control

Set up a schedule program to run Leakage Check.

(5)

(6)

1. Select an outdoor unit from the Outdoor Unit list (5) and touch the Schedule button (6) to

display the Schedule Setup screen.

(7)

(8) (9) (10)
