Руководство по вводу в эксплуатацию Страница: 50

Daikin RXY32MY1 [50/125] Screen of demo version for pc

Daikin RXQ18MAY1 [50/125] Screen of demo version for pc

Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

Clicking the OK button on the conrmation dialog box deletes all folders and les within the

folder.

NOTE

(6)

Main screen

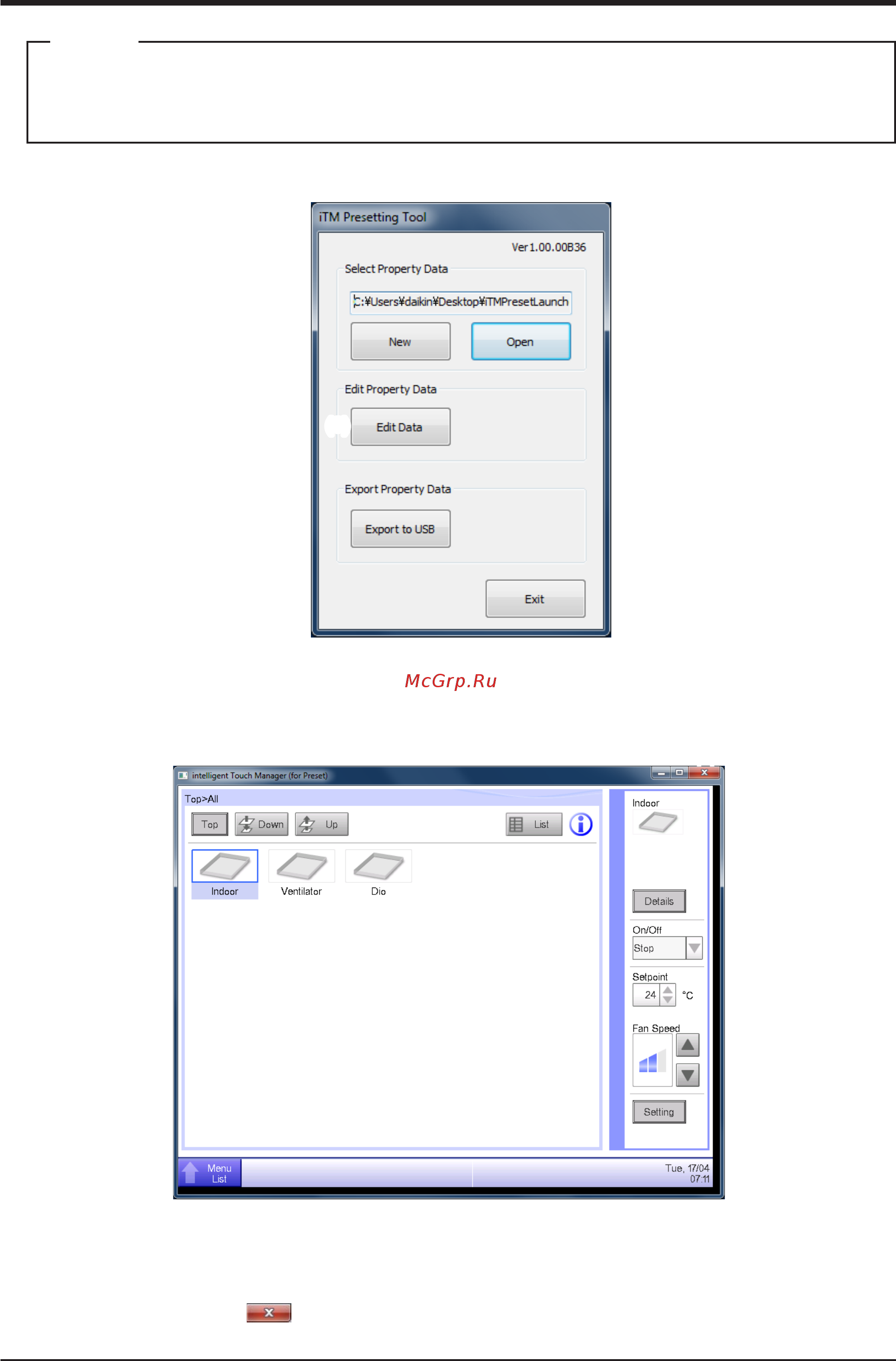

3. Click the Edit Data button (6) to start up the iTM demo version for PC.

(7)

Screen of demo version for PC

The demo version for PC allows you to make similar settings as with the iTM unit. Make settings

as required.

When nished, click the button (7) and return to the Pre-engineering tool main screen.
