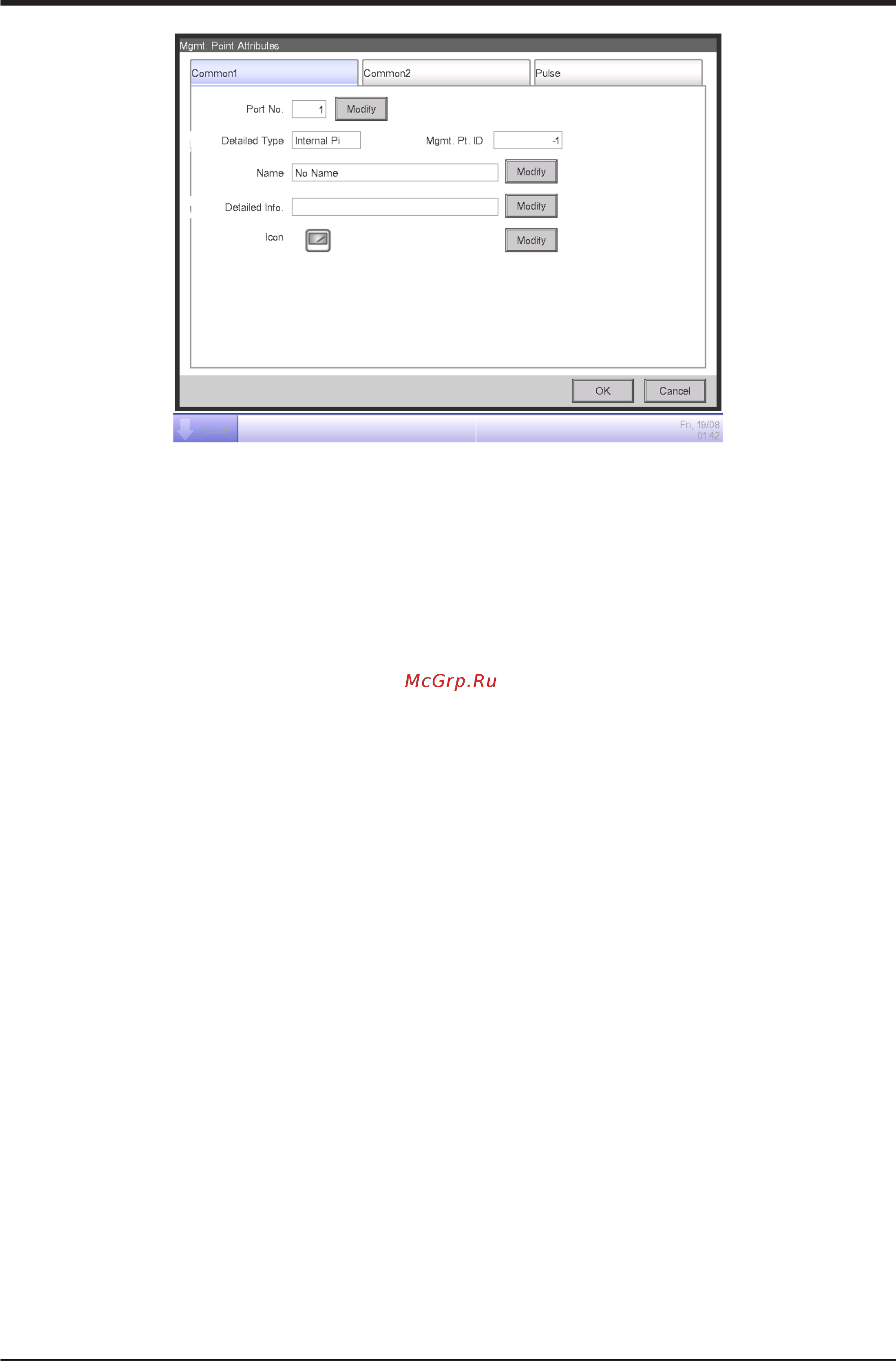

(15) Port No. text eld, Address combo box

Sets up the port number and address to which the management point belongs.

For the port number, touch the Modify button and enter it in the Numerical Input dialog that

appears.

For the address, select it using the combo box.

Duplicated addresses cannot be registered. All addresses must be different.
