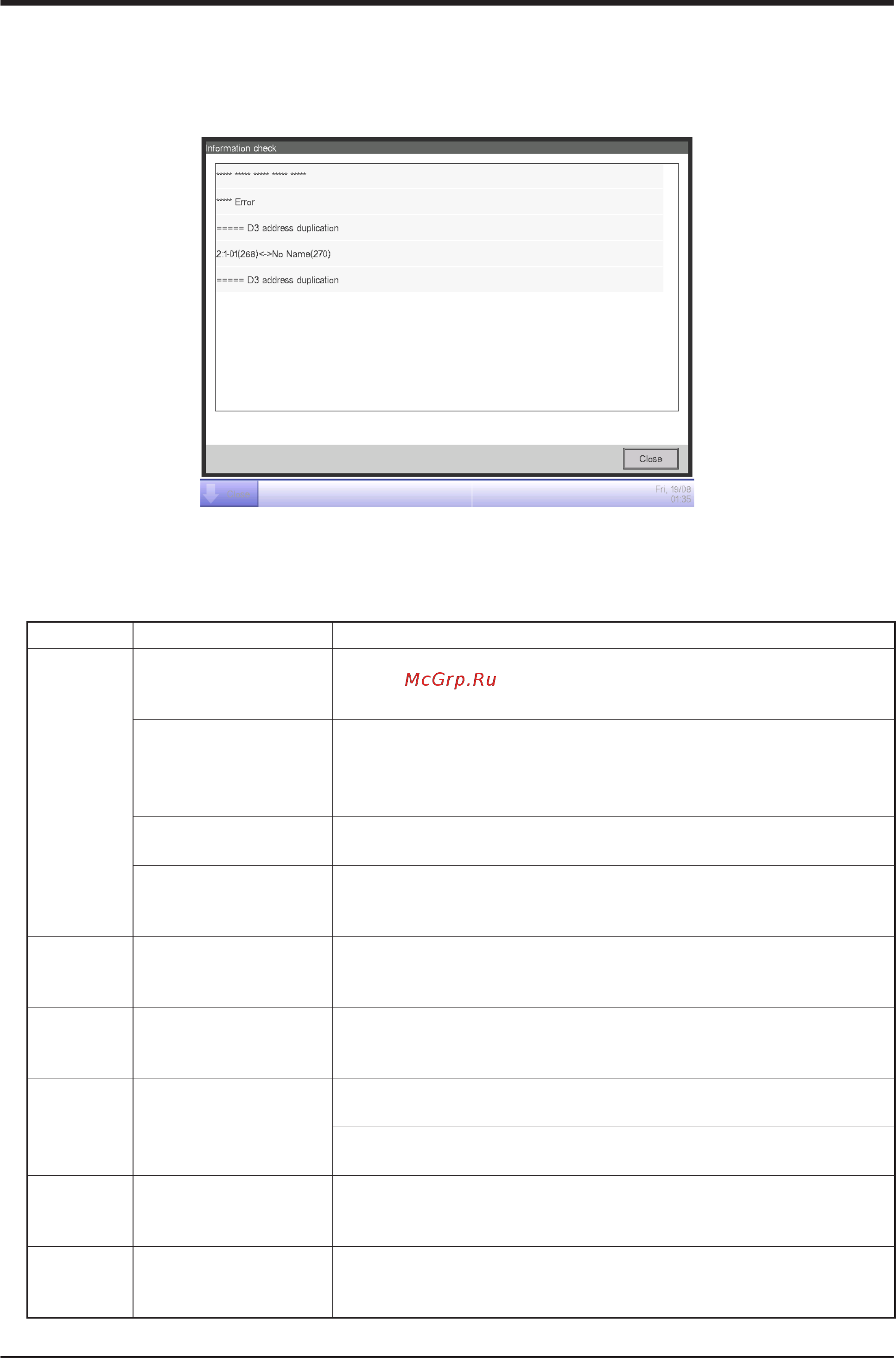

Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
19
5. Checking the setting results
Touching the Check button (13) checks the content of the current settings data and displays the
check results on the Information check screen.
If an error is found, discards the edited content retained until then and restores the saved original data.
“No error” is displayed if no error is found. Touch the Close button to close the screen.
Check items list
Classication
Check item Message
Common
Duplicated
management point
names
===== Mng. point name duplication
[Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID])
===== Mng. point name duplication
Excess of total number of
other management points
Mgmt. points exceeded (Other)
Excess of number of
chiller management points
Chiller Mgmt. Pnt
Excess of number of
outdoor management points
Outdoor Unit Mgmt. points exceeded
Excess of total number
of Internal Pi
management points
Internal Pi Mgmt. point exceeded
DIII
Duplicated D3
addresses
===== D3 address duplication
[Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID])
===== D3 address duplication
Di, Pi
Duplicated port
numbers
===== Di/Pi address duplication
[Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID])
===== Di/Pi address duplication
Internal Ai
Ai reference
management point
error
Ai:[Management point name]([Management point ID]):
The reference Mng. point is inaccurate
Ai:[Management point name]([Management point ID]):
Analog type error [Invalid]
Internal Pi
Duplicated port
numbers
===== Internal Pi address duplication
[Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID])
===== Internal Pi address duplication
BACnet Duplicated object IDs
===== Duplicate object IDs
[Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID])
===== Duplicate object IDs
