Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

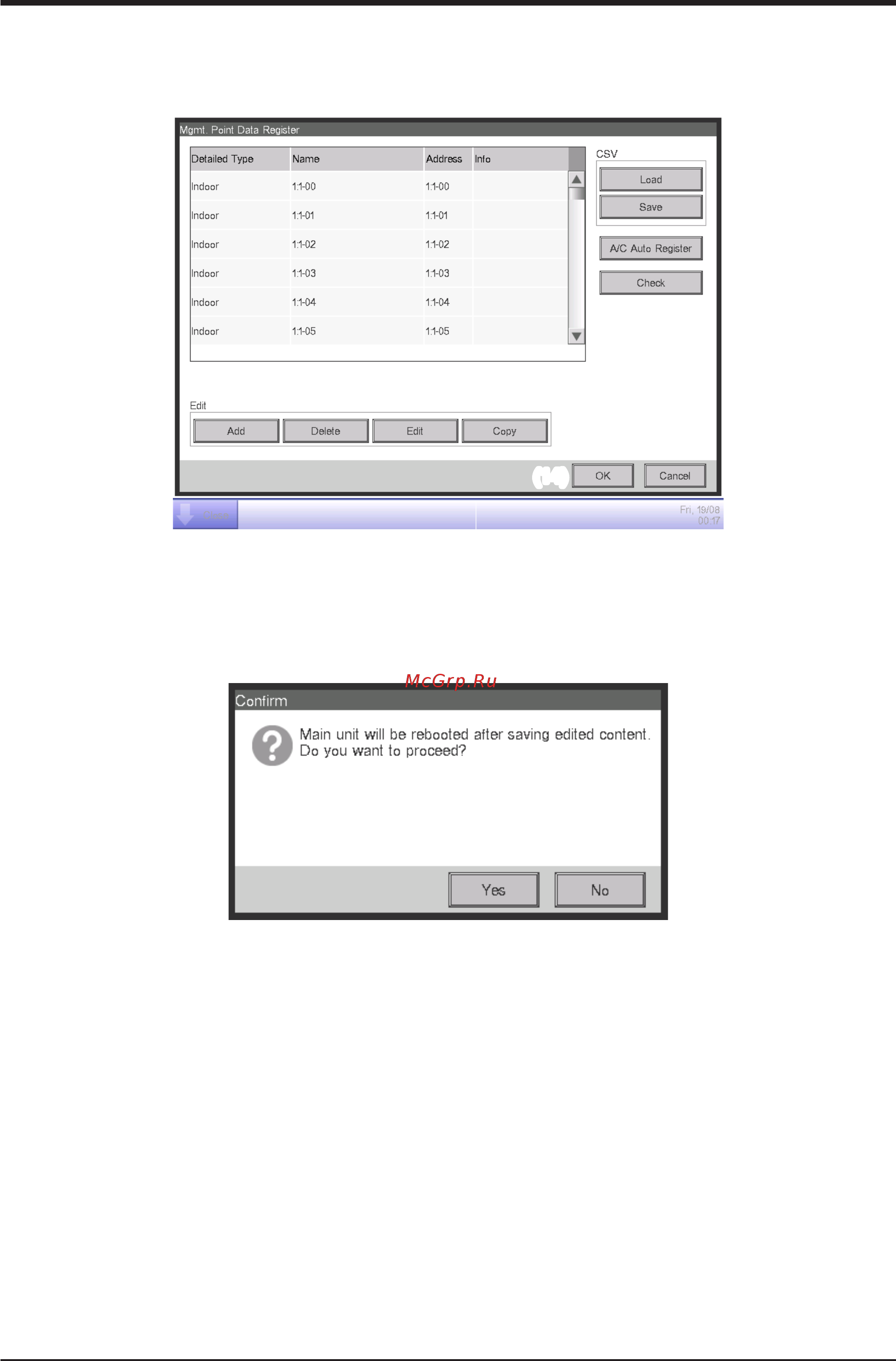

6. Restarting iTM

Restart iTM to reect the settings.

(14)

When finished, touch the OK button (14). A settings data check is carried out and the

Information check screen displayed if errors are found. If no problems are found, the dialog

below appears.

Touching the Yes button after conrming restarts the iTM unit.
