Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
55
Scenario 4: Implementation of new functions due to existing property’s upgrade
When implementing new functions to an existing property, the upgraded Pre-engineering tool is
used to create the functions’ settings data.
1. Back up the system le data as well as settings data, MAC addresses, etc. on the iTM unit to a
USB memory. (For details, see 4-9 Backup)
2. Copy data backed up in the USB memory (folder name: Backup_MAC address_year month day_
hour minute second) to a PC. Start up the newly acquired upgraded Pre-engineering tool and
display its main screen. (For details, see page 46)
3. Edit the settings data using the upgraded Pre-engineering tool.
The steps up to the output of the edited data to USB and iTM restore are the same as steps 4
and 5 of the procedure for Scenario 1: Installation to new property.
4-8 Upgrade
Upgrade includes system le installation for a new property or new function implementation to an
existing property. (When using the Pre-engineering tool, see 4-7 Pre-engineering)
When installing a new iTM, be sure to install the updater program during the preparation.
NOTE
Download procedure

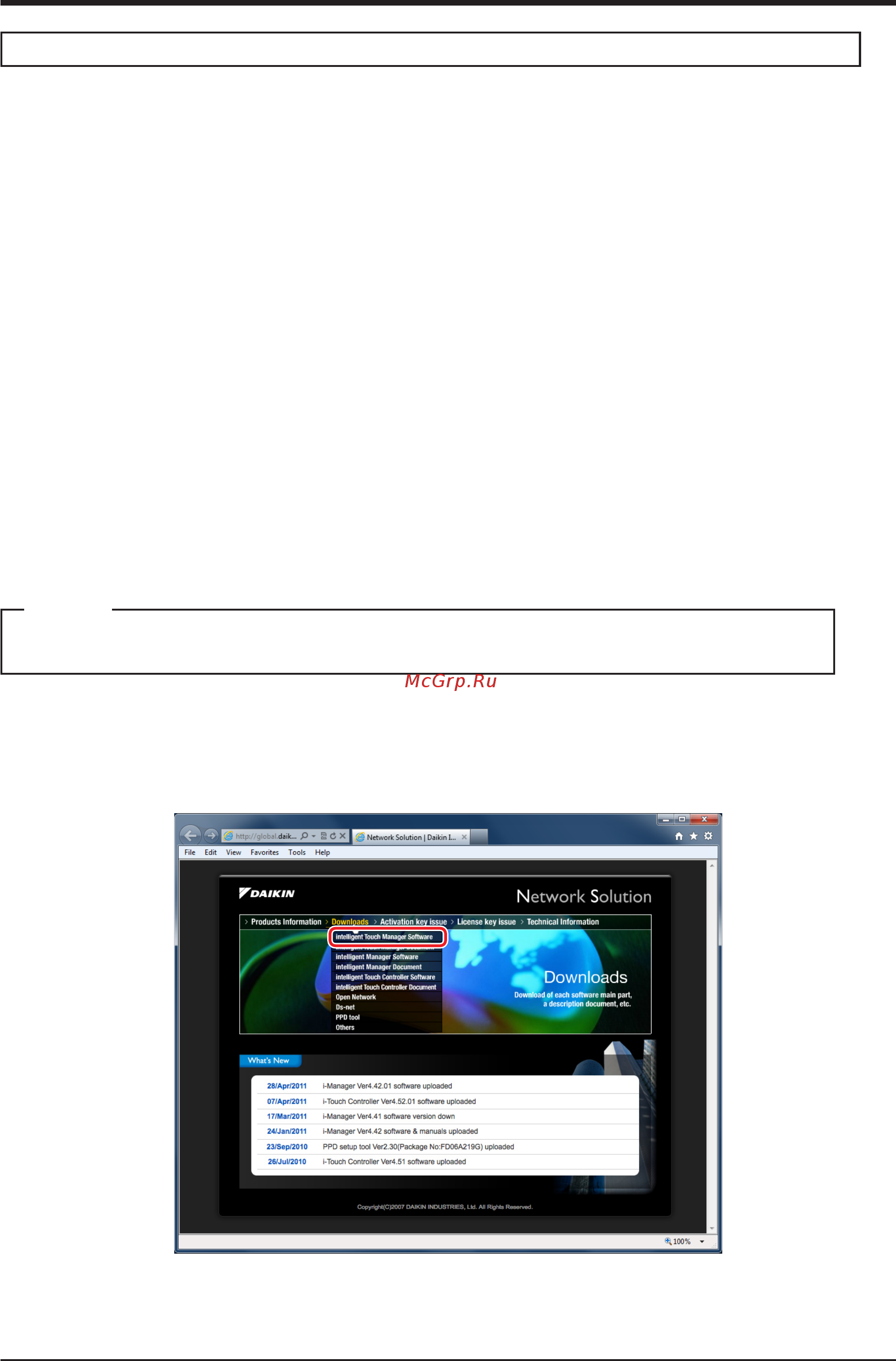

1. From your PC, access the Network Solution page of the Distributor’s Page. Then, download and
save the updater program onto the USB memory.
2. Insert the USB memory with the updater program into iTM and install. For the installation
procedure, see 4-10 Installation.
