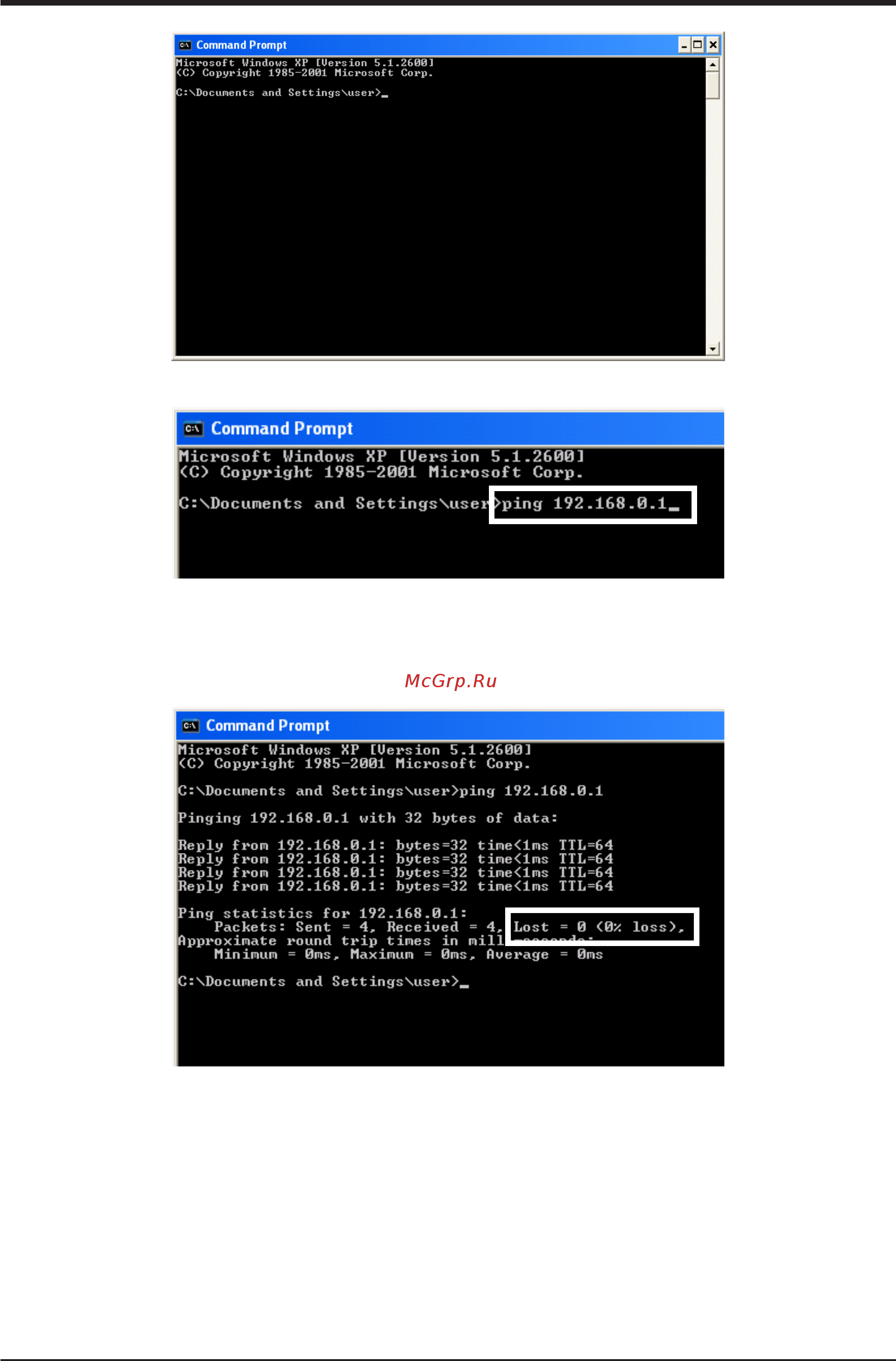

2. The command prompt starts up. Type “ping” followed by one single byte space and then the iTM

IP address, and press the Enter key. (In this example, the IP address is 192.168.0.1)
