Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
56
4-9 Backup
When modifying settings data due to equipment renovation in an existing property or upgrade, the
iTM unit data must be backed up to a USB memory as history and settings data reference for
troubleshooting and the like.
Data to be backed up is as follows.
• iTM system le
• Settings data of each function
• Automatically accumulated data such as Energy Navigator’s time tone, trend data, and history
data
• MAC addresses
All iTM functions run normally even during backup. However, operation from the iTM unit’s
screen is restricted during backup.
NOTE
The following describes how to create a backup.

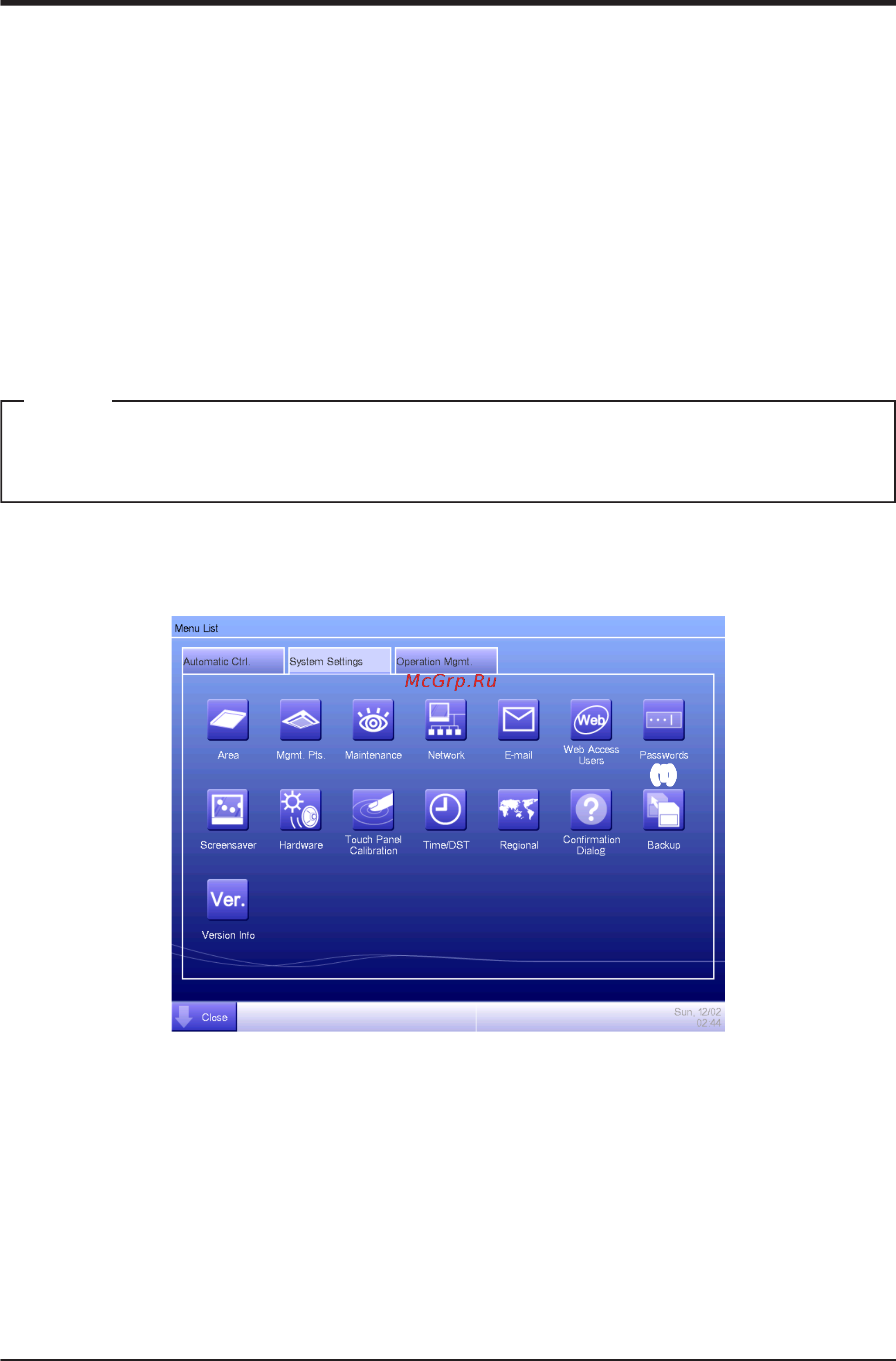

1. Display the System Settings tab of the Menu List screen (see page 12).
(1)
