Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

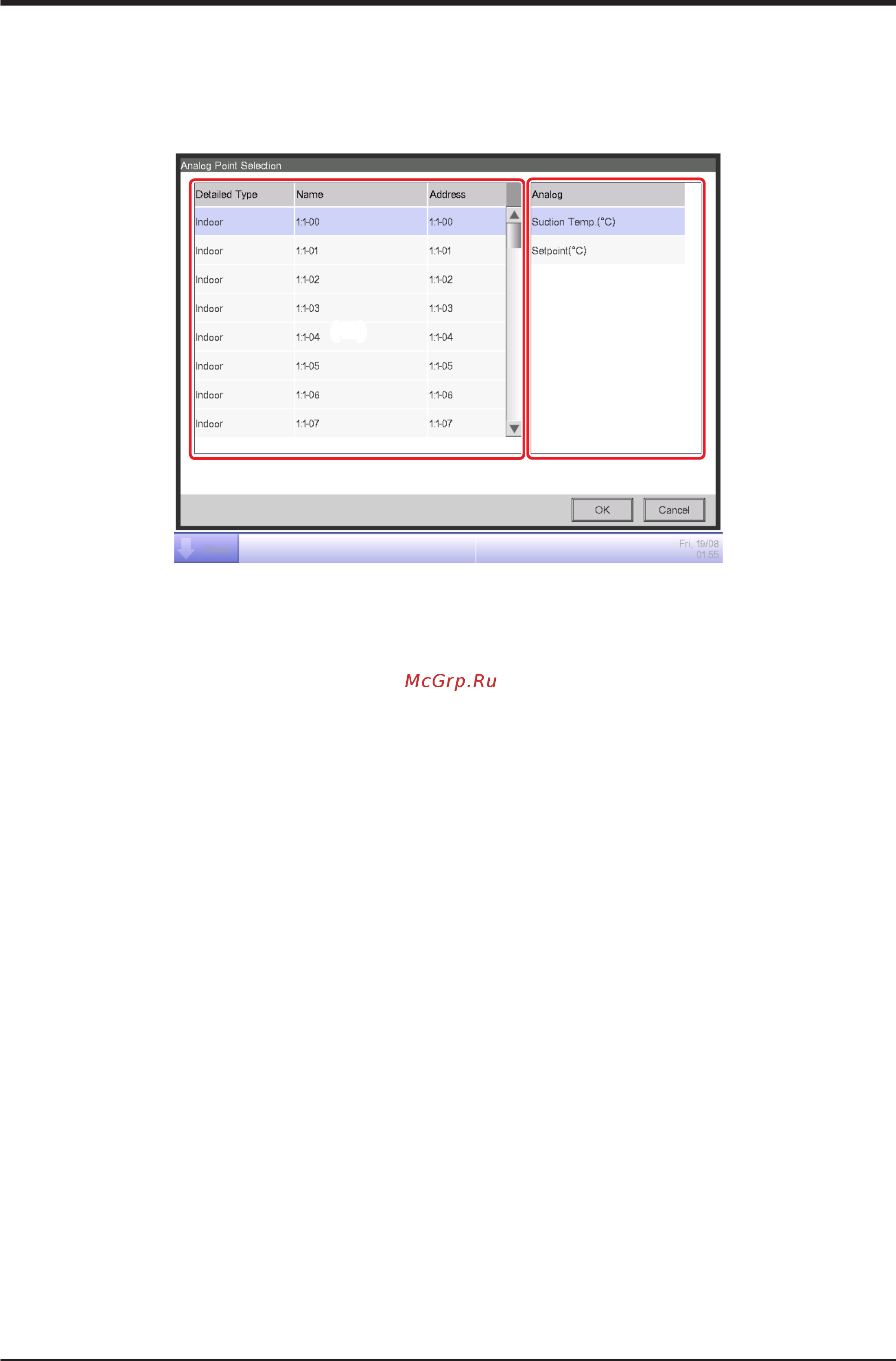

• Analog Point Selection Screen

Sets up the reference for the Internal Ai. Touch the Ref.. button on the Analog2 tab to display the

Analog Point Selection screen.

(49)

(50)

(49) is the list of management points with analog value.

(50) is the list of analog values that applicable to the Internal Ai of the selected management

point.
