Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
15

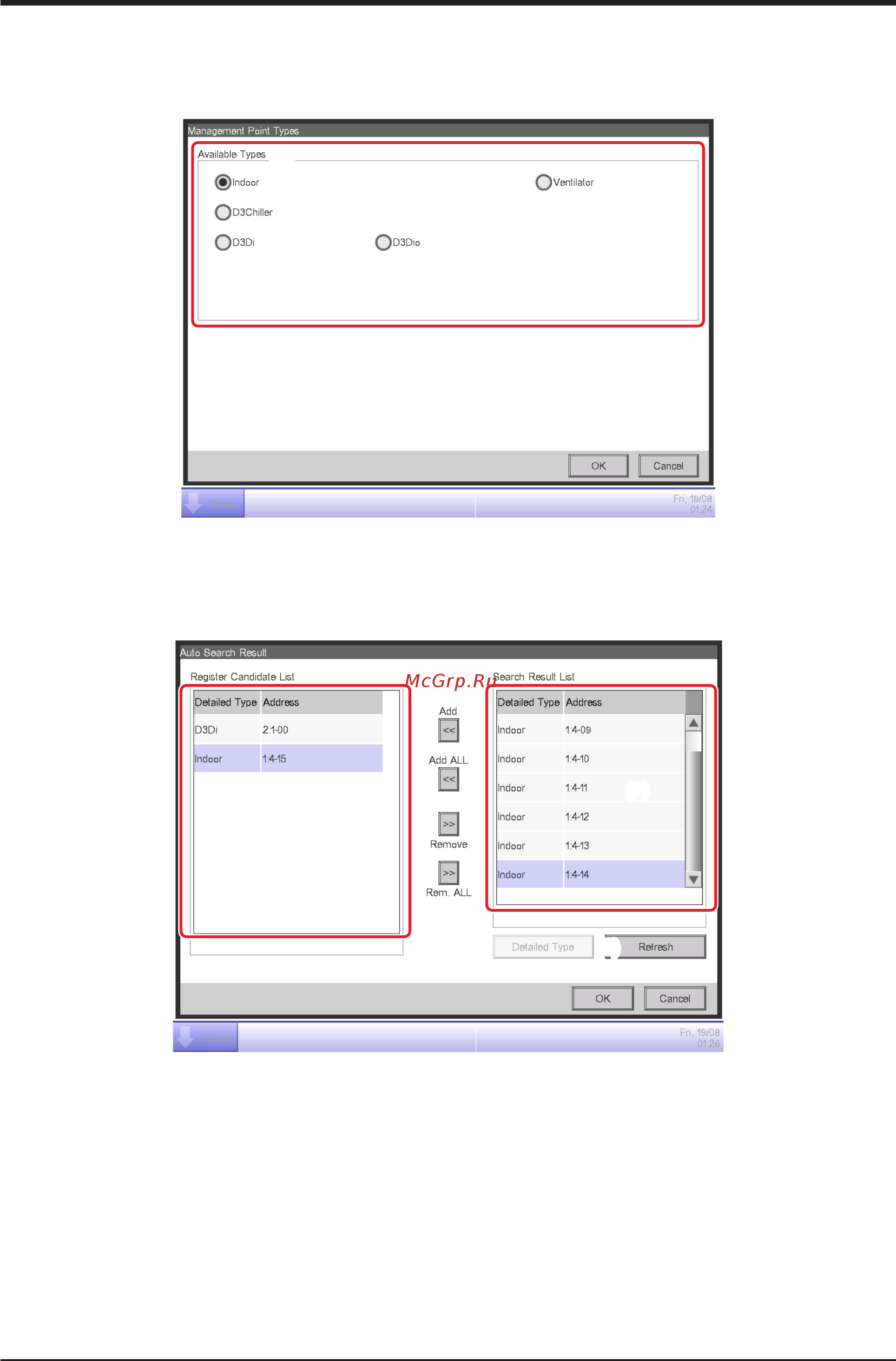

For management points whose Detailed Type is unknown, you can select the management point
and display the Management Point Types screen by touching the Detailed Type button (4).
(5)
Using the radio buttons (5), select the management point type. Touch the OK button to save and
return to the Auto Search Result screen for air conditioners.
(7)
(8)
(6)
Touching the Refresh button (6) updates the Search Result List (7) to its most recent status.
Selecting a management point to register and touching the Add button adds it to the Register
Candidate List (8). To register all management points listed in (7), touch the Add ALL button.
To delete a management point from the Register Candidate List (8), select it and touch the
Remove button. The management point moves to (7) and is deleted from the list of candidates
that can be registered. Touching the Rem. ALL button deletes all of the candidates that can be
registered.
