Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

119

6. When nished, touch the OK button to close the screen.

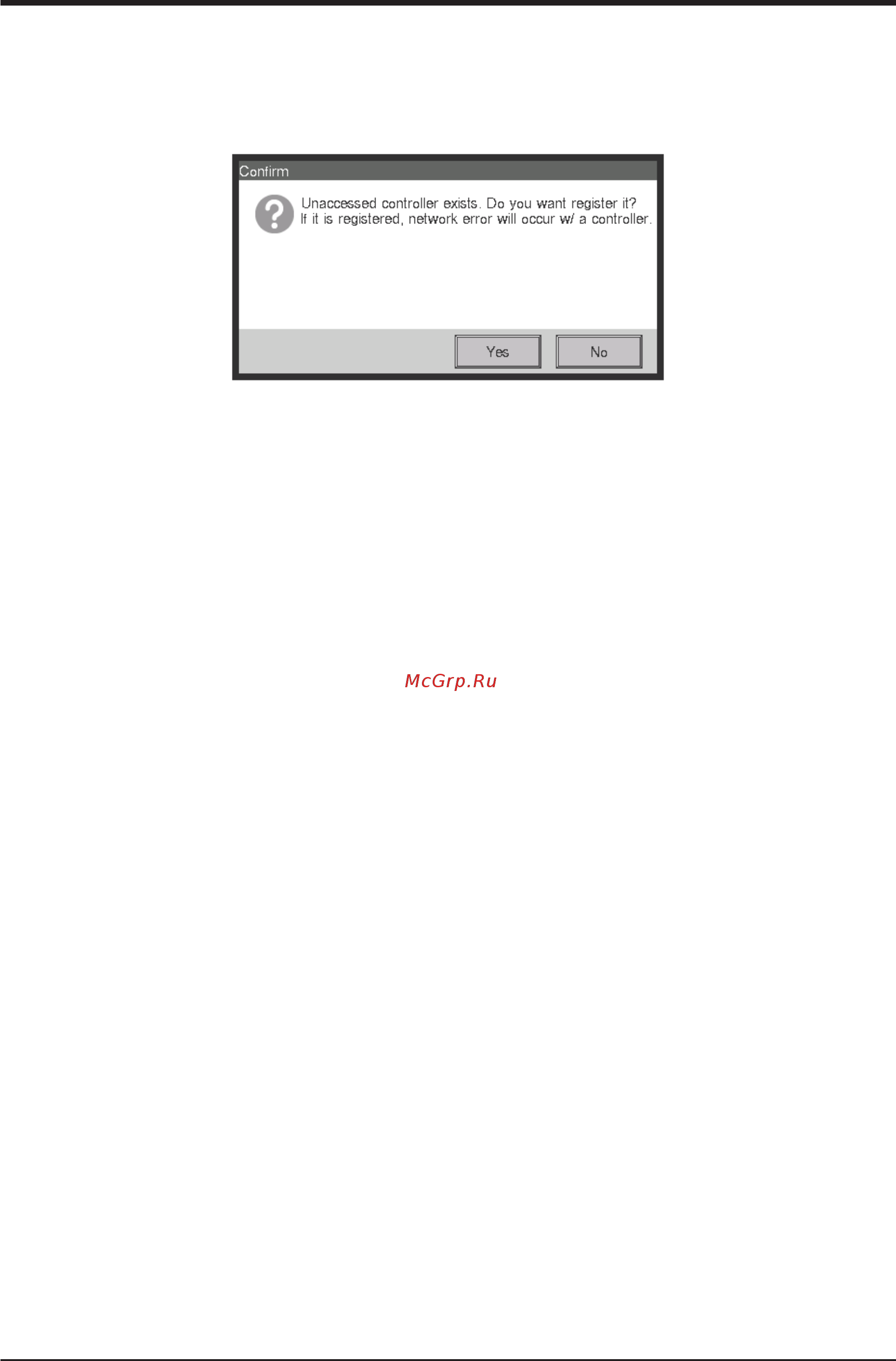

If there is an iTM whose connection status is “Disconnected”, the following Confirm dialog

appears.

To exit setup leaving the iTM disconnected, touch the Yes button. To return to the Controller screen,

touch the No button.

7. Open and close all the Layout Views of iTM.
