Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
27
(31) Post-Priority radio button
Select whether to allow Start/Stop from the equipment from Enable and Disable.
(32) Error output holding radio button
Select whether to block the control signal when an error is detected from Enable and Disable.
(33) Start-Stop Error radio button
Select whether to carry out start/stop error detection from Enable and Disable.
(34) Output Contact A/B radio button
Select the type of output contact from A type and B type.

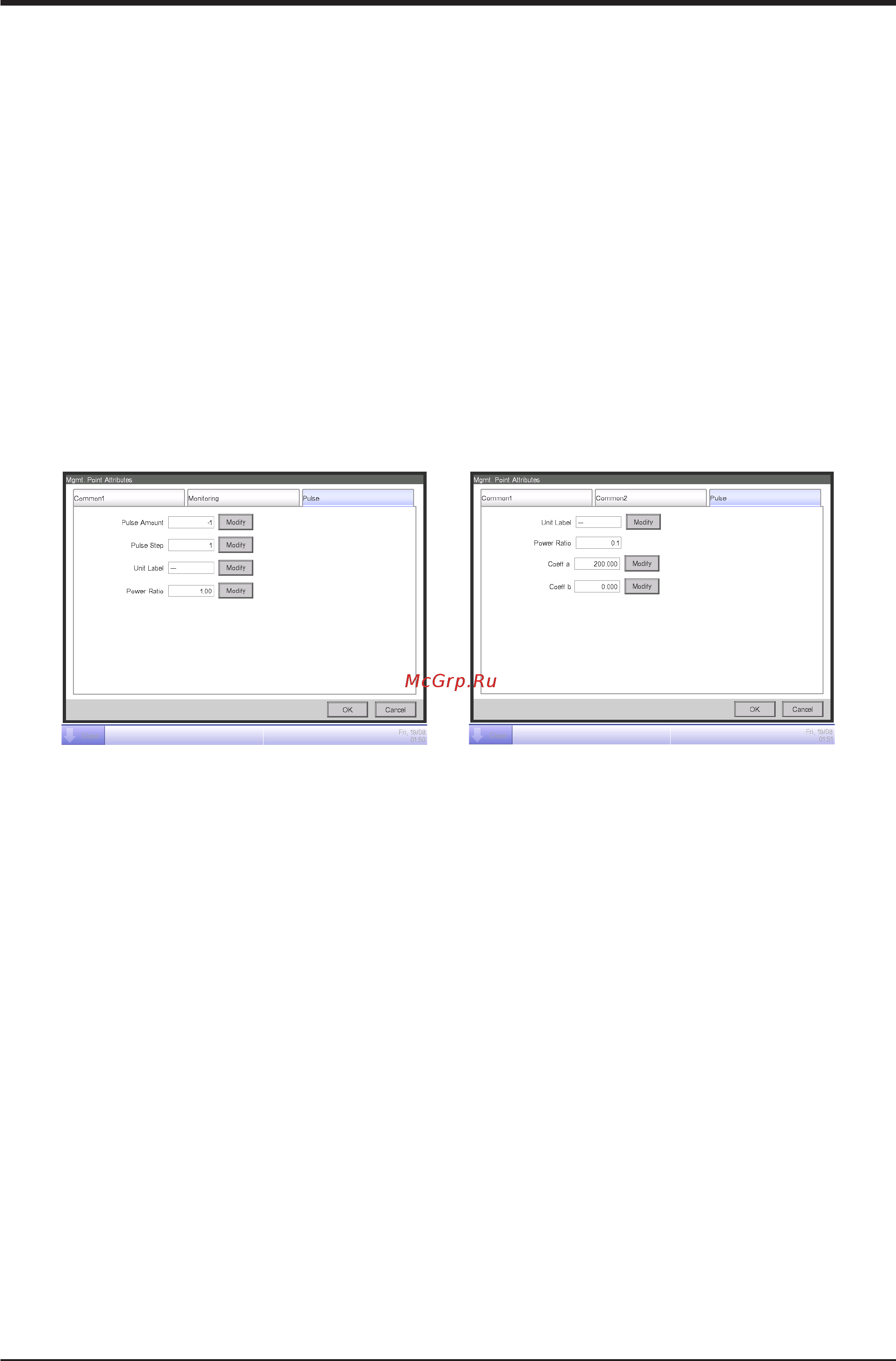

• Pulse Tab
Sets up the pulse value.
Displayed items vary depending on the management point type.
<Pi>
(35)
(36)
(37)
(38)
<Internal Pi>
(37)
(38)
(39)
(40)
(35) Pulse Amount text eld
Sets up the pulse value.
Touch the Modify button and enter the value in the Numerical Input dialog that appears.
You can enter a value in the –1 to 999999999 range, in increments of 1.
(36) Pulse Step text eld
Sets up the pulse constant.
Touch the Modify button and enter the value in the Numerical Input dialog that appears.
You can enter a value in the 1 to 999999 range, in increments of 1.
(37) Unit Label text eld
Sets up the unit.
Touch the Modify button and enter the value in the Text Input dialog that appears.
The number of characters you can enter is 0 to 8, irrespective of single or double byte.
