Commissioning Manual EM11A021

DCM601A51 intelligent Touch Manager

If the setting data has been loaded without any problem, the merge results appear.

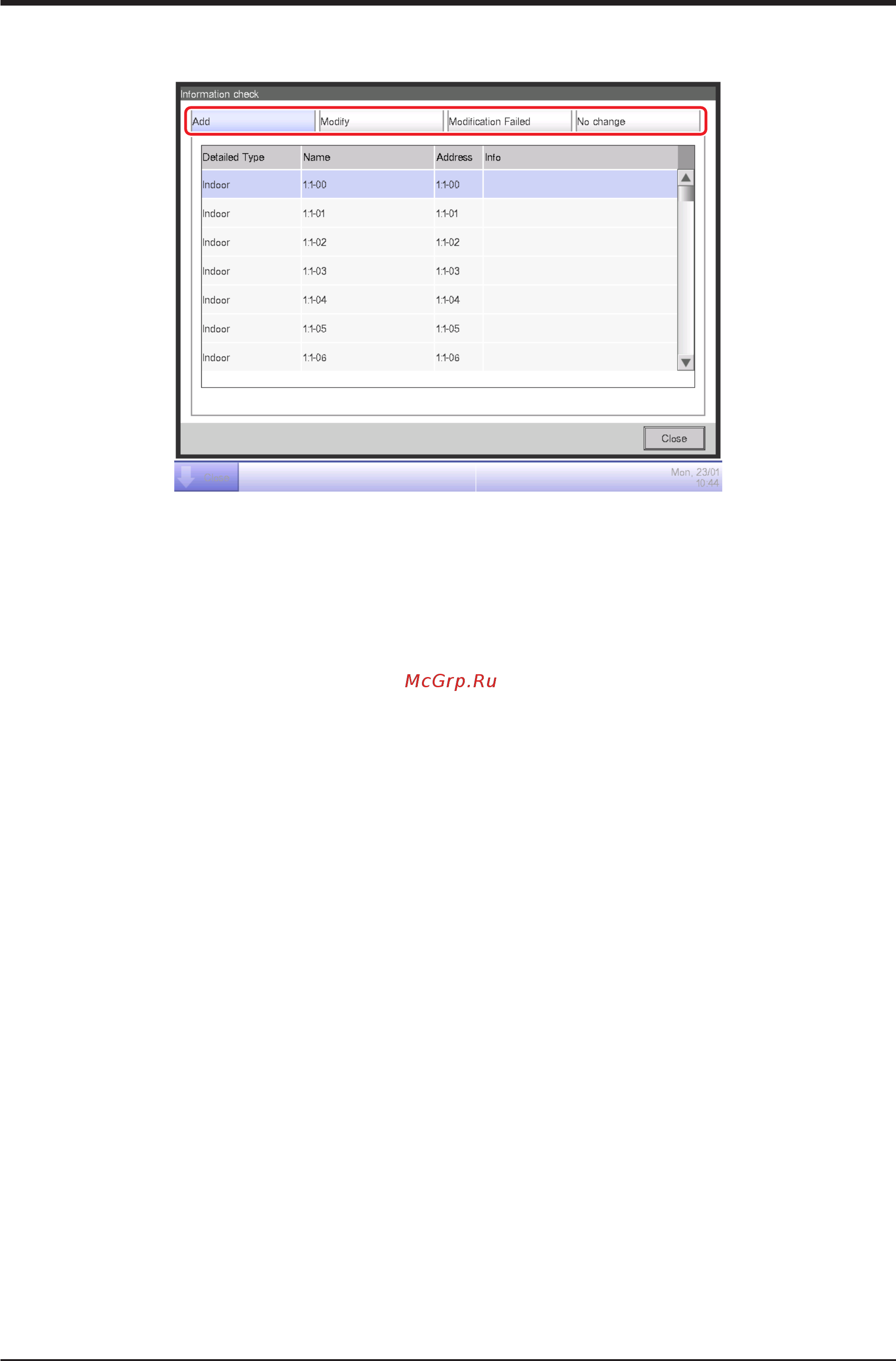

The Display Merge Results screen consists of the tabs: Add, Modify, Modication Failed, and No

change.

After checking the list on each tab, touch the Close button to return to the main Mgmt. Point

Data Register screen.
