Commissioning Manual EM11A021
DCM601A51 intelligent Touch Manager
59

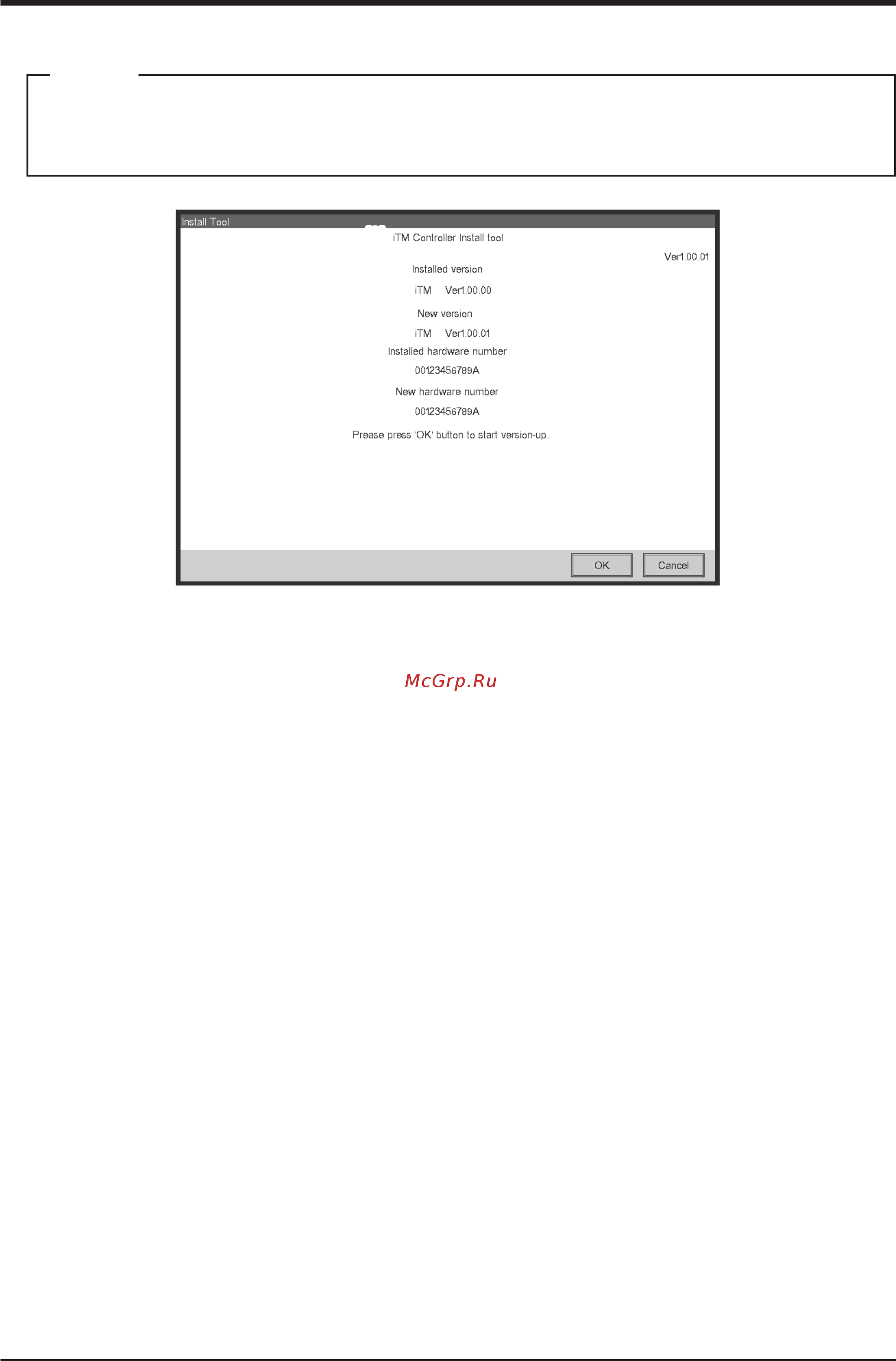

4. The installation tool screen appears once calibration is nished.
If an error is found in the installer program on the USB memory, an error conrmation dialog
appears. Be sure to prepare the correct installer program.
NOTE
(2)
(4)
(5) (6)
(7)
(8) (9)
(10)
(11)
(12)
(13)
(14)
(3)
5. The version of the data and MAC addresses in the USB memory are compared with the version
and MAC addresses on the iTM.
The information displayed on the installation tool screen is as follows.
(2) Name
(3) Version of the installer
(4) Name of the current version
(5) Name of the current controller
(6) Current version
(7) Name of the installer
(8) Name of the installer controller
(9) Version of the installer
(10) Current hardware name
(11) Current MAC address
(12) Name of the installer hardware
(13) Installer’s MAC address
(14) Message displayed in accordance with the installation tool’s status.
