User’s Manual of IGS-801M
The MAC Address Table includes the following fields:
Object Description
MAC Address
Display the MAC addr
entries count
ess count numbers.
VID
The VLAN ID for which the table is queried.
Ports
Specifies the port numbers for which the table is queried.
Type
The MAC Address type for which the table is queried. There’re two possible type-
• Dynamic - Addresses are associated with ports by learning the ports from
the frame source address.
• Static - Static addresses are manually configured. Packets received with
the destinated MAC address mathch the port static MAC setting
will be forward to the specify port.
MAC-Address
Specifies the MAC address for which the table is queried.
4.10.2 Static MAC Address
The Static MAC Address page contains a list of static MAC addresses. Static Address can be added and removed from the
page. In addition, several MAC Addresses can be defined for a single port. The screen in Figure 4-10-2 appears.

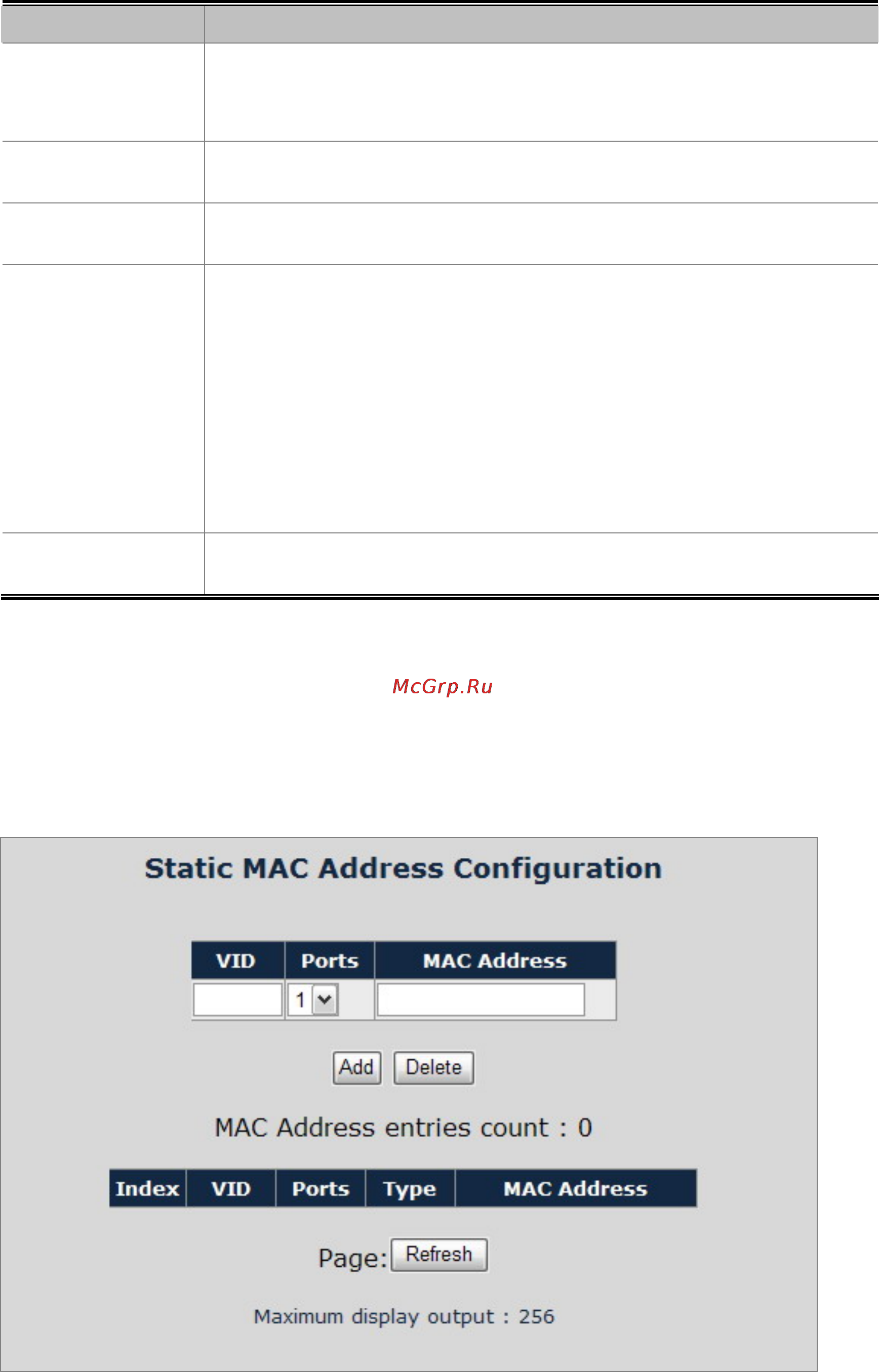

Figure-4-10-2 Static MAC Address Configuration
105
