User’s Manual of IGS-801M
4. WEB CONFIGURATION
witch smart function configuration and make the Switch operate
ork administrator can manage and monitor the
configure the Gigabit Ethernet Switch to enable
ys the Switch status. The screen in Figure 4-1-1
ppears.
The Gigabit Ethernet Switch provide Web interface for S
more effectively - They can be configured through the Web Browser. A netw
Gigabit Ethernet Switch from the local LAN. This section indicates how to
its smart function.
4.1 Main Menu
After a successful login, the main screen appears, the main screen displa
a

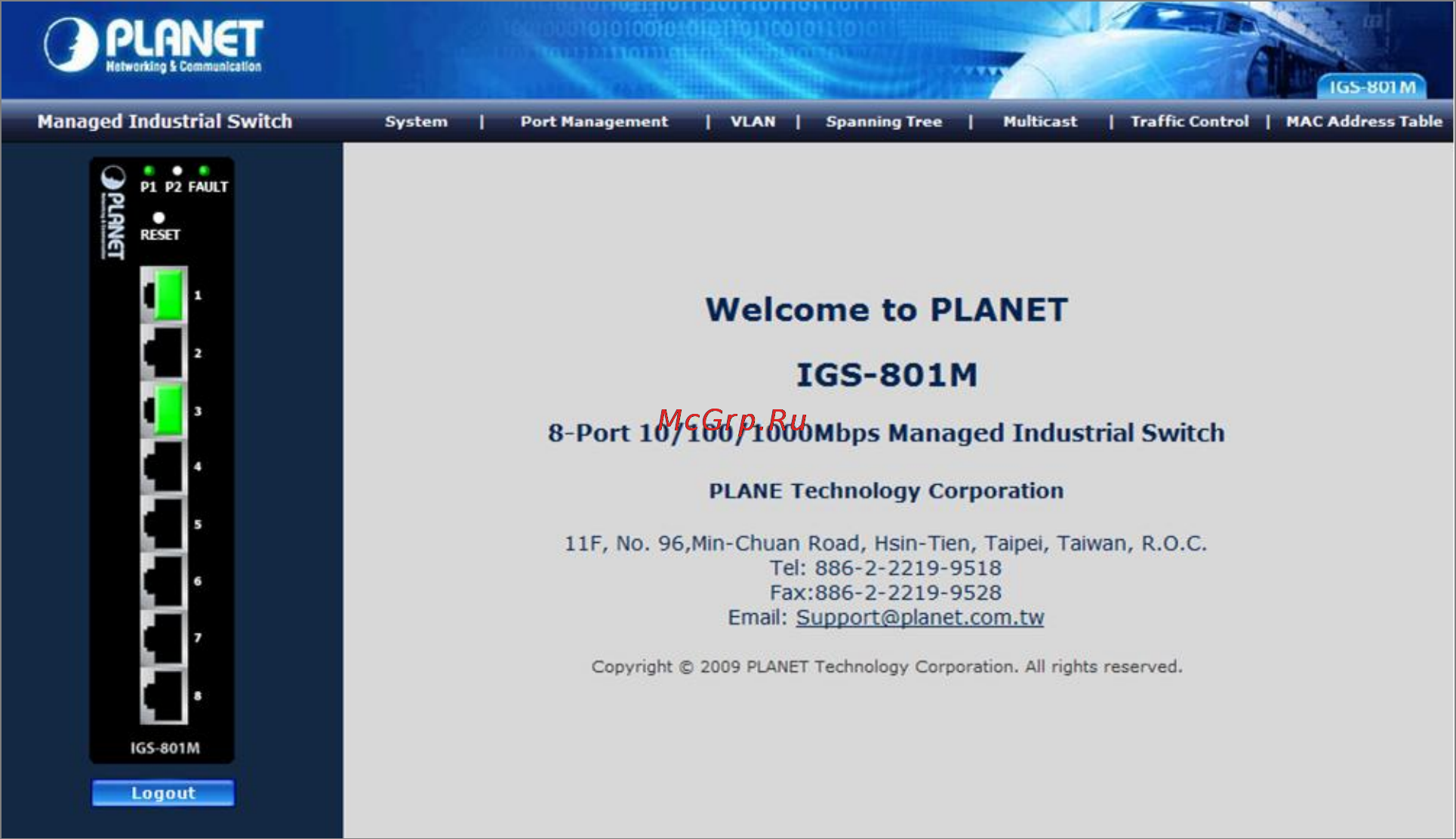

Figure 4-1-1 Web Main screen
As listed at the left of the main screen, the configurable smart functions are shown as below:
System – Check the hardware, software version and System MAC address. Setting the IP address and
SNMP management for the Gigabit Ethernet Switch. System Reboot / Factory Reset / Firmware Update /
Configuration Upload / Ping
Port Management - Setup per port Speed/Duplex mode, Flow Control, jumbo frame, Port Mirroring and Port
Link Aggregation and Cable Diagnostic.
VLANs – Configure VLAN Member / Port Configuration.
