4.3 Port Management

4.3.1 Port Configuration

This function allows displaying each port’s status. The Link Status in the screen displays the current connection speed and

duplex mode; else this function will show “Down” when the port is disconnected. Press the “Refresh” button to renew the

screen. The screen in Figure 4-3-1 appears.

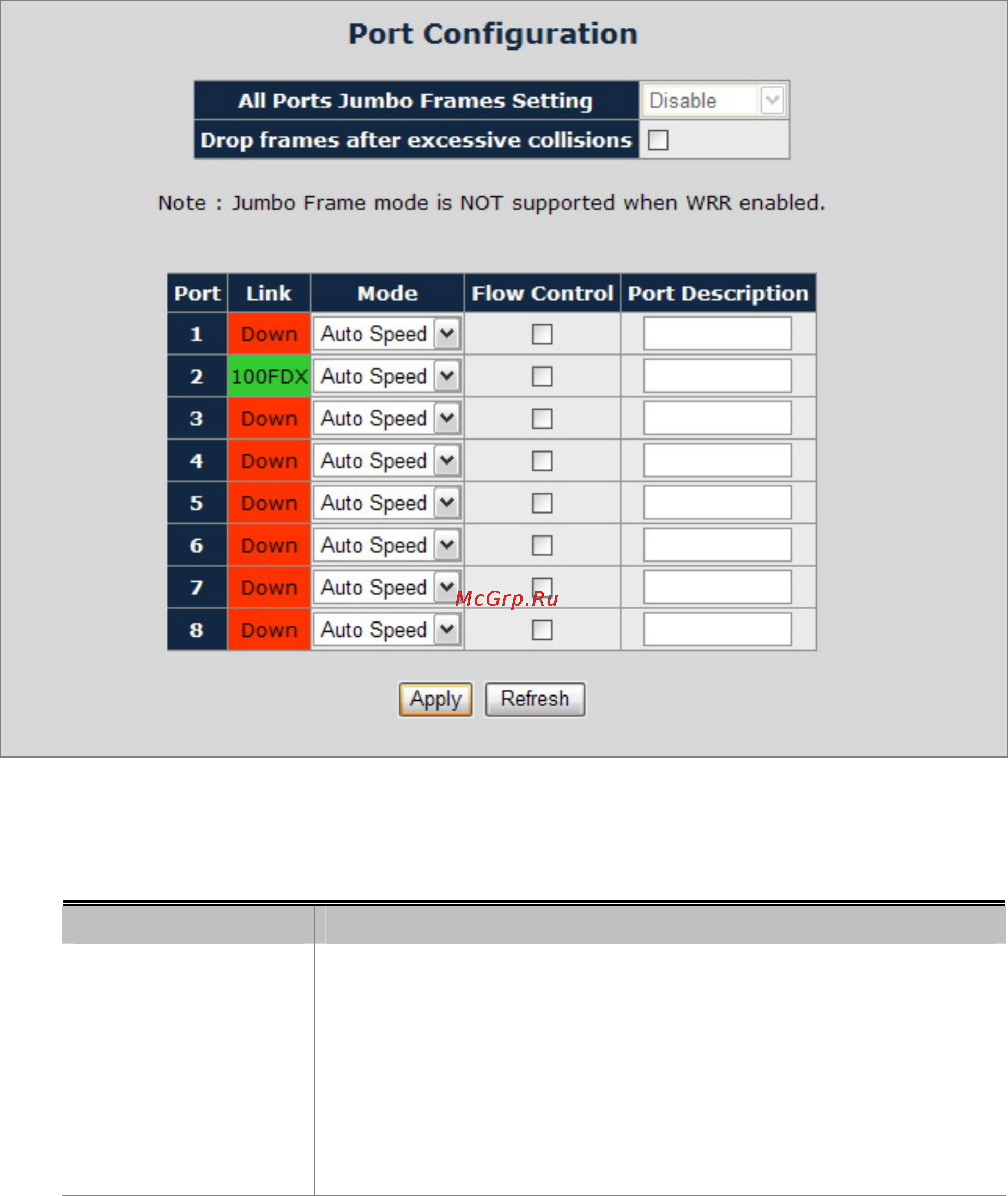

Figure 4-3-1 Port Configuration screen

The page includes the following configurable data:

Object Description

All Ports Jumbo Frames

Setting

The maximum Ethernet frame size the interface supports or is configured,

including Ethernet header, CRC, and payload. Draw the menu bar to select the

mode.

• Disable - The default maximum frame size is 1518.

• 4096 Kbytes – Set the maximum frame size to 4096 Bytes.

• 9600 Kbytes - Set the maximum frame size to 9600 Bytes.
