4.5.1 VLAN Membership

 Adding Static Members to VLANs (VLAN Index)

Use the VLAN Static Table to configure port members for the selected VLAN index. The VLAN membership configuration

for the switch can be m

deleting VLANs as well

in Figure 4-5-1 appears

onitored and modified here. Up to 64 VLANs are supported. This page allows for adding and

as adding and deleting port members of each VLAN. The VLAN Membership Configuration screen

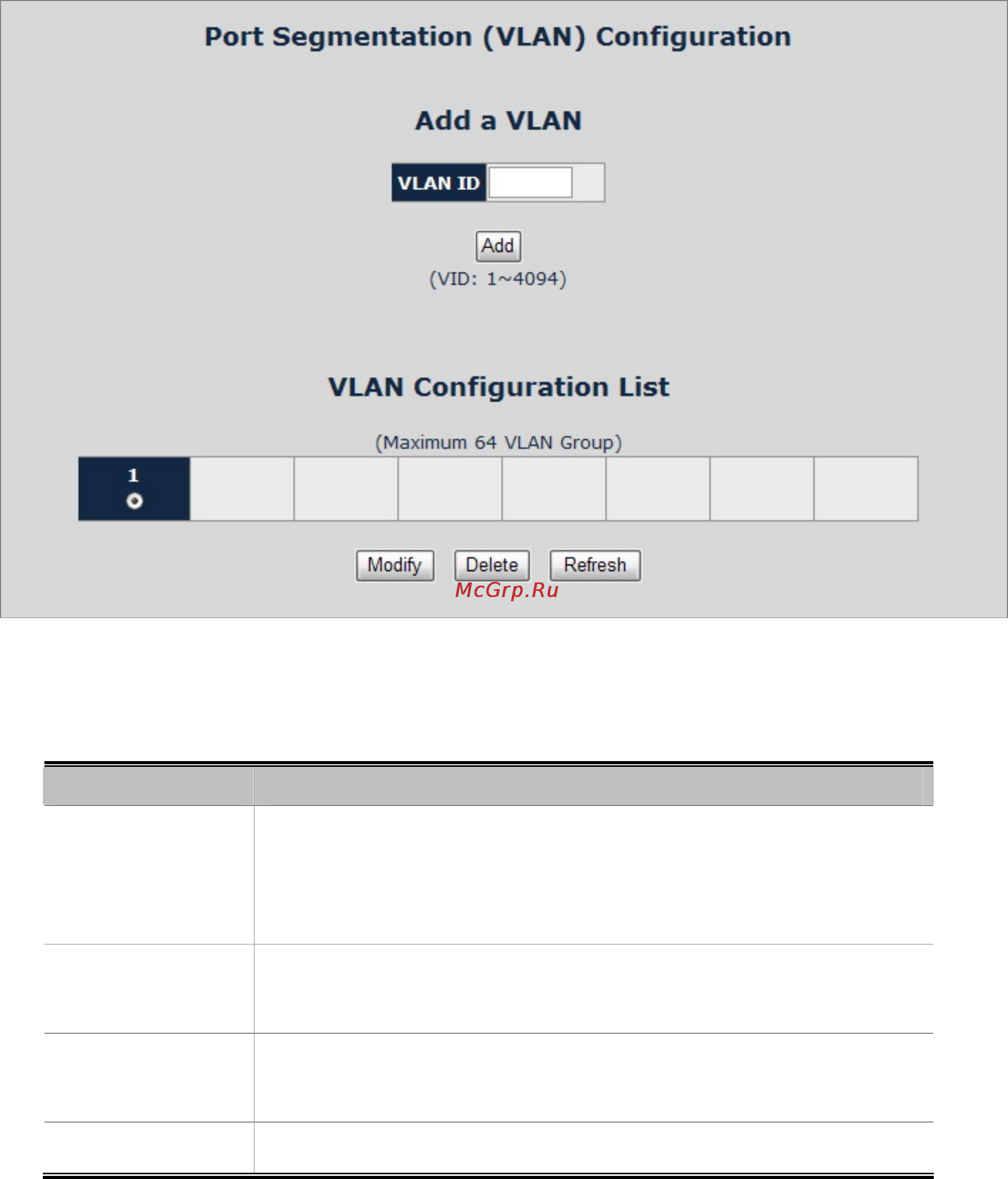

Figure 4-5-1 VLAN Membership screen

The page includes the following items:

Object Description

VLAN ID

Specify the VLAN Identifier for the new VLAN. (You can only enter data in this

field when you are creating a new VLAN.)

The range of the VLAN ID is (1 to 4094).

Add

To add a new VLAN Group with the specify VLAN ID. Once the Add button is

pressed. The page will be redirect to have the VLAN member assign page.

Modify

To modify an existence VLAN Group- adds new member ports or remove ports

from the selected VLAN Group.

Delete

Delete the selected VLAN Group.
