User’s Manual of IGS-801M

2. Installation

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation.

2.1 Hardware Description

2.1.1 Physical Dimension

 IGS-801M Managed Industrial Switch dimension (W x D x H) : 135mm x 87mm x 32mm

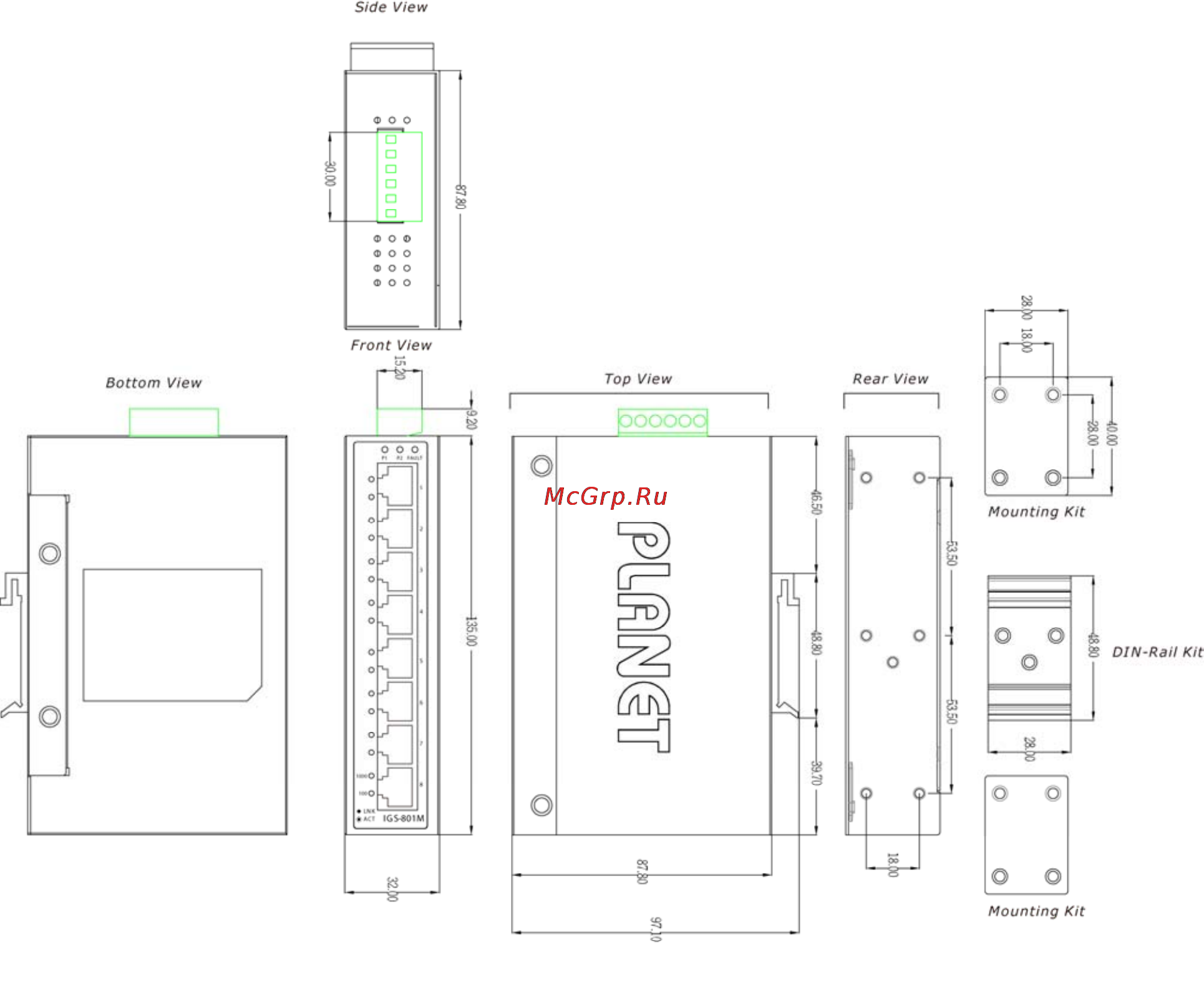

Figure 2-1 IGS-801M panel layout
