User’s Manual of IGS-801M
2. Chose the file save path in management workstation.

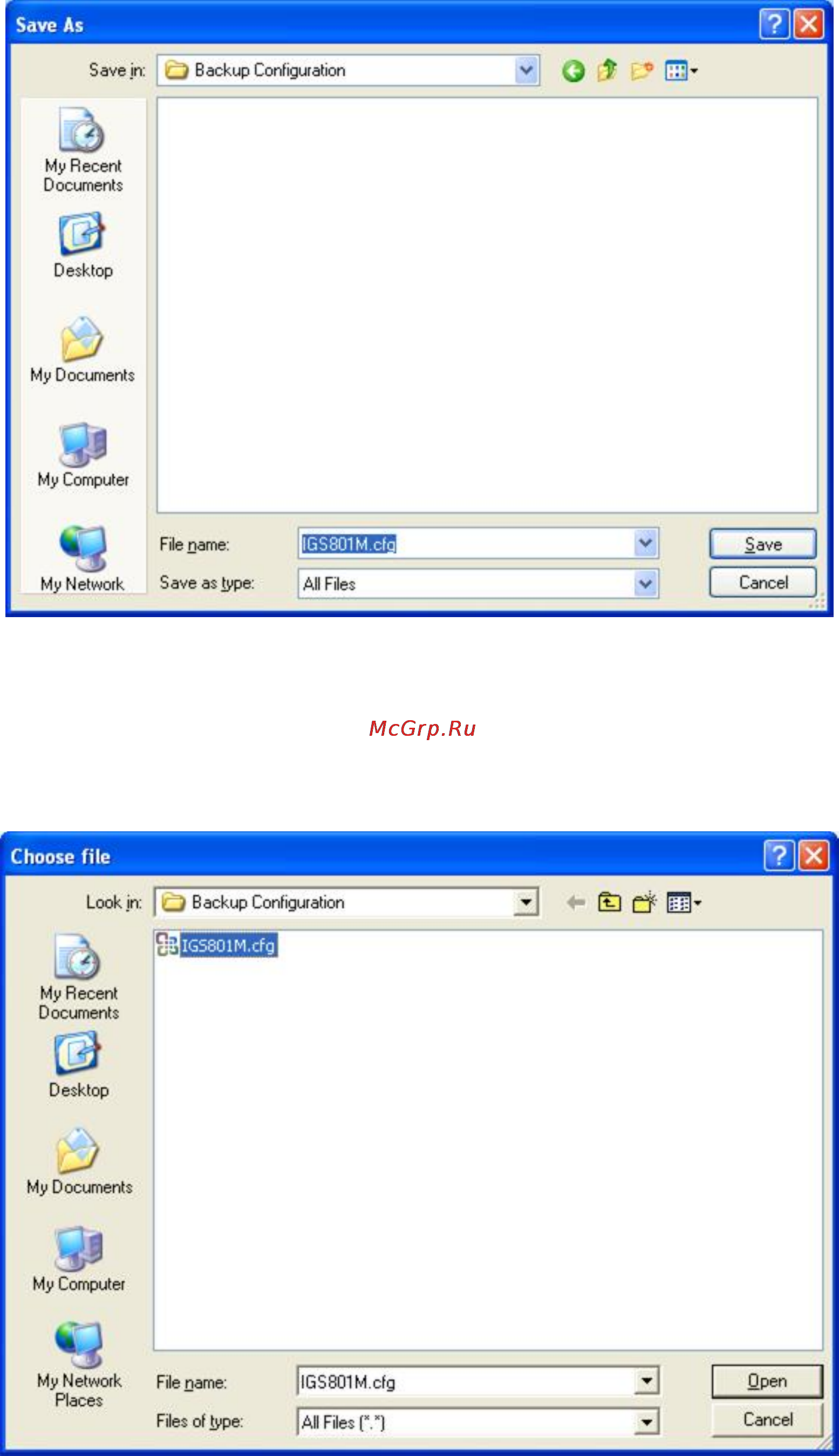

Figure 4-2-9 File save screen
Configuration Upload
1. Click the “Browse” button of the main page, the system would pop up the file selection menu to choose saved
configuration.
Figure popup 4-2-10 Windows file selection menu
32
