User’s Manual of IGS-801M

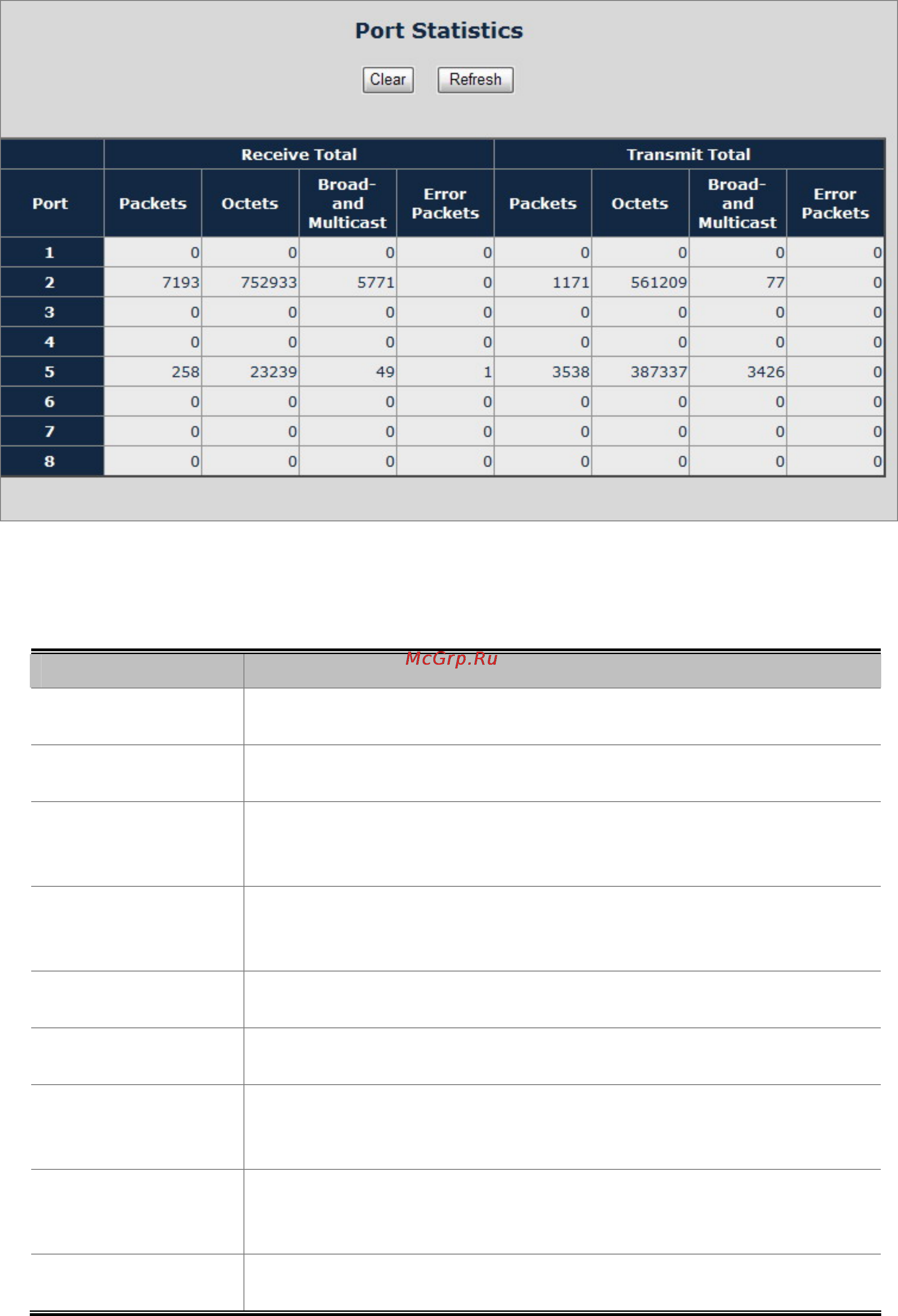

Figu
The page includes the following fields:
re 4-3-2 Port Statistics Overview screen
Object Description
Port
The Port number.
Receive Packets
Number of packets received on the port. Include the Unicast packets.
Receive Octet
f data (including those in bad packets) received on the port. This
object can be used as a reasonable estimate of Ethernet utilization.
s
Number of octets o
Broad- and Multicast
Number of packets received on the port. Include the broadcast and multicast
packets.
Error Packets
The numbers of error packets received from the port.
Transmit Packets
Number of packets transmitted on the port. Include the Unicast packets.
Transmit Octets
Number of octets of data (including those in bad packets) transmitted on the port.
This object can be used as a reasonable estimate of Ethernet utilization.
Broad- and Multicast
Number of packets transmitted on the port. Include the broadcast and multicast
packets.
Error Packets
The numbers of error packets transmit from the port.
40
