User’s Manual of IGS-801M

4.2.6 Configuration Upload

e current configuration of Switch to the local management station. The screen in

 Configuration Upload: Upload the existed configuration file to the Switch. The configuration file had been

wnload the current configuration file of the switch to the local machine.

This function allows backup and reload th

Figure 4-2-7 appears.

saved at the local machine already.

 Configuration Download: Do

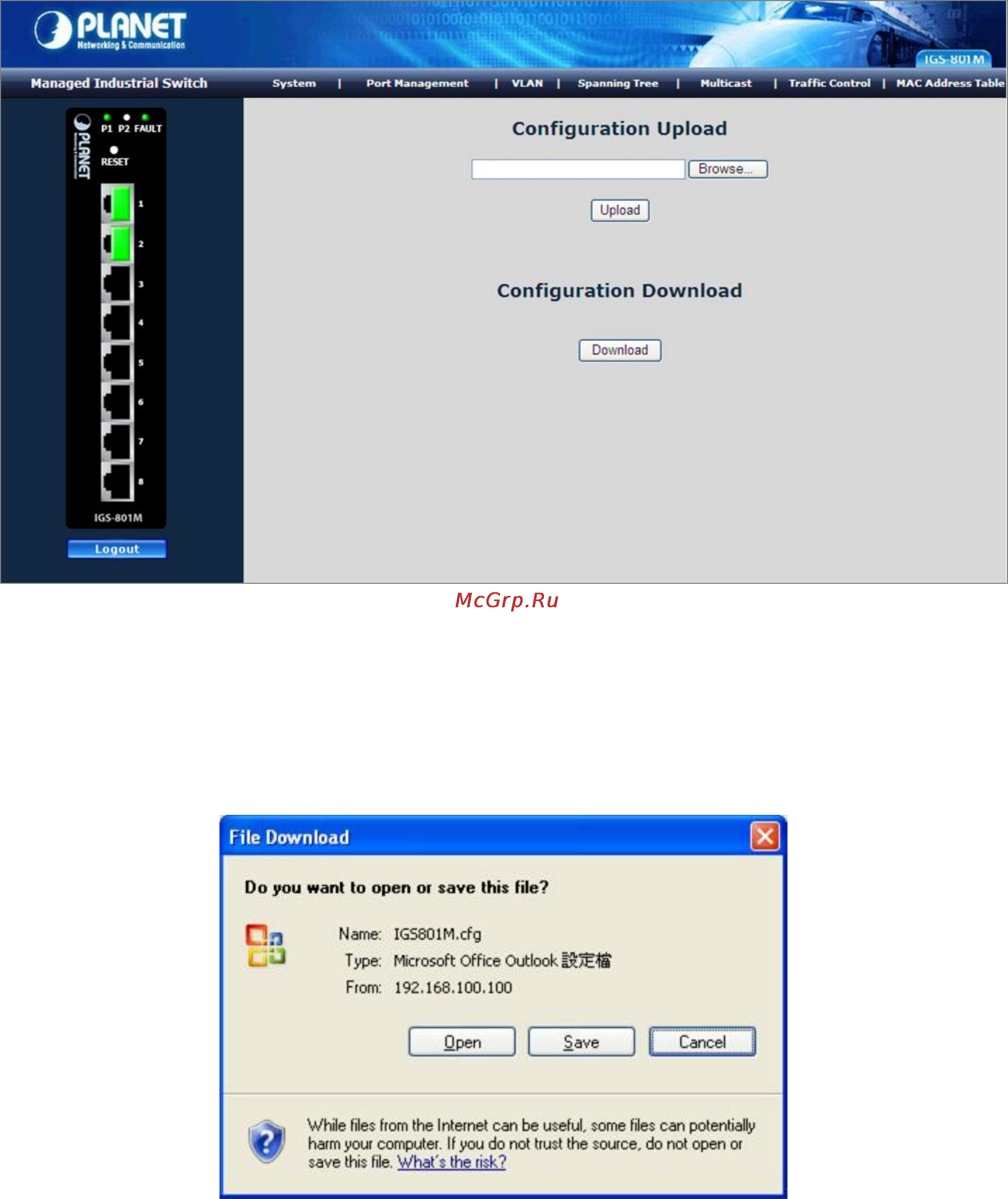

Figure 4-2-7 Configuration Upload/Download screen

 Configuration Download

1. Press the “Download” button to save the current configuration in manager workstation. The following screens in

Figure 4-2-8 and 4-2-9 appear

Figure 4-2-8 File Download screen
