User’s Manual of IGS-801M

2.1.2 Front / Rear Panel

The Front Panel and Rear Panel of the IGS-801M Managed Industrial Switch are shown as below:

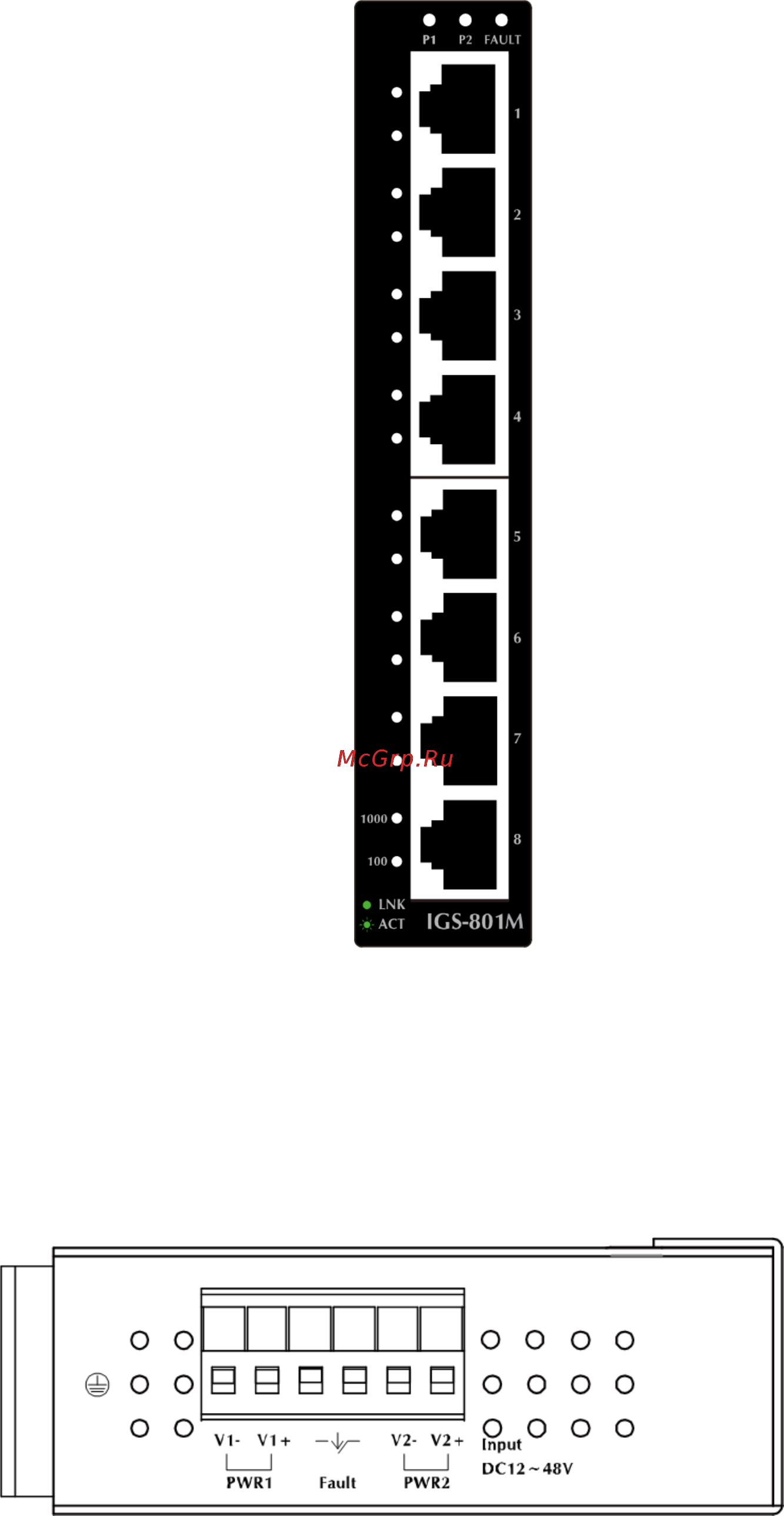

Figure 2-2 Front and Rear Panel of IGS-801M

2.1.3 Top View

The Top panel of the IGS-801M Managed Industrial Switch has one terminal block connector of two DC power inputs and

one fault alarm.

Figure 2-3 Top Panel of IGS-801M
