Planet IGS-801T [16/120] User s manual of igs 801m

User’s Manual of IGS-801M

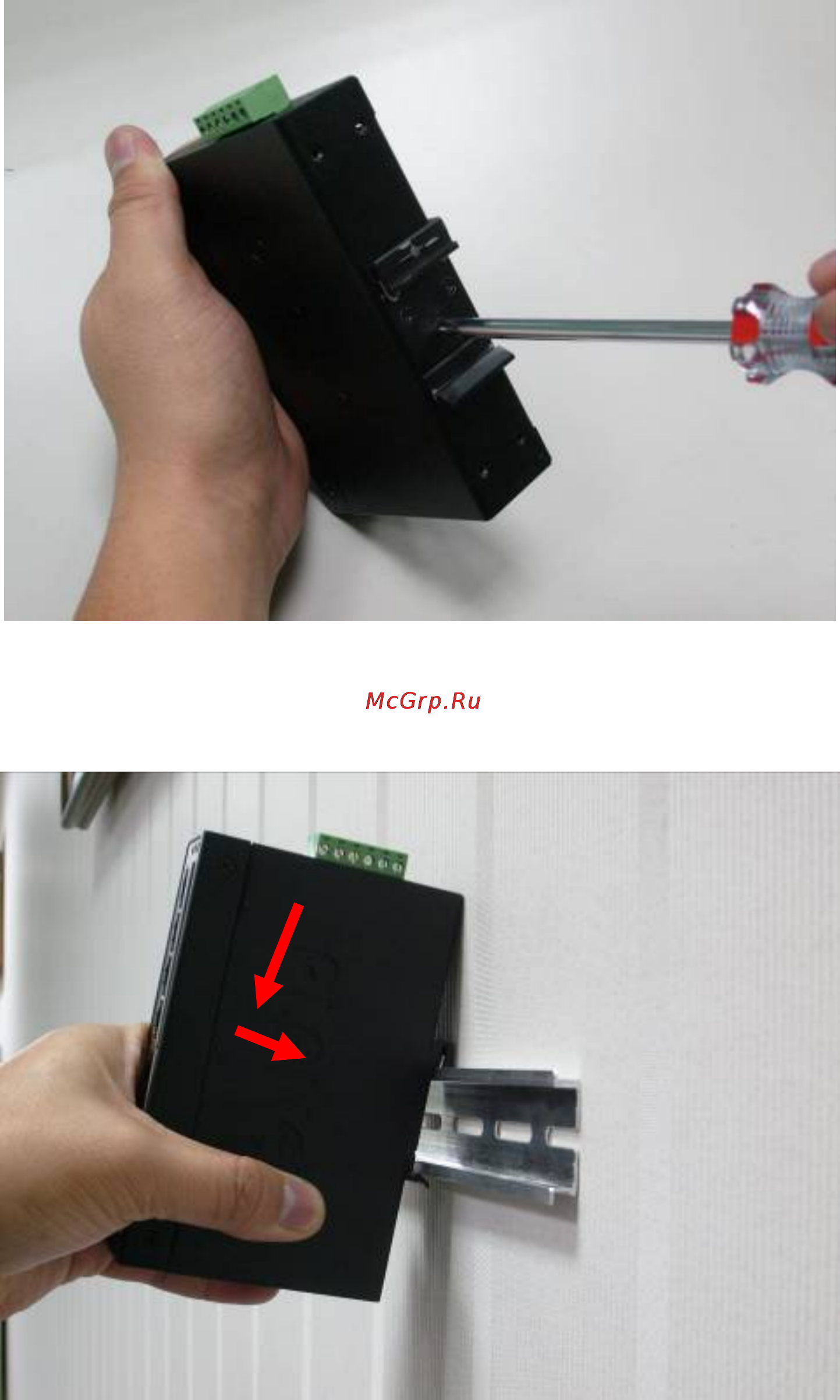

Step 1: screw the DIN-Rail on the Industrial Gigabit Ethernet Switch.

Step 2: Lightly press the button of DIN-Rail into the track.
