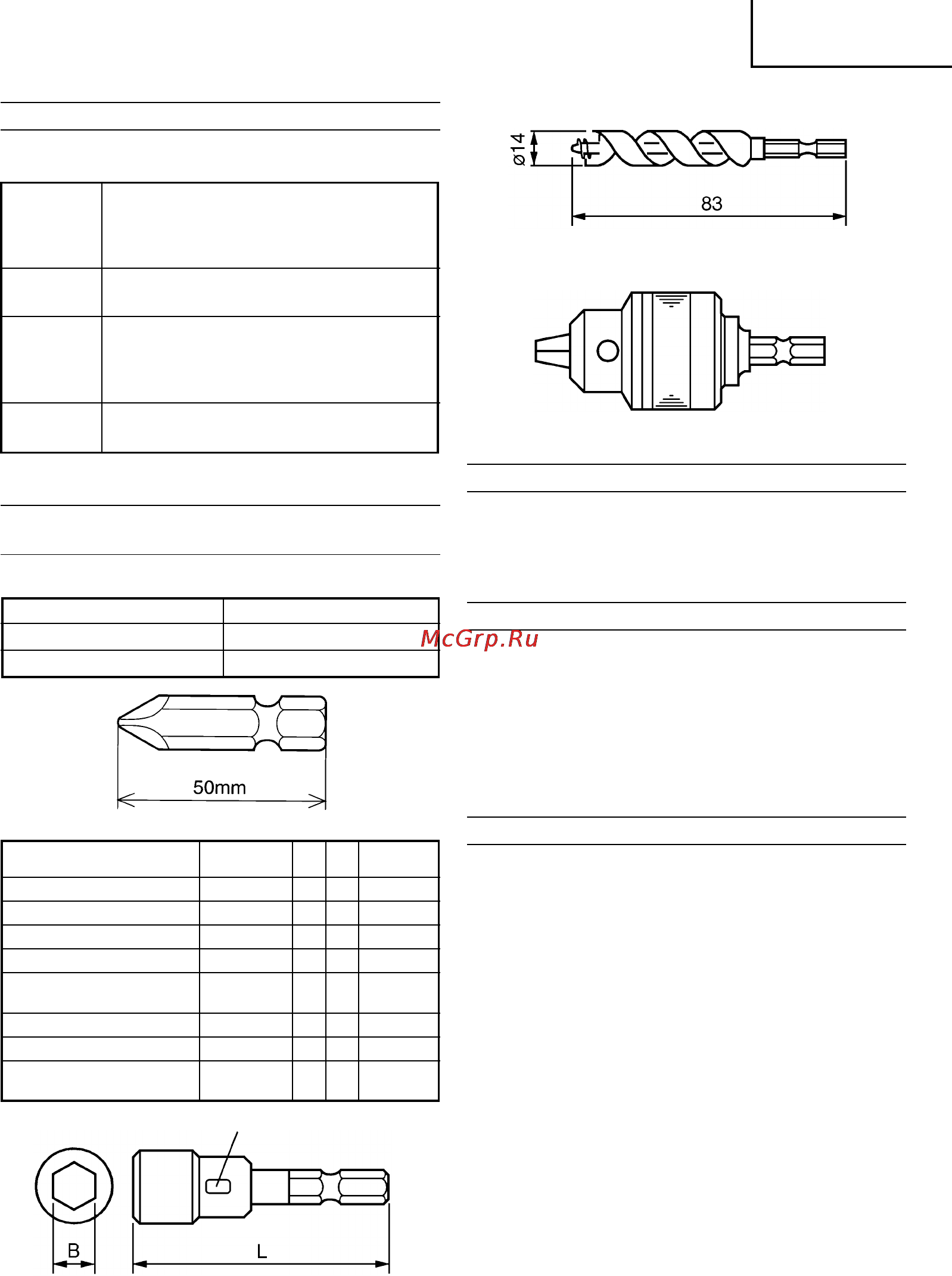

STANDARD ACCESSORIES
In addition to the main unit (1), the package contains the
accessories listed in the table below.
1 Charger (UC18YRSL) .......................... 1
2 Battery (BSL1430) ............................... 2
3 Plastic case.......................................... 1
4 Battery cover ...................................... 1
Without charger, battery,
plastic case and battery cover.
1 Charger (UC18YRSL) .......................... 1
2 Battery (BSL1830) ............................... 2
3 Plastic case.......................................... 1
4 Battery cover ...................................... 1
Without charger, battery,
plastic case and battery cover.
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES
(Sold separately)
1. Plus driver bit
2. Hexagonal socket
Bit No. Code No.
No. 2 992671
No. 3 992672
3. Wood working drill: Code No. 959183
4. Drill chuck adapter set: Code No. 321823
Use drill bits available on the local market.
Optional accessories are subject to change without notice.
APPLICATION
䡬 Driving and removing of small screws, small bolts,
machine screws, wood screws, tapping screws, etc.
䡬 Drilling of various woods.
䡬 Drilling of various metals.
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch to
remove the battery (see Figs. 1 and 2).
CAUTION:
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 2).
CHARGING
Before using the Electronic pulse driver, charge the
battery as follows.
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charger’s
pilot lamp will blink in red. (At 1-second intervals)
2. Insert the battery into the charger.
Firmly insert the battery into the charger until the
lines are visible, as shown in Figs. 3 and 4.
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light continuously
in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1-second intervals) (See
Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or
the rechargeable battery.
WM14DBL
(2LSRK)
WM14DBL
(NN)
WM18DBL
(2LSRK)
WM18DBL
(NN)
Part Name
Engraved
LBCode No.
characters
5 mm Hexagonal socket 8 65 8 996177
6 mm Hexagonal socket 10 65 10 985329
5/16" Hexagonal socket 12 65 12 996178
8 mm Hexagonal socket 13 65 13 996179
10 mm Hexagonal socket
14 65 14 996180
(small type)
10 mm Hexagonal socket 16 65 16 996181
10 mm Hexagonal socket 17 65 17 996182
1/2" Hexagonal long
socket
21 166 21 996197
Engraved characters
01Eng_WM14DBL_ EE 9/27/10, 9:0410
