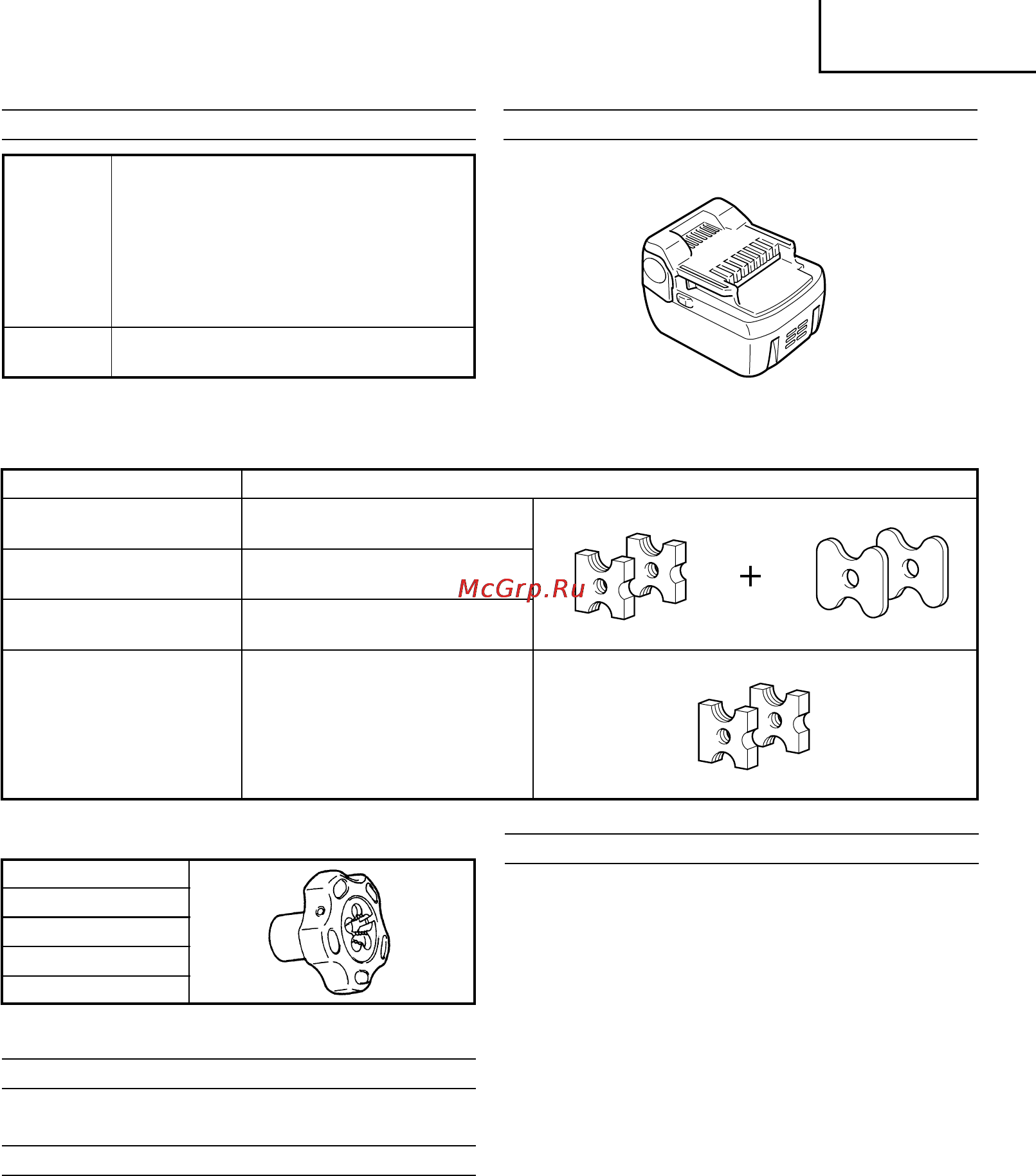

STANDARD ACCESSORIES

1 Charger ............................................ 1

2 Battery ............................................. 2

3 Battery cover .................................. 1

CL14DSL 4 Plastic case ..................................... 1

(2LSCK) 5 Hexagon bar wrench .................... 1

6 M8 Cutter ........................................ 2

7 M8 Spacer ...................................... 2

8 M8 Trimmer ................................... 1

CL14DSL Without charger, battery,

(NN) battery cover and plastic case

Standard accessories are subject to change without notice.

OPTIONAL ACCESSORIES (sold separately)

1. Battery (BSL1430)

Screw size Combining cutters and spacers

M10 × 1.5 M10 Cutter ............................. 2

M10 Spacer ............................ 2

M8 × 1.25 M8 Cutter ............................... 2

M8 Spacer .............................. 2

M6 × 1 M6 Cutter ............................... 2

M6 Spacer ............................. 2

W3/8" × 1.5875 W3/8" Cutter ........................... 2

2. Cutter

3. Trimmer

Screw size

M10 × 1.5

M8 × 1.25

M6 × 1

W3/8" × 1.5875

Optional accessories are subject to change without notice.

APPLICATIONS

䡬 Cutting of soft steel studs.

BATTERY REMOVAL/INSTALLATION

1. Battery removal

Hold the handle tightly and push the battery latch

to remove the battery (see Figs. 1 and 2).

CAUTION:

Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see

Fig. 2).

CHARGING

Before using the power tool, charge the battery as

follows.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charger’s

pilot lamp will blink in red. (At 1-second intervals)

2. Insert the battery into the charger.

Firmly insert the battery into the charger until the

line is visible, as shown in Fig. 3, 4 .

3. Charging

When inserting a battery in the charger, charging

will commence and the pilot lamp will light

continuously in red.

When the battery becomes fully recharged, the pilot

lamp will blink in red. (At 1-second intervals) (See

Table 1)

(1) Pilot lamp indication

The indications of the pilot lamp will be as shown

in Table 1, according to the condition of the charger

or the rechargeable battery.

01Eng_CL14DSL_EE 08/3/26, 18:3010
