As the remaining battery indicator shows somewhat

differently depending on ambient temperature and

battery characteristics, read it as a reference.

NOTE:

䡬 Do not give a strong shock to the switch panel or

break it.It may lead to a trouble.

䡬 To save the battery power consumption, the

remaining battery indicator lamp lights while

pressing the remaining battery indicator switch.

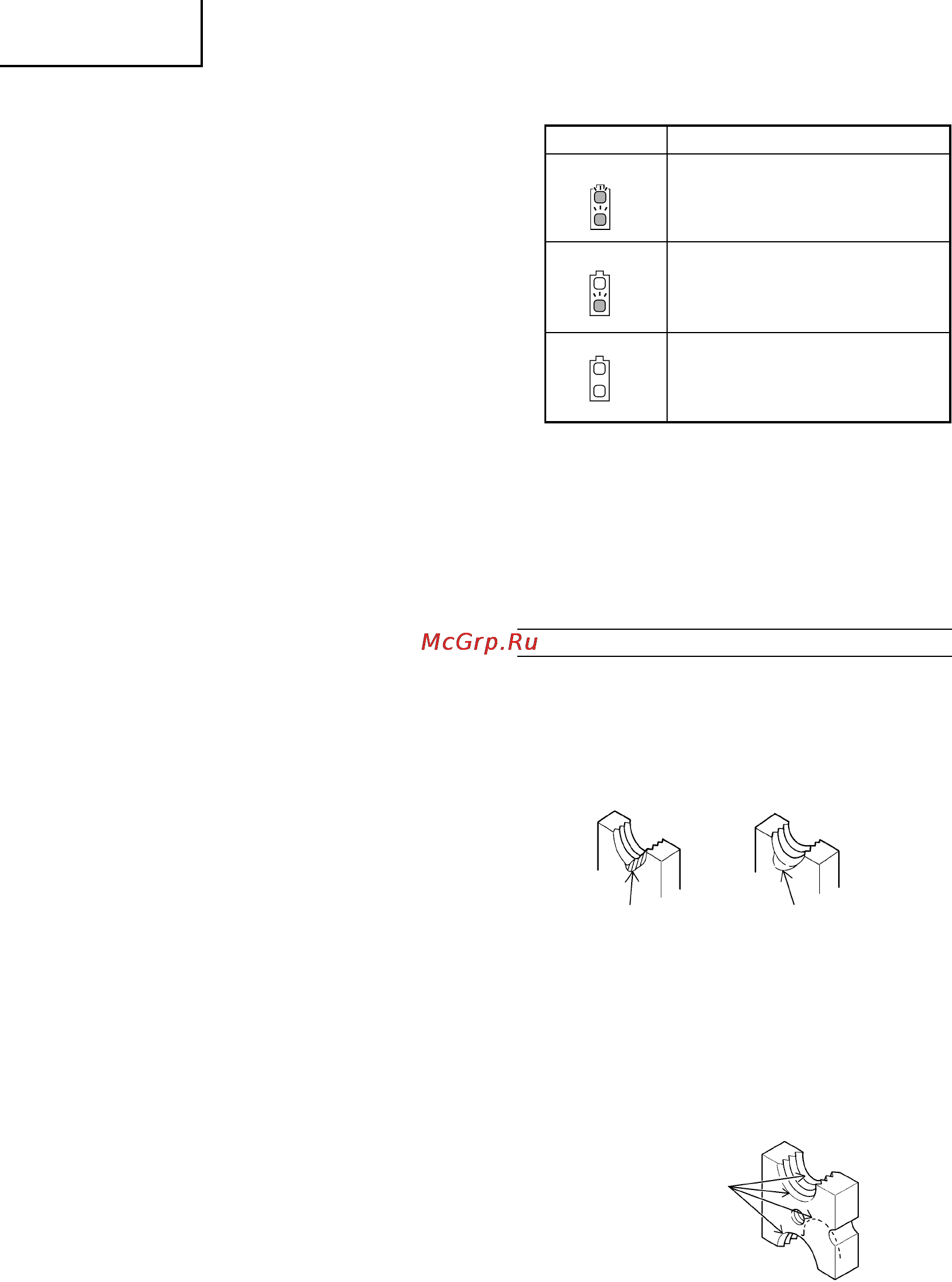

CUTTER LIFE AND REPLACEMENT

1. Cutter life

As is shown in Fig. 17, repeated cutting can cause

breaking and warping of the cutter edge. Using the

cutter in this condition can produce flange on the

cutting location of the studs so that the threads are

distorted. This will prevent clean cuts and make it

impossible to insert the nut.

Fig. 17

As is shown in Fig. 18, the edge is found on four

locations on the cutter. Use the method described

below to change the attachment direction of the

cutter to allow a total of four usages.

If the nut does not fit on the screw due to breaking

and warping of the edge, change the cutter

attachment direction to use the edge without

breaking and warping or replace with a new cutter.

Fig. 18

CAUTION:

Use your left hand to hold the stud on the side

released by cutting to insure that it does not fall

unexpectedly.

5. Removing the screw from the unit during cutting

operations

If the battery wears out during cutting operations

so that the motor stops rotating, pull the trigger

switch while pushing the forward/reverse switching

button to the reverse side (Fig. 5 (c)). The motor

will rotate in the opposite direction and it will be

possible to remove the stud from the cutter (Fig.

12).

CAUTION:

䡬 When removing a stud that is suspended from

the ceiling, hold the main unit with both hands

to prevent any possibility of the stud falling.

䡬 Immediately turn off the switch once the cutter

is free from the stud. If you attempt to do this

with the switch turned on, the cutter might cut

into the stud again.

6. Using the hook

The hook can be used to hang up the unit temporarily

during operations (Fig. 13).

CAUTION:

The hook should never be used to hang the unit

on your person.

When using the hook, check to make sure that the

main unit will not slip and fall, or become unstable

by the wind, etc.

Never hang the unit from your belt or trousers as

this could cause accidents.

NOTE:

During normal use or during storage, store the hook

in the latch found on the bottom of the main unit.

7. Using the trimmer

NOTE: Use a special trimmer that is suitable for the

size of the stud.

If it is difficult for the nut to enter the cutting

position, either use a wrench to firmly tighten the

nut or use the accessory trimmer to remove the

flange on the screw thread.

Insert the stud in the hole on the grip. Use a pliers

to retain the stud and rotate the trimmer 5 or 6

times to the right to remove the flange and then

rotate in the opposite direction to remove the

trimmer (Fig. 14).

CAUTION:

This trimmer is specially designed for Studs Cutter.

The flange on studs cut with a hacksaw or disc

grinder is too large for this trimmer so that the

trimmer does not rotate and it is not possible to

remove flange.

8. About Remaining Battery Indicator

When pressing the remaining battery indicator

switch, the remaining battery indicator lamp lights

and the battery remaining power can be checked.

(Fig.15) When releasing your finger from the

remaining battery indicator switch, the remaining

battery indicator lamp goes off. The table 5 shows

the state of remaining battery indicator lamp and

the battery remaining power.

State of lamp Battery Remaining Power

The battery remaining power

is enough.

The battery remaining power

is a half.

The battery remaining power

is nearly empty.

Re-charge the battery soonest

possible.

Table 5

Breaking

Warping

Four edges

on the cutter

01Eng_CL14DSL_EE 08/3/26, 18:3013
