11
TRANSLATION OF
THE ORIGINAL INSTRUCTIONS
BLADE SAWING MACHINE (JIGSAW)
58G067
CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL
CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.
DETAILED SAFETY REGULATIONS
• Whenever working tool can hit hidden electric wires or its
own power cord during operation, hold the power tool only
by insulated surfaces of the handle. Contact with power supply
line may transfer its voltage to metal parts of the power tool and
cause electric shock.
• Keep hands at safe distance from the cutting area. Do not put
them under processed piece. Contact with blade may cause
injury.
• Switch o the jigsaw after work. Remove blade from
processed piece only when it is at standstill. This way you can
avoid recoil and it is possible to safely put the power tool away.
• Use only undamaged blades in good technical condition. Bent,
blunt blades may break, additionally may aect cutting line and
cause recoil.
• Certain wood and metal types may be dangerous to health
and cause allergic reactions, respiratory tract illness or be
carcinogenic.
- Use dust masks when cutting to protect your respiratory system
against produced dust.
- Use dust extraction system when cutting wood.
- always provide good ventilation of your workplace.
• Do not cut water system pipes with the jigsaw. Cutting a pipe
may cause material damages or electric shock.
• Carefully check the processed material before cutting to eliminate
possibility of cutting nails, bolts, or other hard objects.
• Do not cut objects thicker than allowed in technical specication
for a given material.
• Hold the jigsaw in a closed hand.
• Ensure the jigsaw does not have contact with the material before
pressing the switch.
• Do not touch moving parts with your hand.
• Do not put away the jigsaw until it stops moving. Do not switch
the jigsaw on when not holding it.
• Do not touch the blade or processed material immediately
after the work has been nished. Those elements may be hot
and may cause burns.
• When you see unusual behaviour of the tool or hear strange
noises, immediately switch o the tool and remove the plug from
mains socket.
• To ensure proper cooling keep ventilation holes in the jigsaw
body uncovered.
• Before connecting the jigsaw to mains socket make sure the
supply voltage matches the voltage on the rating plate of the tool.
• Each time before connecting the jigsaw check the power cord, in
case of damage hand over to authorized workshop for repair.
• Power cord of the jigsaw always must be on the safe side, where
there is no danger of accidental damage by operating power tool.
CAUTION! This device is designed to operate indoors.
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of injuries at work.

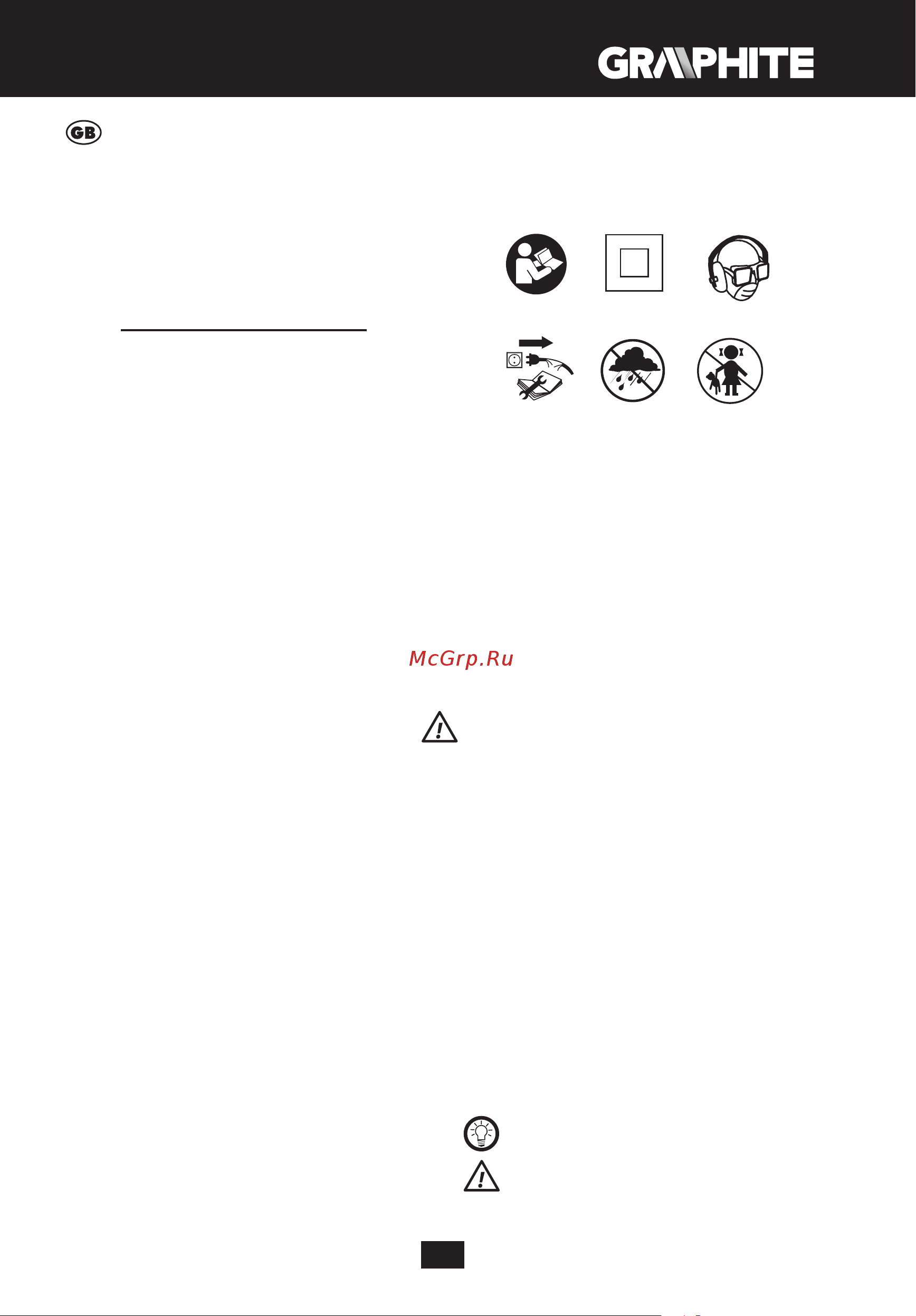

Explanation of used symbols
1 2 3
4 5 6
1. Read instruction manual, observe warnings and safety
conditions therein.
2. Device with class II insulation.
3. Use personal protection measures (protective goggles, earmu
protectors, anti-dust mask)
4. Disconnect the power cord before starting maintenance or
operation.
5. Protect against rain.
6. Keep the tool away from children.
CONSTRUCTION AND USE
Jigsaw is a hand-operated power tool with insulation class II. It is
driven by a single-phase commutator motor. The tool is designed
for making straight, dividing cuts, curved cuts and holes in
wood, wood-based materials, plastics and metals (provided that
appropriate blade is used).
Range of use covers repair and building works, and any work from
the range of individual, amateur activities (tinkering).
Use the power tool in accordance with the manufacturer’s
instructions only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1. Work speed control wheel
2. Switch
3. Switch lock button
4. Footplate
5. Wheel for pendulum action setting
6. Blade holder
7. Guard
8. Edge guide locking screws
9. Blade protection
10. Illumination (LED)
11. Light switch
12. Clip for tools
13. Voltage indicator
14. Guiding roller
15. Airow control lever
16. Dust extraction outlet
* Dierences may appear between the product and drawing.
