BMW R1100S (1999) [116/302] Disassembling assembling alternator
![BMW R1100S (1999) [116/302] Disassembling assembling alternator](/views2/1121020/page116/bg74.png)
12.8
Disassembling/assembling
alternator
(Option 50 A)
•

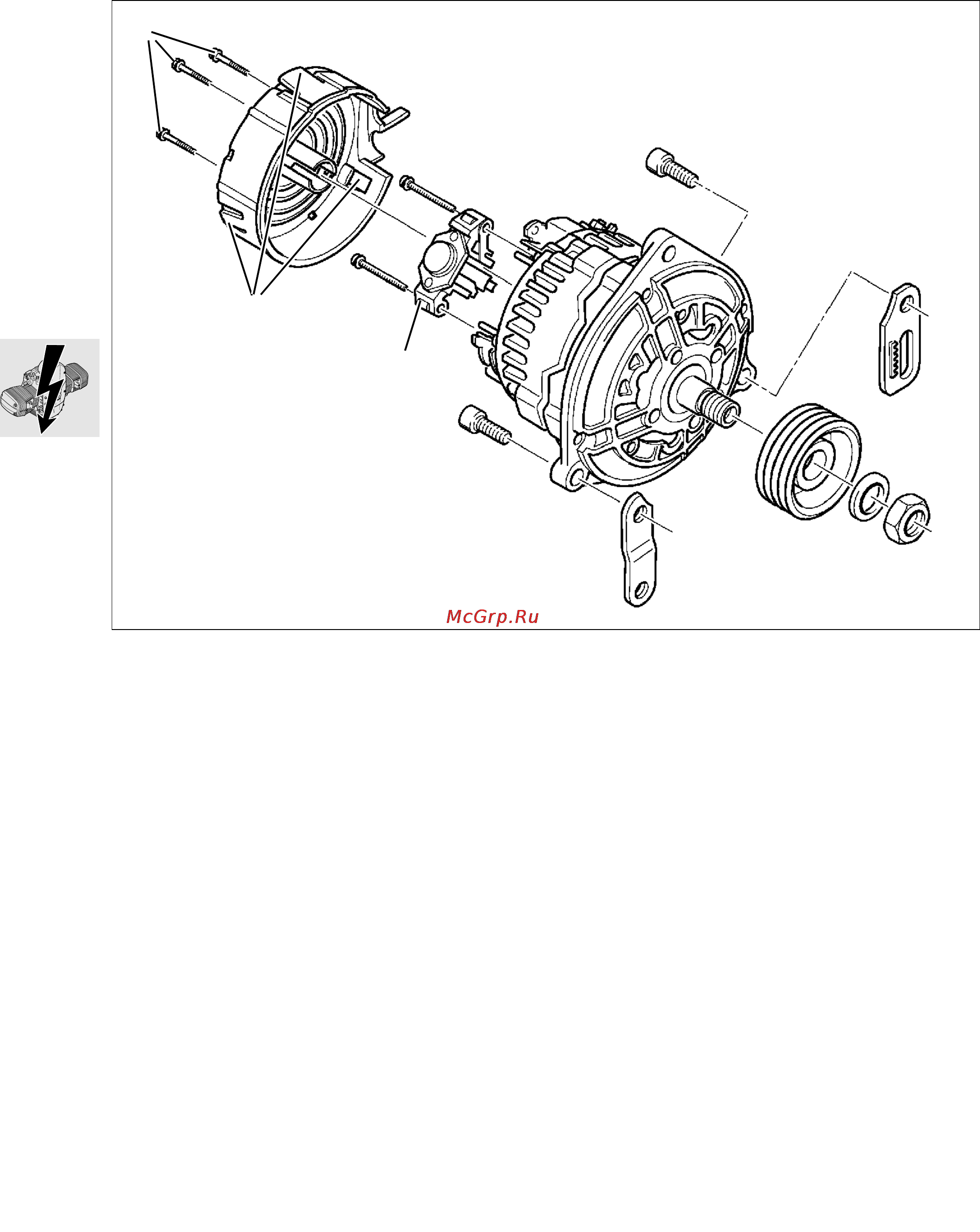

Remove the cover retaining screws (1).
•
Release clips (2) and remove the cover.
•
Remove voltage regulator (3).
•
Remove the Poly-V belt pulley.
•
Installation is the reverse of the removal proce-
dure.
X Tightening torque:
Belt pulley to alternator ................................ 50 Nm
Checking alternator
•
Test with BMW MoDiTeC.
Checking armature for short to ground
(earth)
•
Test with BMW MoDiTeC.
RS120050
1
2
3
