BMW R1100S (1999) [37/302] Replacing brake pads front brake
![BMW R1100S (1999) [37/302] Replacing brake pads front brake](/views2/1121020/page37/bg25.png)
00.29

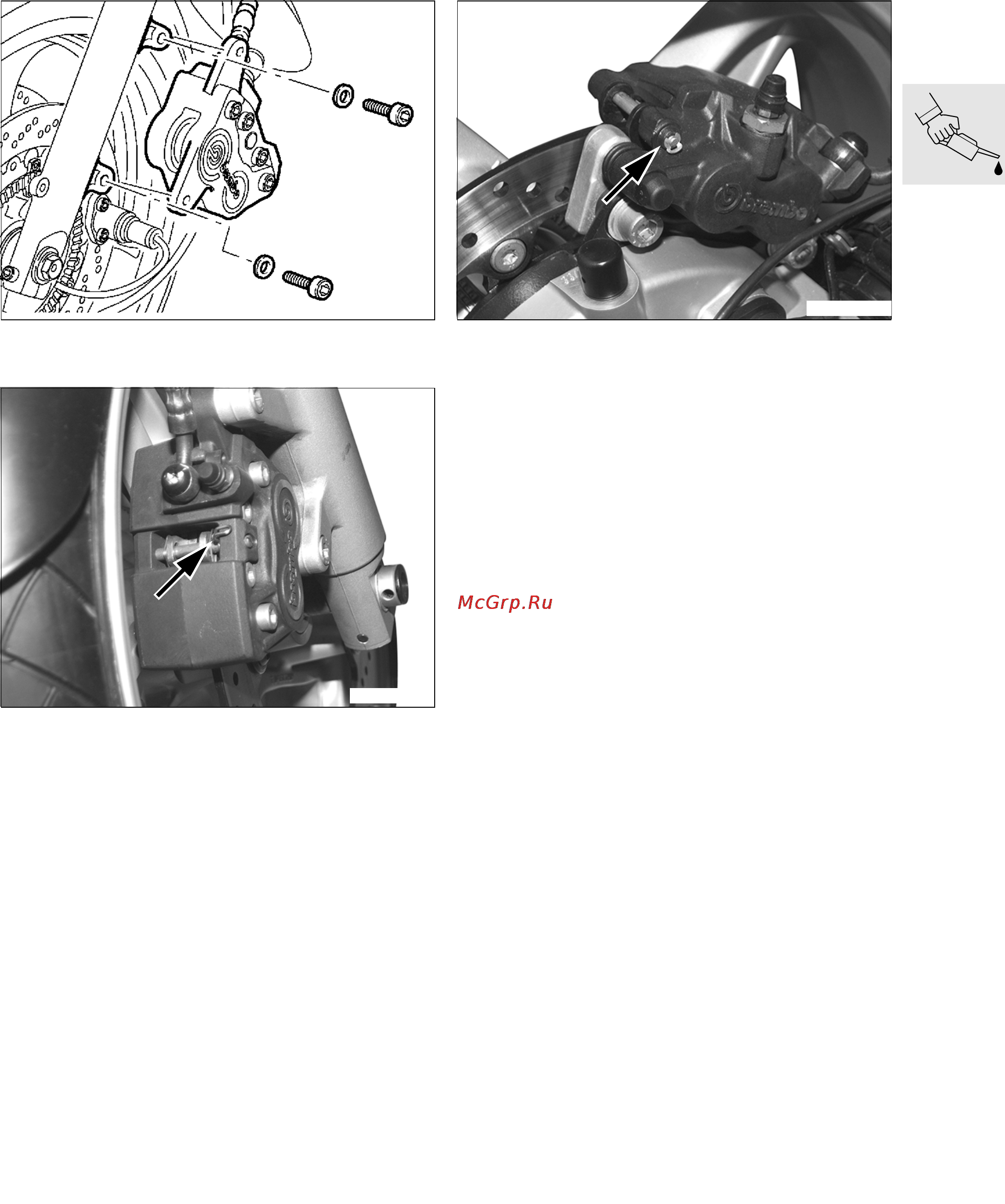

Replacing brake pads, front brake
•
Remove brake caliper.
•
Remove keeper (arrow) from retaining pin.
•
Drive out retaining pin.
•
Remove brake pads.
•
Installation is the reverse of the removal proce-
dure.
•
Before installing the brake caliper, force the pis-
tons fully back with resetting tool,
BMW No. 34 1 500.
X Tightening torque:
Brake caliper to fork slider tube.................... 40 Nm
Replacing brake pads, rear brake
•
Remove brake caliper.
•
Remove keeper (arrow) from retaining pin.
•
Drive the retaining pin out towards the wheel
side.
•
Remove brake pads.
•
Installation is the reverse of the removal proce-
dure.
•
Before installing the brake caliper, force the pis-
tons fully back.
X Tightening torque:
Brake caliper to rear wheel drive .................. 40 Nm
RS340021
S000170
S000180
