11.22

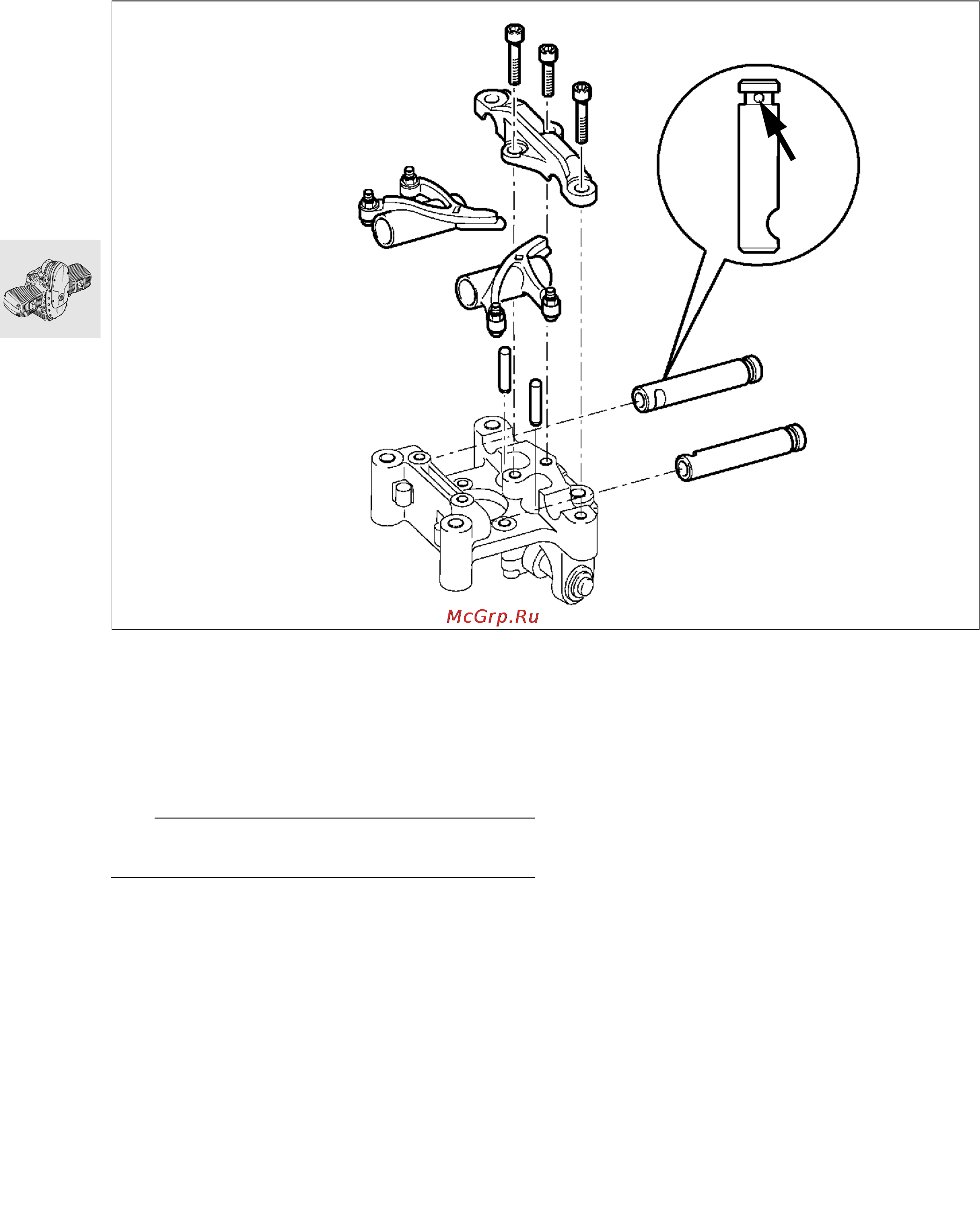

Disassembling/assembling valve gear
holder
•
Remove bearing cap.
•
Insert a suitable pin into the bore (arrow) of the
rocker shaft, and turn the shaft back and forth to
remove it from its bearing.
•
Remove pushrods.
e Caution:
Do not mix up the rocker shafts and pushrods.
RS110080
M8 x 40
M8 x 40
M8 x 30
