13.6

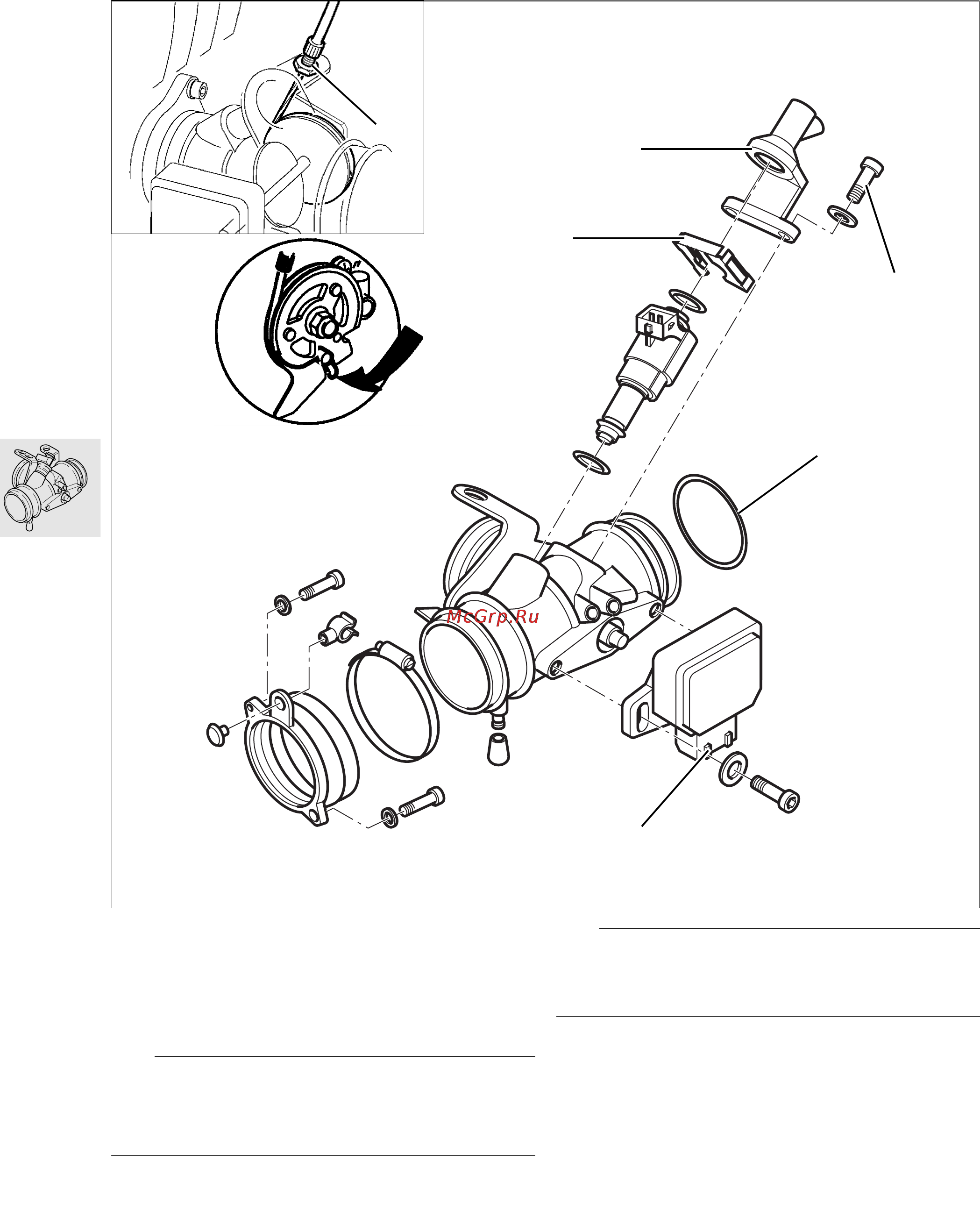

Removing and installing throttle-
valve stub pipe
•
Press in spring keeper of multi-pin plug for throt-
tle-valve potentiometer (1) and disconnect plug.
L Note:
Do not remove throttle-valve potentiometer unless
due for replacement (basic setting is necessary —
see Motronic diagnosis instructions).
•
Remove the keeper (2) and screws (3).
•
Remove holder (4) with fuel line.
•
Remove fuel injector, if necessary.
•
Slacken hose clamps.
•
Push intake neck into air filter box and remove
throttle-valve stub.
e Caution:
Make sure that O-ring (5) on throttle-valve stub is in
perfect condition.
•
Disengage throttle cables (6) from right and left
throttle-valve stubs.
•
Installation is the reverse of the removal proce-
dure.
Adjusting speed increase, idle speed and synchro-
nisation
a ....................................................See Group 00
1
S130020
3
5
6
4
2
