00.23
Replacing fuel filter
(Inspection III)
In normal operating conditions every 40 000 km
(24 000 miles); if fuel quality is poor every
20 000 km (12 000 miles)
•
Remove seat.
•
Remove left fairing side section, followed by right
fairing side section.
•
Disconnect air intake pipe from air filter box and
remove.
e Caution:
Fuel is flammable and a hazard to health. Observe
relevant safety regulations.
•

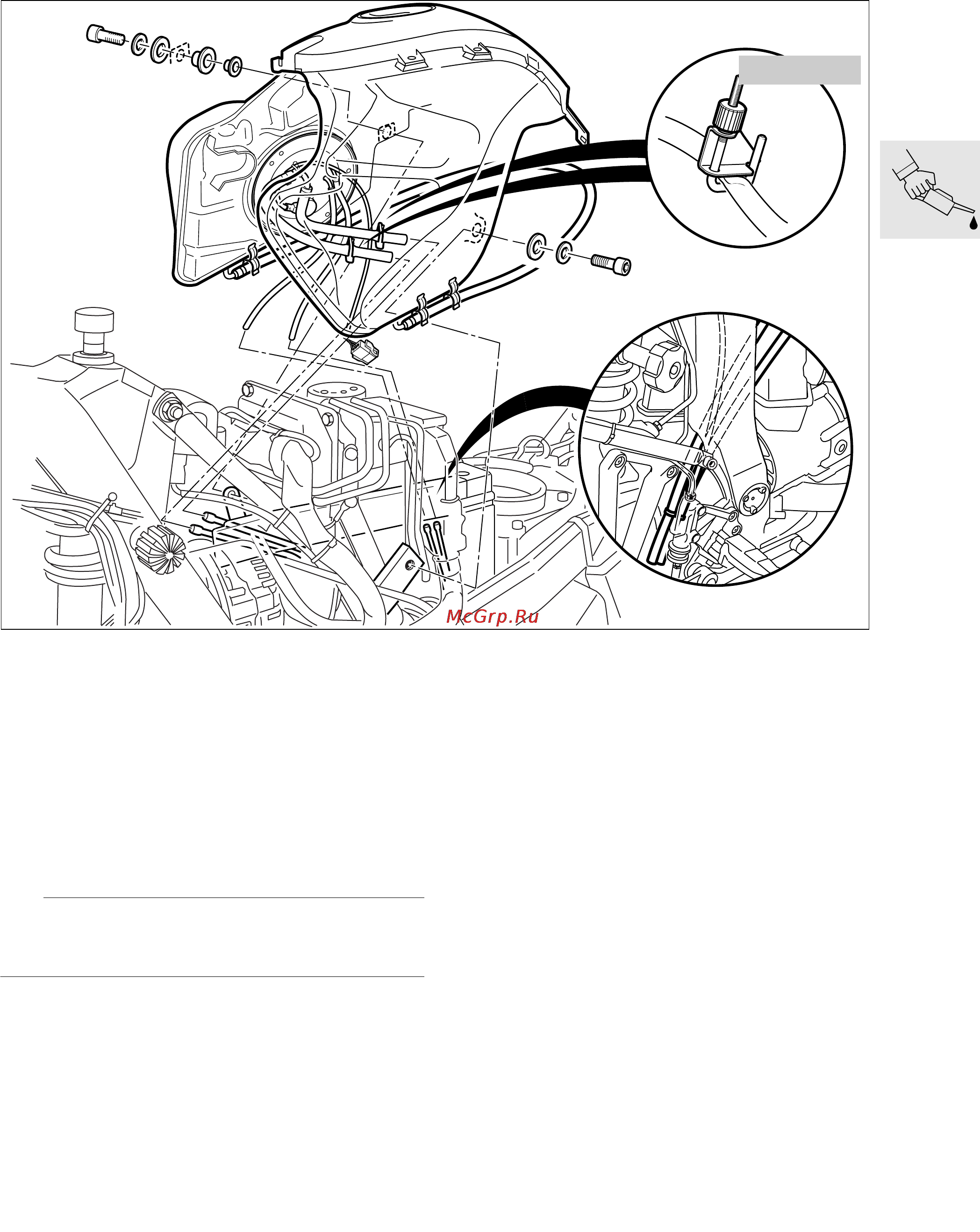

Disengage the fuel tank.
•
Seal the fuel feed and return lines with hose
clips, BMW No. 13 3 010, and disconnect.
•
Pull the plug connector off the fuel pump unit.
•
Remove the fuel tank.
S160010
13 3 010
