11.51

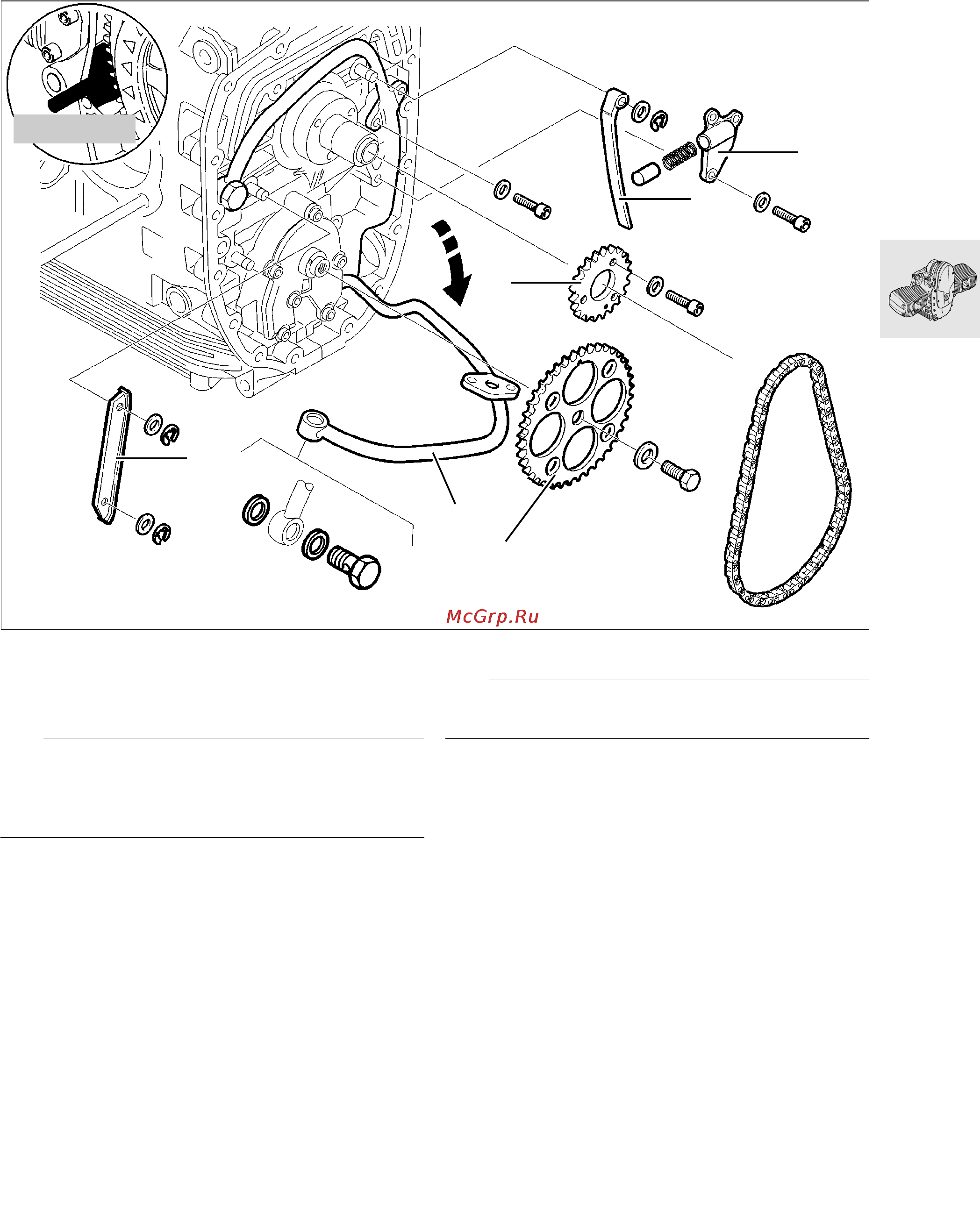

Installing auxiliary shaft drive
•
Align crankshaft mark with mark on auxiliary
shaft.
e Caution:
Adjust according to the adjusting instructions.
b ............................................ See Technical Data
•
Lock the clutch housing with special tool,
BMW No. 11 5 640.
•
Install chain sprocket (1).
X Tightening torque:
M 6 screw .................................................... 10 Nm
•
Install drive-shaft chain with chainwheel (2).
X Tightening torque:
Securing screw in chainwheel ...................... 70 Nm
•
Install and secure chain guide rail (3).
•
Install and secure chain tensioner rail (4).
•
Install chain tensioner housing (5) with piston and
spring.
X Tightening torque:
M 6 screw ...................................................... 9 Nm
•
Tighten down cooling oil line (6).
e Caution:
Use a new sealing ring.
X Tightening torque:
M 6 screw .................................................... 10 Nm
Banjo bolt for cooling oil line
with oil vent valve ......................................... 25 Nm
S110030
11 5 640
2
3
4
6
5
1
