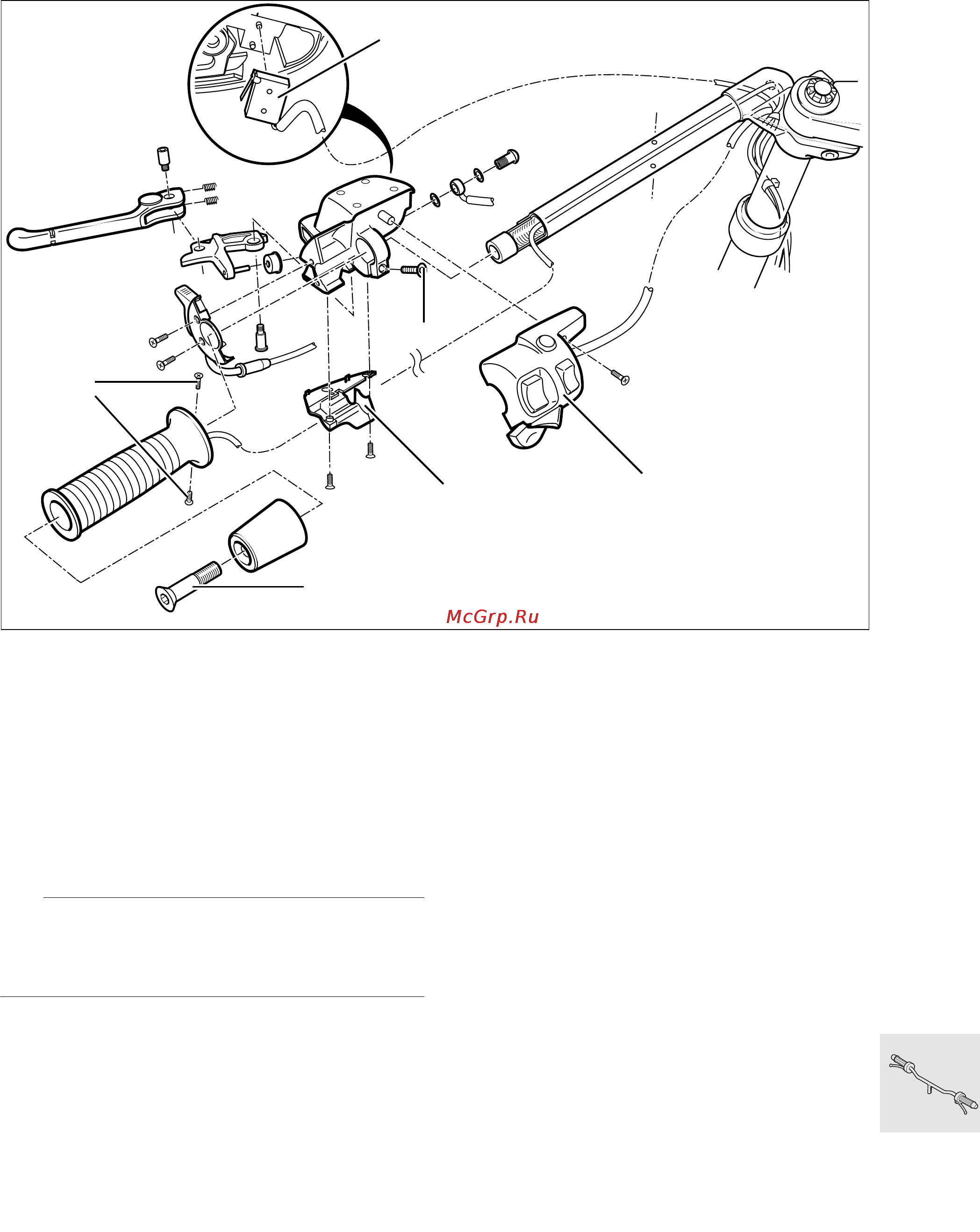

32.5
Removing and installing left
handlebar fitting
•
Remove securing screw (1) and remove handle-
bar weight.
•
Remove securing screws (2) of handlebar grip
and remove grip.
•
Detach lower section (3) of handlebar fitting.
•
Pull off clutch switch (4).
•
Remove the combination switch (5).
•
Drain the clutch operating system.
e Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
attacks paint.
•
Disconnect the clutch line.
•
Loosen the retaining screw (6) for the clutch fit-
ting and remove the fitting.
•
Disconnect plug for combination switch, if nec-
essary.
•
Disconnect plug for clutch switch, if necessary.
•
Installation is the reverse of the removal proce-
dure.
•
Align the clamp joint line with the punch mark on
the handlebar.
•
Fill and bleed the clutch operating system.
X Tightening torques:
Clutch line to clutch lever fitting ................... 18 Nm
S320010
