34.12
Adjusting front ABS sensor gap

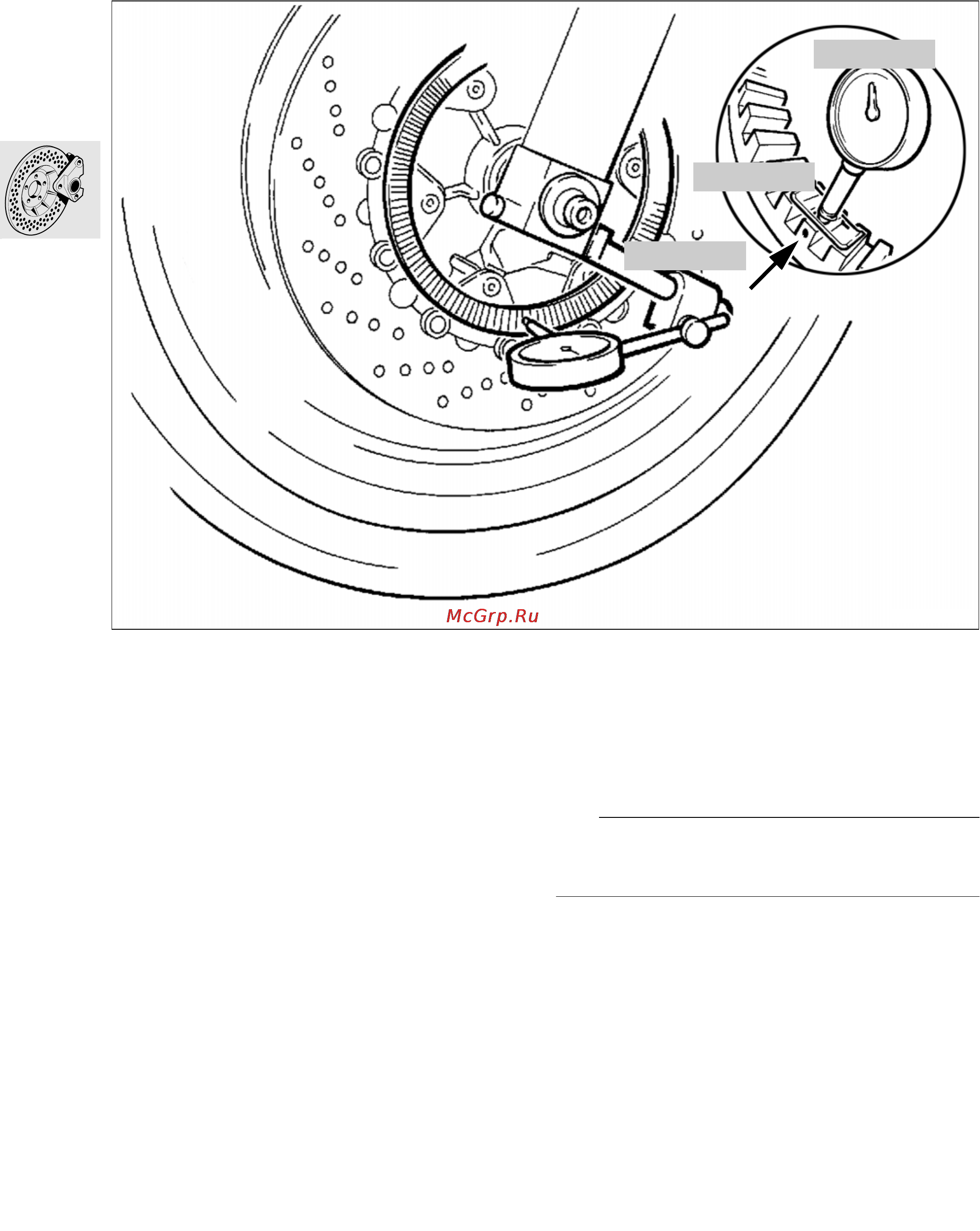

Marking sensor wheel
•
Take load off front wheel/lift clear of ground.
•
Secure the dial gauge holder,
BMW No. 00 2 500, with dial gauge,
BMW No. 00 2 510, and measuring shoe,
BMWNo.342510, to slider.
•
Zero the dial gauge.
•
Measure axial runout over the entire circumfer-
ence.
•
Using a touch-up marker, indelibly mark the
point where the sensor is farthest away from the
sensor ring (arrow).
Checking and adjusting sensor gap
•
Check/adjust at the marked point.
•
If necessary, remove/install sensor with
Torx T 25 and adjust sensor gap with shims.
Sensor gap:........ 0.45...0.55 mm (0.018...0.022 in)
e Caution:
After adjusting, rotate the wheel and check that the
sensor is clear at all times.
00 2 500
C340060
00 2 510
34 2 510
