BMW R1100S (1999) [67/302] Removing valve gear holder
![BMW R1100S (1999) [67/302] Removing valve gear holder](/views2/1121020/page67/bg43.png)
11.21

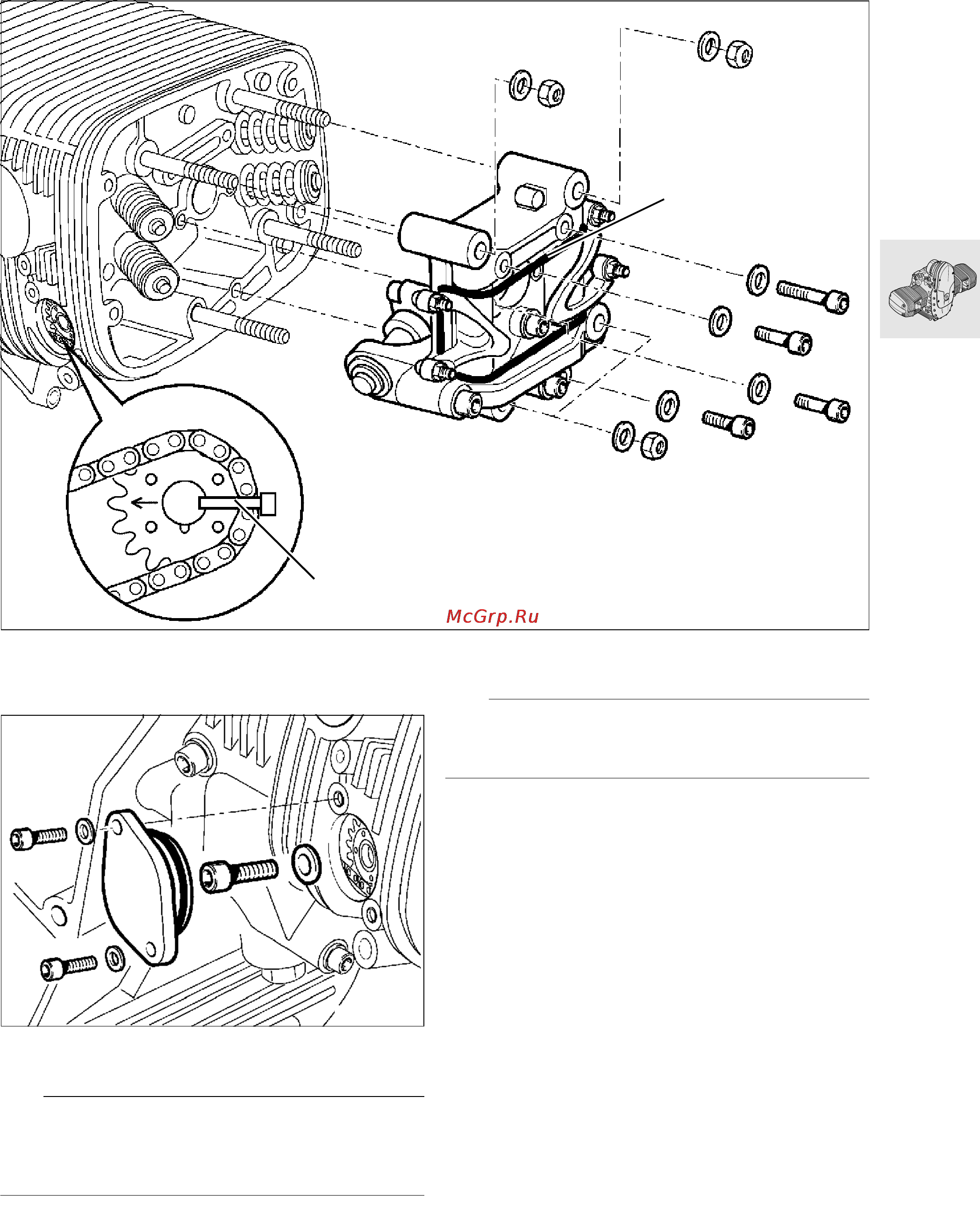

Removing valve gear holder
•
Remove camshaft sprocket cover.
•
Remove/pull off camshaft sprocket.
L Note:
If the camshaft sprocket (1) is not removed after
loosening, it must be held firmly and prevented from
falling into the engine block (e.g. with a cable strap).
•
Remove valve gear holder.
•
Secure rockers with a rubber band (2).
L Note:
If no work is carried out on the valve gear holder, re-
move it together with the cylinder head.
S110110
M6 x 60
M6 x 30
M6 x 30
M6 x 30
2
1
RS110051
