BMW R1100S (1999) [227/302] Removing and installing rear abs sensor
![BMW R1100S (1999) [227/302] Removing and installing rear abs sensor](/views2/1121020/page227/bge3.png)
34.13

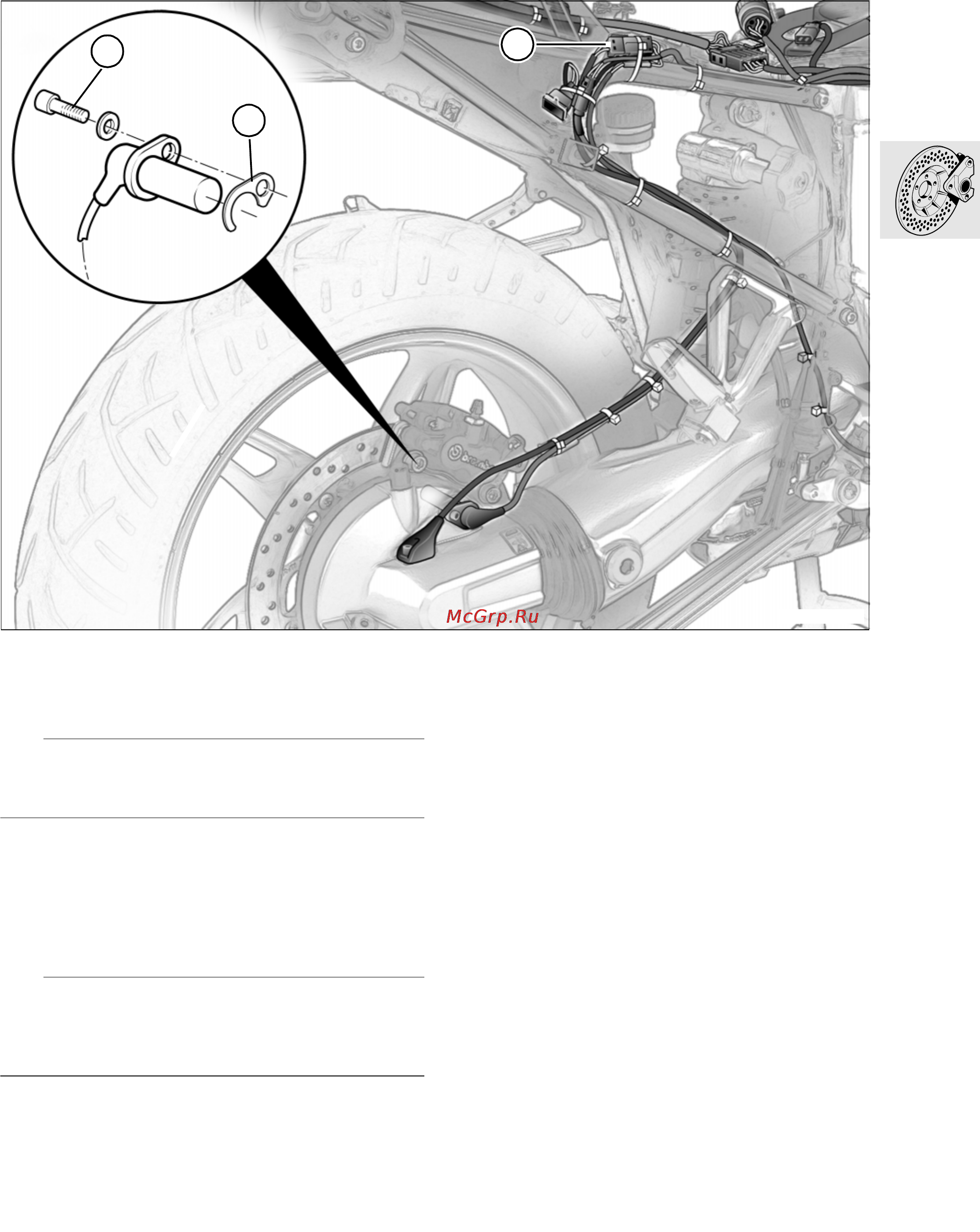

Removing and installing rear ABS
sensor
L Note:
When installing shims pull the sensor out only very
slightly and pull the shims up and out.
•
Before removing/installing, clean the sensor
bore.
•
Using Torx T 25, slacken sensor (1).
•
Disconnect plug (2) of sensor cable.
•
Installation is the reverse of the removal proce-
dure.
•
Coat O-rings with oil before installing.
e Caution:
Route the sensor cable correctly.
Check sensor gap and adjust if necessary with
shims (3).
Sensor gap:........ 0.45...0.55 mm (0.018...0.022 in)
X Tightening torque:
Sensor ...........................................handtight, 4 Nm
S340040
3
1
2
