18.3
18

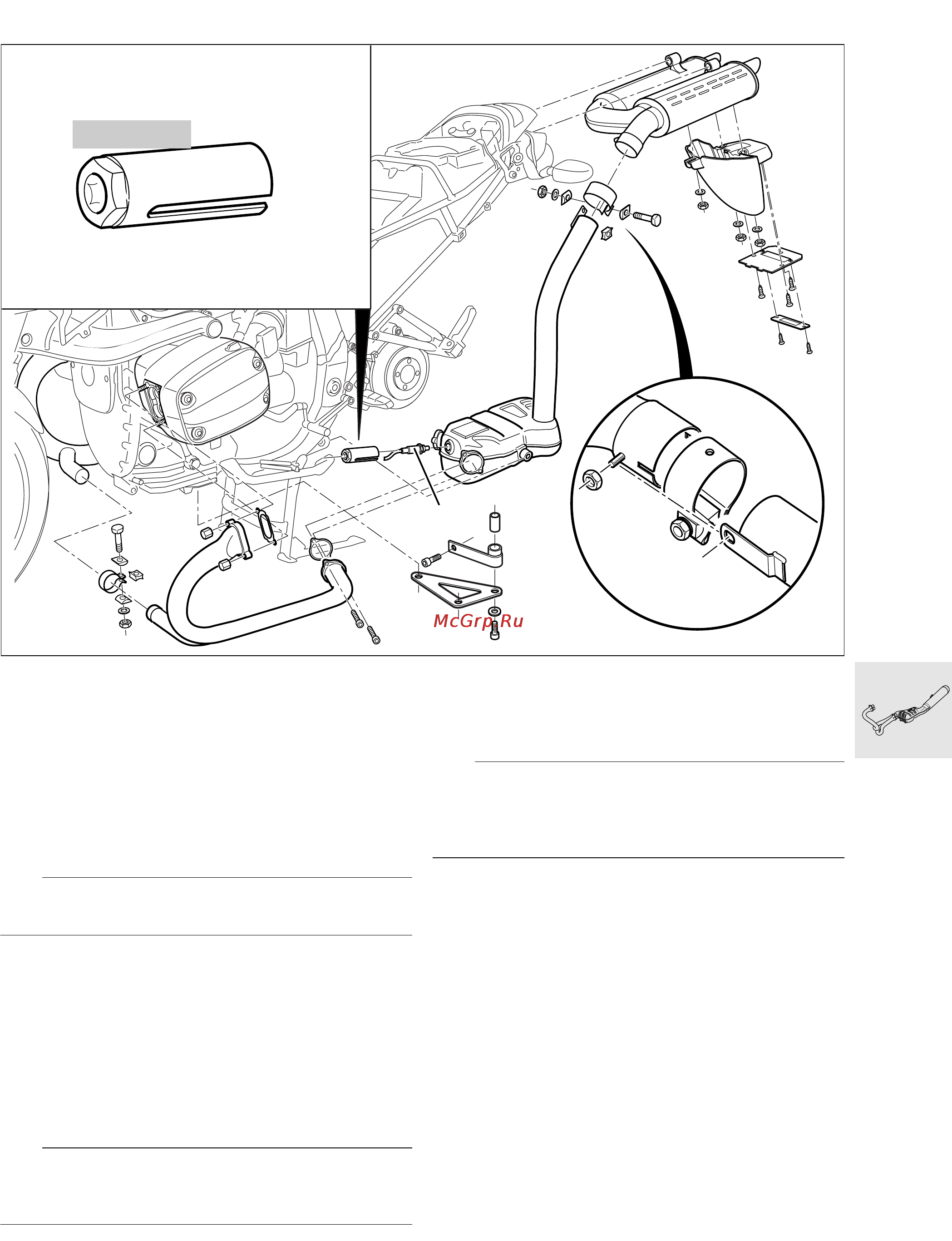

Removing and installing exhaust
system
Removing and installing silencer
(muffler)
•
Disengage fuel tank and pull to the rear.
•
Disconnect the oxygen-sensor plug and remove
the cable holders.
e Caution:
Do not pull the oxygen sensor cable.
•
Remove the carrier plate for the number-plate
light.
•
Disconnect the cable.
•
Remove number plate bracket.
•
Remove the nut securing the metal tab of the
pipe clamp securing the rear silencer and bend
back the metal tab.
•
Release the clamp securing the rear silencer to
the front silencer.
•
Remove rear silencer
L Note:
Tap gently with a plastic-headed hammer and pull
the silencer down and to the rear to remove.
•
Disconnect manifolds from front silencer.
•
Remove holder of front silencer.
•
Push front silencer out of mounts on left and
right.
•
Remove oxygen sensor (1).
•
Installation is the reverse of the removal proce-
dure.
•
Secure the oxygen sensor with special socket
wrench insert, BMW No. 11 7 020.
e Caution:
After a trial run, read out Motronic fault memory.
Note routing of cable for oxygen sensor.
Always install new seals.
X Tightening torque:
Clip at silencer (muffler)
(coat clip contact face with Never Seez)....... 55 Nm
Oxygen sensor
(coat thread with Never Seez)....................... 45 Nm
Removing and installing exhaust
manifolds
•
Remove screws securing manifold to front si-
lencer.
•
Remove screws securing manifold to cylinder
head.
•
Release manifold union.
•
Remove manifold.
X Tightening torque:
Exhaust manifold to cylinder head................ 21 Nm
Clamp at connecting pipe
(coat clamp contact face with Never Seez)... 45 Nm
Exhaust manifold to front silencer ................ 12 Nm
S180010
1
11 7 020
