11.49
Installing clutch housing
e Caution:
Always use new screws for housing and cover.
•

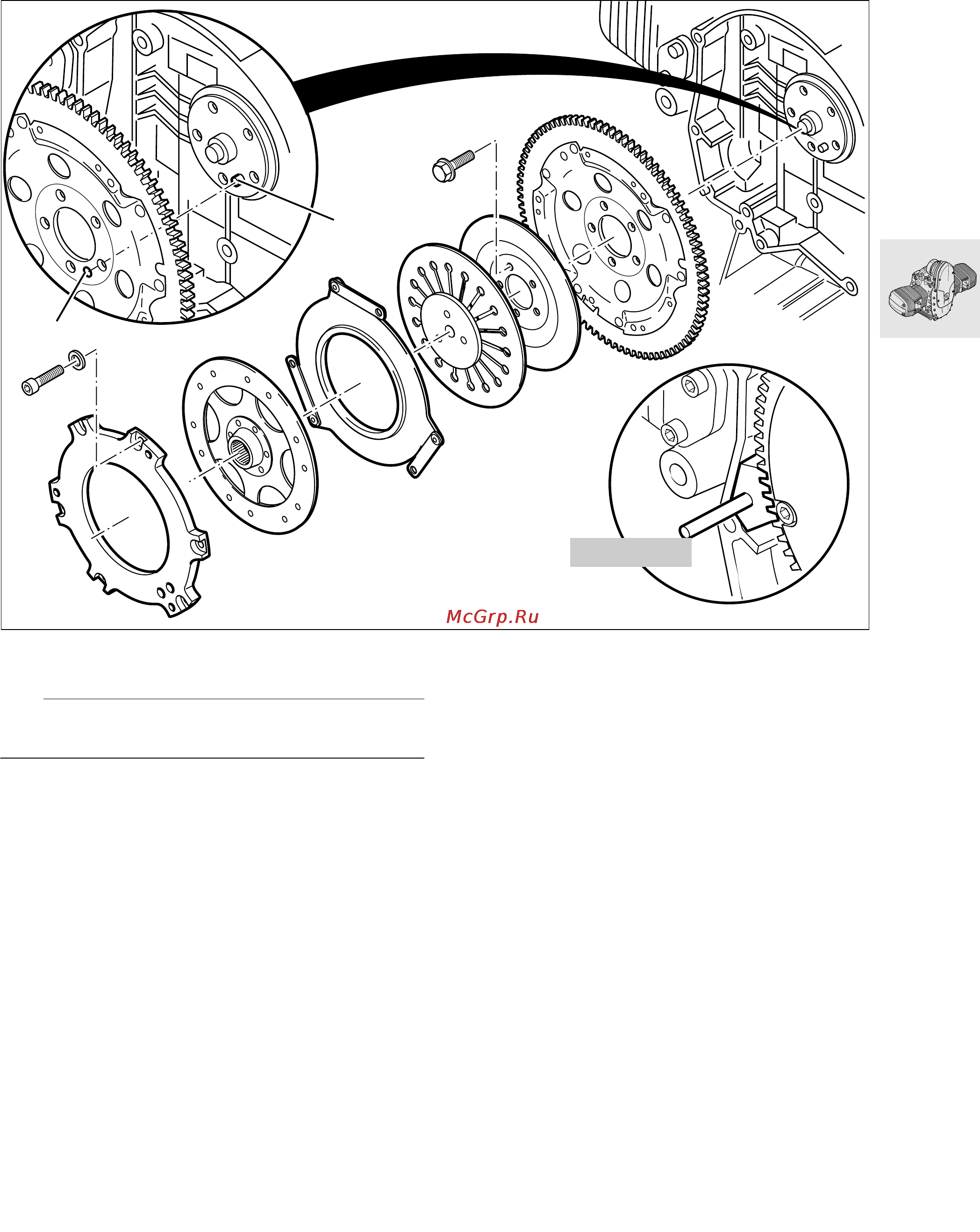

Install clutch housing with mark (1) aligned with
crankshaft mark (2).
•
Lock the clutch housing with special tool,
BMW No. 11 5 640.
•
Insert all screws by hand and tighten down.
X Tightening torque:
Clutch housing to crankshaft
(screw threads oiled) ................................... 40 Nm
Wrench angle.................................................... 32°
S210010
11 5 640
2
1
