13.7
Removing and installing
throttle-valve potentiometer
•
Press in spring keeper of multi-pin plug for throt-
tle-valve potentiometer (1) and disconnect plug.
L Note:
Do not remove throttle-valve potentiometer unless
due for replacement (basic setting is necessary —
see Motronic diagnosis instructions).
•
Remove the throttle-valve potentiometer.
•
Adjust throttle-valve potentiometer with
BMW MoDiTeC after installing.
•
Mark screws with a paint spot.

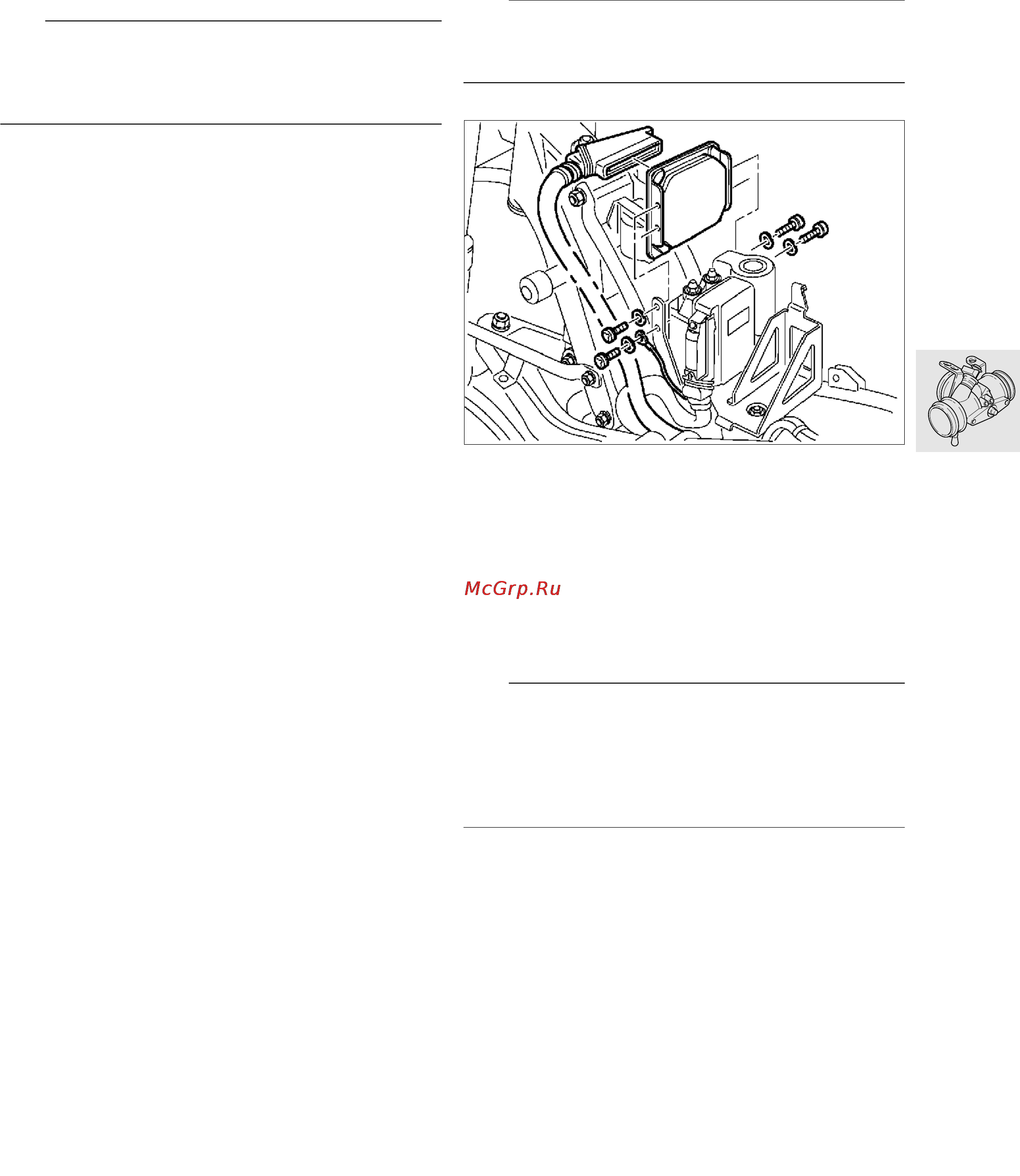

Removing and installing Motronic
control unit
•
Remove fuel tank.
e Caution:
Switch off ignition; disconnect earth (ground) lead
from battery and insulate it.
•
Disconnect plug from Hall sensor.
•
Disconnect plug for engine-oil temperature.
•
Remove Motronic control unit.
•
Remove connector strip.
•
Installation is the reverse of the removal proce-
dure.
•
Switch on the ignition.
•
Without starting the engine, fully open the throttle
once or twice so that the Motronic control unit
can register the throttle-valve positions.
L Note:
Disconnecting the battery deletes all entries (e.g.
faults, settings) stored in the Motronic control unit’s
memory.
Loss of settings can temporarily impair the operat-
ing characteristics when the engine is restarted.
