62.5

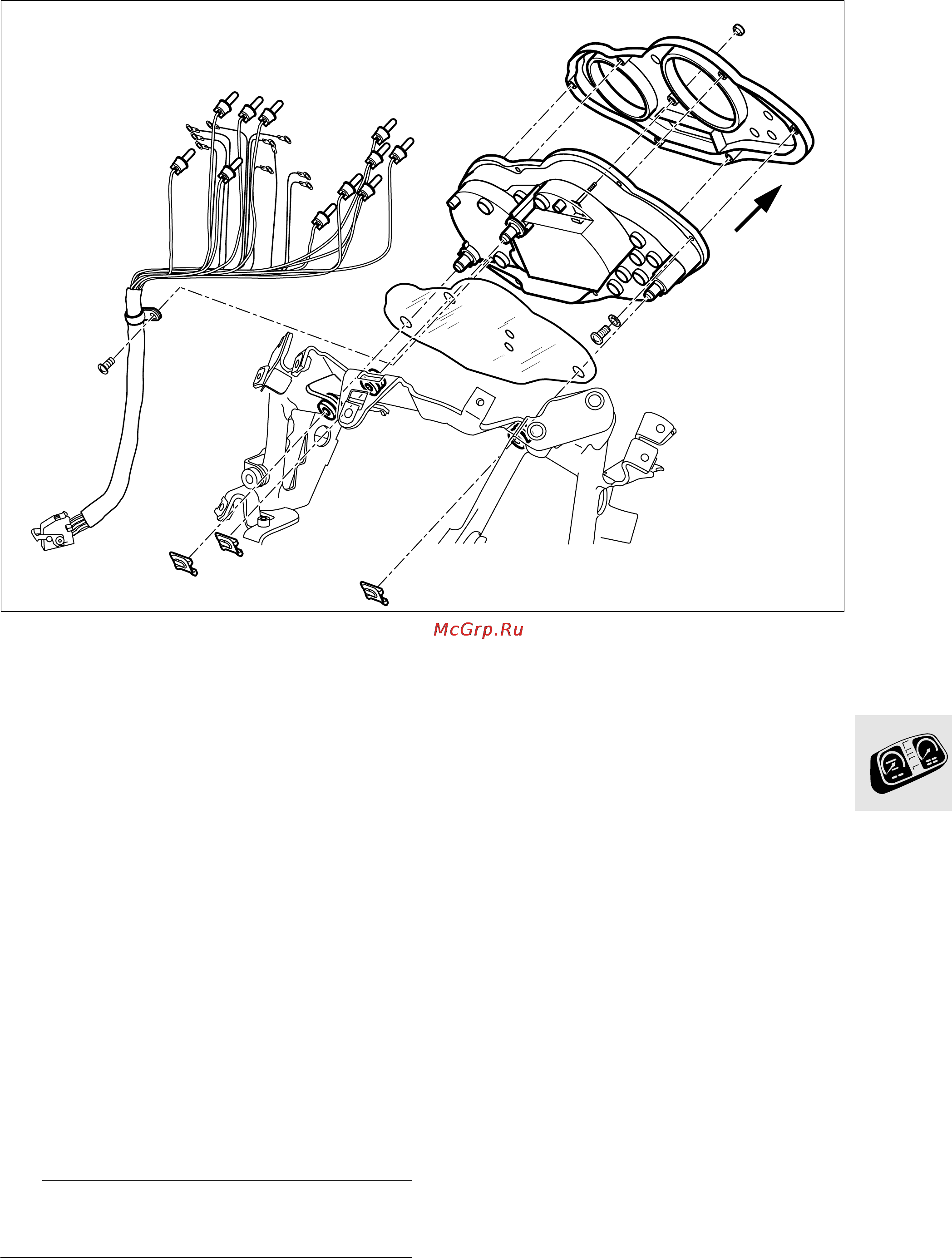

Removing and installing instrument
panel
•
Remove side panels.
•
Remove mirrors.
•
Remove fairing.
•
Open electrics box on right.
•
Disconnect plug of instrument panel.
•
Remove fuses from instrument panel.
•
Remove instrument panel.
•
Installation is the reverse of the removal proce-
dure.
Disassembling and assembling
instrument panel
•
Remove foil.
•
Remove screws securing bottom of housing to
top.
•
Remove cap from reset knob for tripmeter.
•
Remove top of housing.
•
Remove rev. counter, speedometer and/or
clock.
•
Remove bulbs.
•
Assembly is the reverse of the disassembly pro-
cedure.
e Caution:
When reassembling, make sure that gasket is cor-
rectly seated.
S620010
