23.20

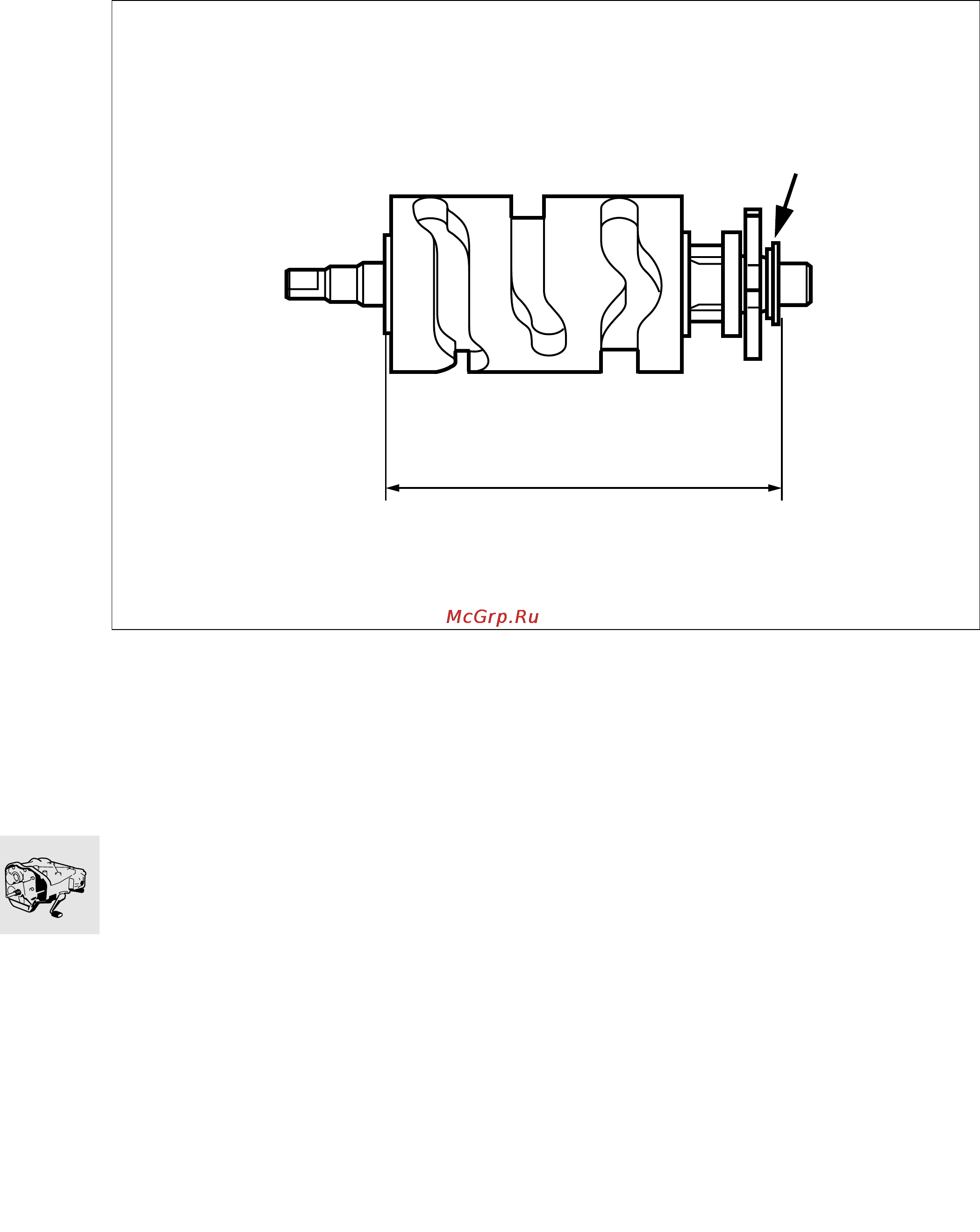

Checking/adjusting fully assembled length of
selector drum
•
Place spacing washer and both thrust washers
on the selector drum.
•
Using slide gauge, determine fully assembled
length “A”.
•
If necessary, adjust fully assembled length “A”
with a shim washer (arrow).
Fully assembled length:
Selector
drum ..........111.80…111.90 mm (4.402…4.406 in)
KR230190
A
