46.11

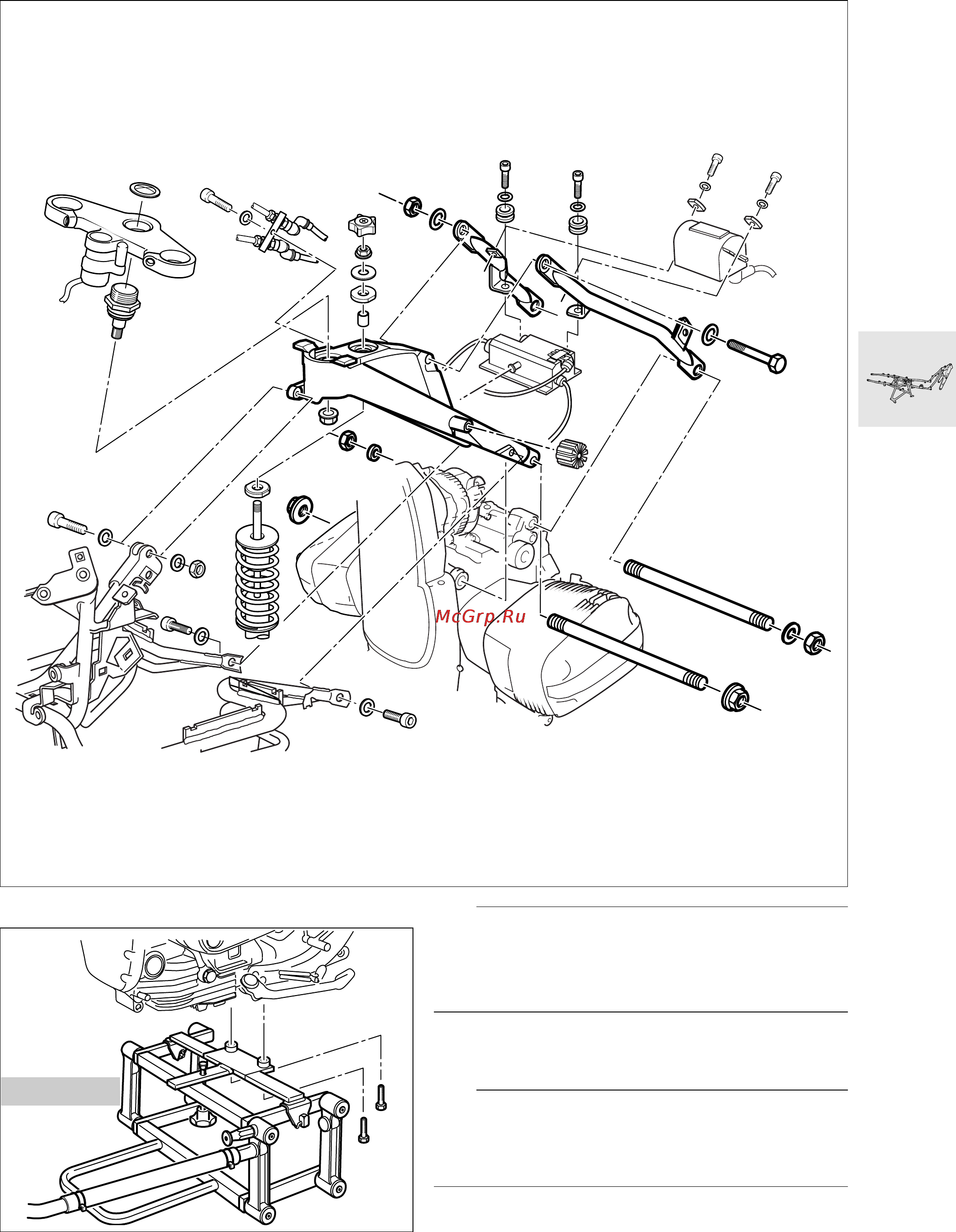

Removing and installing front frame
•
Secure stand with overlength bushes,
BMW No. 00 1 520/529, to motorcycle.
•
Drain the front brake system.
e Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
attacks paint.
•
Remove seat.
•
Remove side panels.
•
Remove fuel tank.
e Caution:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove the horn.
•
Remove suspension strut.
•
Remove brake line retainer.
•
Heat leading link mount at front to max. 120 °C
(248 °F) and unscrew.
•
Release clamp securing fixed tube to upper fork
bridge.
S460060
S110010
00 1 520
