BMW R1100S (1999) [264/302] Removing and installing frame tail section
![BMW R1100S (1999) [264/302] Removing and installing frame tail section](/views2/1121020/page264/bg108.png)
46.16

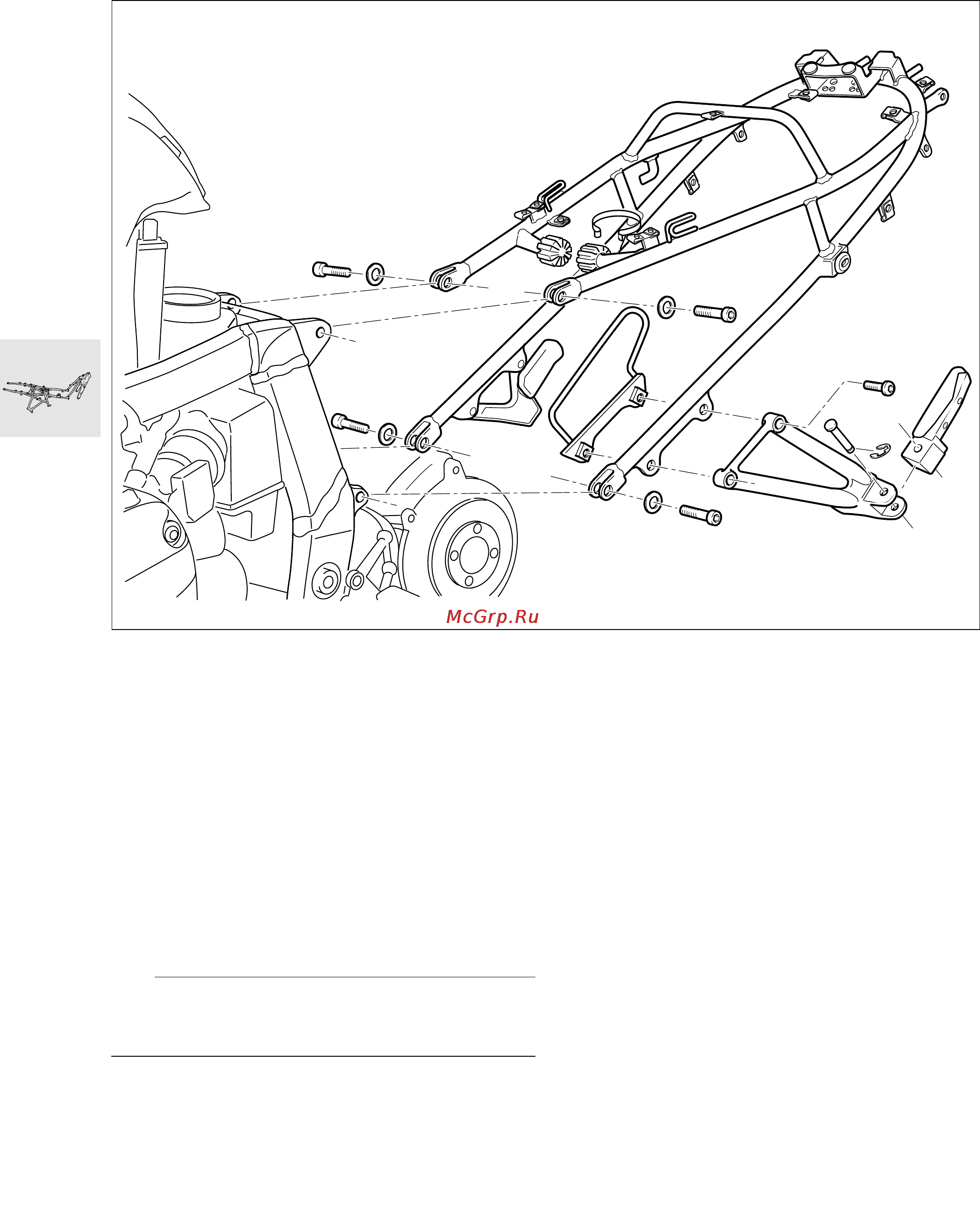

Removing and installing frame tail
section
•
Remove seat.
•
Remove tail-section panels.
•
Remove the carrier plate for the number-plate
light.
•
Disconnect the cable.
•
Remove number plate bracket.
•
Remove cable.
•
Remove the nut securing the metal tab of the
pipe clamp securing the rear silencer and bend
back the metal tab.
•
Slacken pipe clamp.
•
Remove rear silencer.
L Note:
Tap gently with a plastic-headed hammer and pull
the silencer down and to the rear to remove.
•
Remove brake fluid reservoir from its holder.
•
Disconnect plug for brake light.
•
Disconnect plug for speedometer.
•
[ABS] Disconnect plug of sensor cable.
•
Disconnect brake line at adapter in frame tail
section.
•
Disconnect plug of rear wiring harness.
•
Remove rear screws securing the side panel.
•
Push the side panel slightly to one side.
•
Remove the securing screws and remove the
rear frame.
•
Remove frame-mounted components, if applica-
ble.
•
Installation is the reverse of the removal proce-
dure.
X Tightening torques:
Frame tail section to main frame .................. 31 Nm
Pillion footrest holder to rear frame............... 21 Nm
S460080
