BMW R1100S (1999) [160/302] Disassembling assembling input shaft
![BMW R1100S (1999) [160/302] Disassembling assembling input shaft](/views2/1121020/page160/bga0.png)
23.12

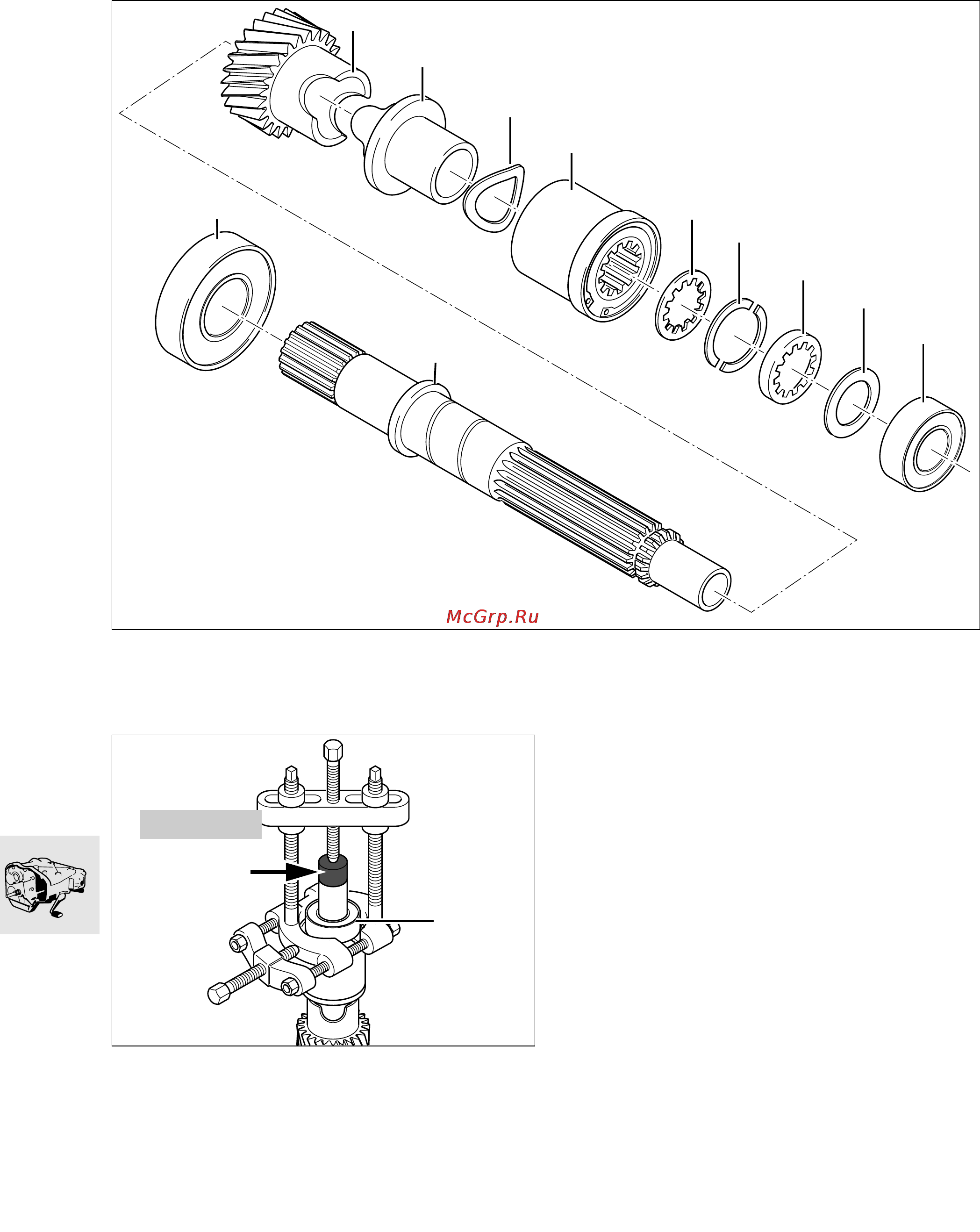

Disassembling/assembling input shaft
Disassembling input shaft
•
Clamp the input shaft into a vise with soft jaws.
•
Use universal puller, BMW No. 00 7 500, and
pressure head (arrow) to pull off grooved ball
bearing (9) with spacing washer (8).
•
Note the thickness of spacing washer (8).
•
Remove guide ring (7).
•
Compress spring cluster (4) and remove split
segment washer (6).
•
Remove backup washer (5), spring cluster (4),
anti-rattle disc (3), thrust block (2) and constant-
speed gear (1).
•
Clamp input shaft (10) other way round in vise.
•
Use universal puller, BMW No. 00 7 500, and
pressure head (arrow) to pull off grooved ball
bearing (11).
11
10
KR230081
9
8
7
6
5
4
3
2
1
00 7 500
KR230090
9
