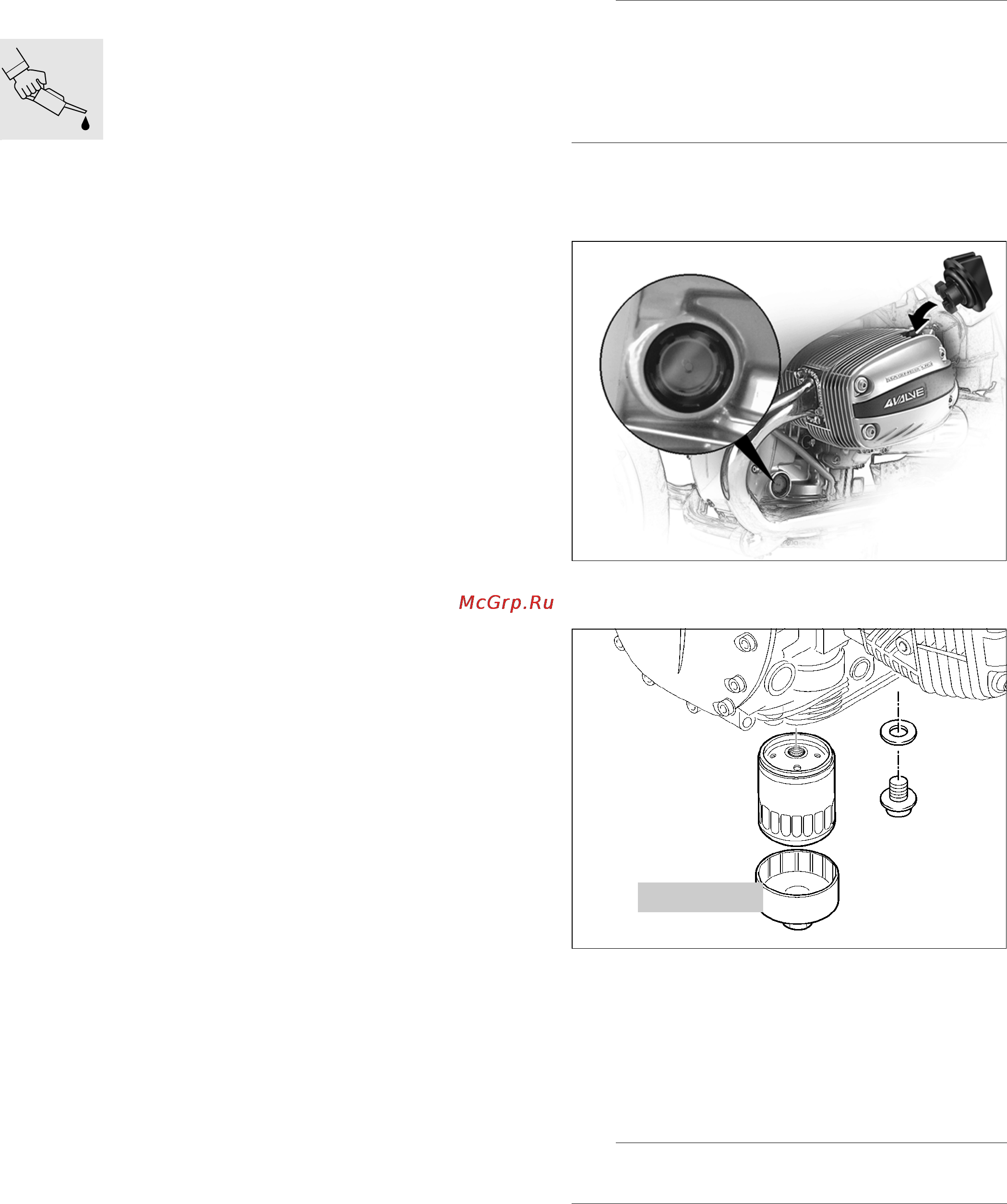

00.20
Maintenance
Key to maintenance intervals
– BMW Inspection 1000 km/600 miles I
– BMW Service II
– BMW Inspection III
– BMW Annual Service IV
Reading out MoDiTeC fault memory
(Inspections I, II, III and IV)
•
Remove seat.
•
Connect the BMW MoDiTeC to the diagnosis
connector.
•
Read out the fault memory.
•
Perform all requisite repair work.
Changing engine oil, replacing oil
filter element
(Inspections I, II, III and IV)
L Note:
If the motorcycle is ridden only for short distances or
outside temperatures are below 0°C (32°F): change
the oil and replace the oil filter element every
3 months or no later than every 3 000 km
(1 800 miles).
•
Use the auxiliary stand, BMWNo.001560, if
necessary.
•
Change the oil at operating temperature.
•
Remove screw plug.
•
Remove oil drain plug and drain off oil.
•
Fit new seal and screw in drain plug.
•
Use oil filter wrench, BMW No. 11 4 650, to re-
move the oil filter.
•
Coat sealing ring on new oil filter element with oil
and install filter.
•
Refill with oil to correct level.
•
Insert and tighten the screw plug.
e Caution:
Never top up the engine oil level past the MAX mark.
X Tightening torque:
Oil filter......................................................... 11 Nm
Oil drain plug................................................ 32 Nm
S000040
11 4 650
C000030
