32.6
Removing and installing right
handlebar fitting
•

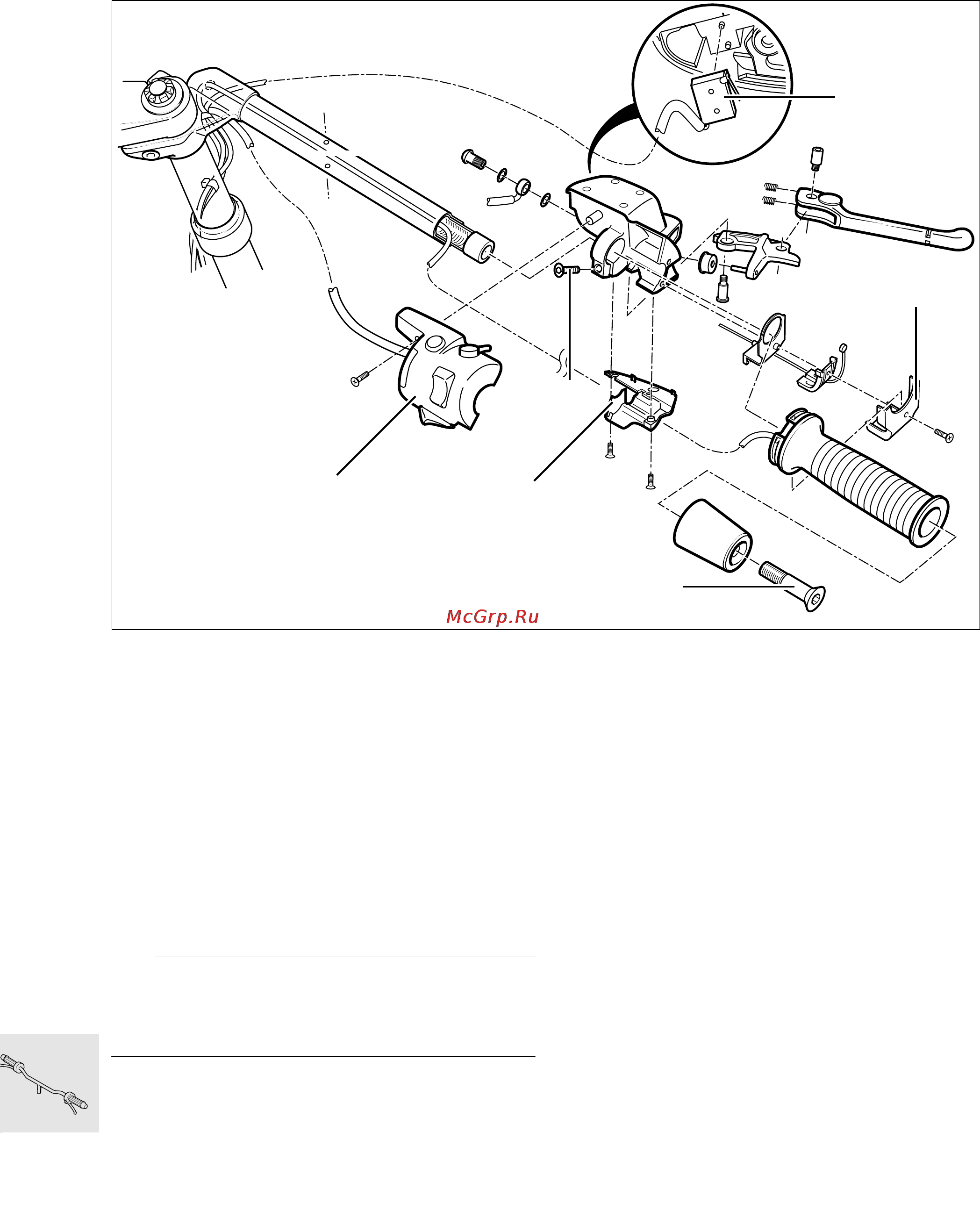

Remove securing screw (1) and remove handle-
bar weight.
•
Remove throttle twistgrip cover (2).
•
Back off the adjuster screw for the throttle cable
and disengage the Bowden cable.
•
Pull off the throttle twistgrip.
•
Remove the lower section (3) of the brake lever
fitting.
•
Pull off the brake light switch (4).
•
Remove the combination switch (5).
•
Drain fluid from brake system.
e Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
attacks paint.
•
Disconnect the brake line.
•
Loosen the retaining screw for the brake lever fit-
ting (6) and remove the fitting.
•
Disconnect plug for combination switch, if nec-
essary.
•
Disconnect plug for brake-light switch, if neces-
sary.
•
Installation is the reverse of the removal proce-
dure.
•
Align the clamp joint line with the punch mark on
the handlebar.
•
Fill and bleed the brake system.
X Tightening torques:
Brake hose to brake lever fitting................... 18 Nm
S320020
